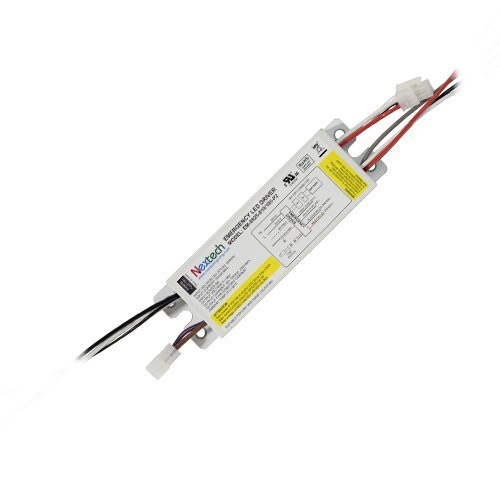

16W-L/EM-25 Slim Combo

    NEXTECH™ Integrated Install Slim Emergency 90-min 16W Battery Backup and 25W Driver Combo, 1500mAH, 9.6V, 24 hr Recharge (120-277V)

    In stock

    • INTEGRATED – The 16W-L/EM-25 Slim Combo is a slim 90-min backup battery and driver combo for integrated installation with LED Luminaires.
    • Includes Programmable Constant Current.
    • Open Circuit and Short Circuit Protection.
    • No PCBs
    • Sound Rated A
    • 5 year /50000 hour warranty, and listed with all applicable bodies for safety and performance.

    SPEC SHEET | MORE FILES

    Model: 16W-L/EM-25 Slim Combo Categories: ,

    Specifications

    Additional information

    Energy DataInput Voltage: 90-305V
    Input Current: 100mA Max
    Input Frequency: 50/60 Hz
    Recharge Power: 16W Max
    Standby Power: <0.5W
    Recharge Time: 48 Hours Max
    Time to Light: 0.3 Seconds Detection Emergency
    Output Current: 100 ~ 1050mA
    Wattage: 25W Max
    Power Factor: 0.6
    Operating Temperature: 50°F ~ 122°F (10°C ~ 50°C)
    Battery Capacity: 6Ah
    Physical DataBattery Type: LiFePO4 9.6V
    Red Lead: 3A, 90V
    White /Black Lead: 100W Max
    Warranty: 5yr/50K
