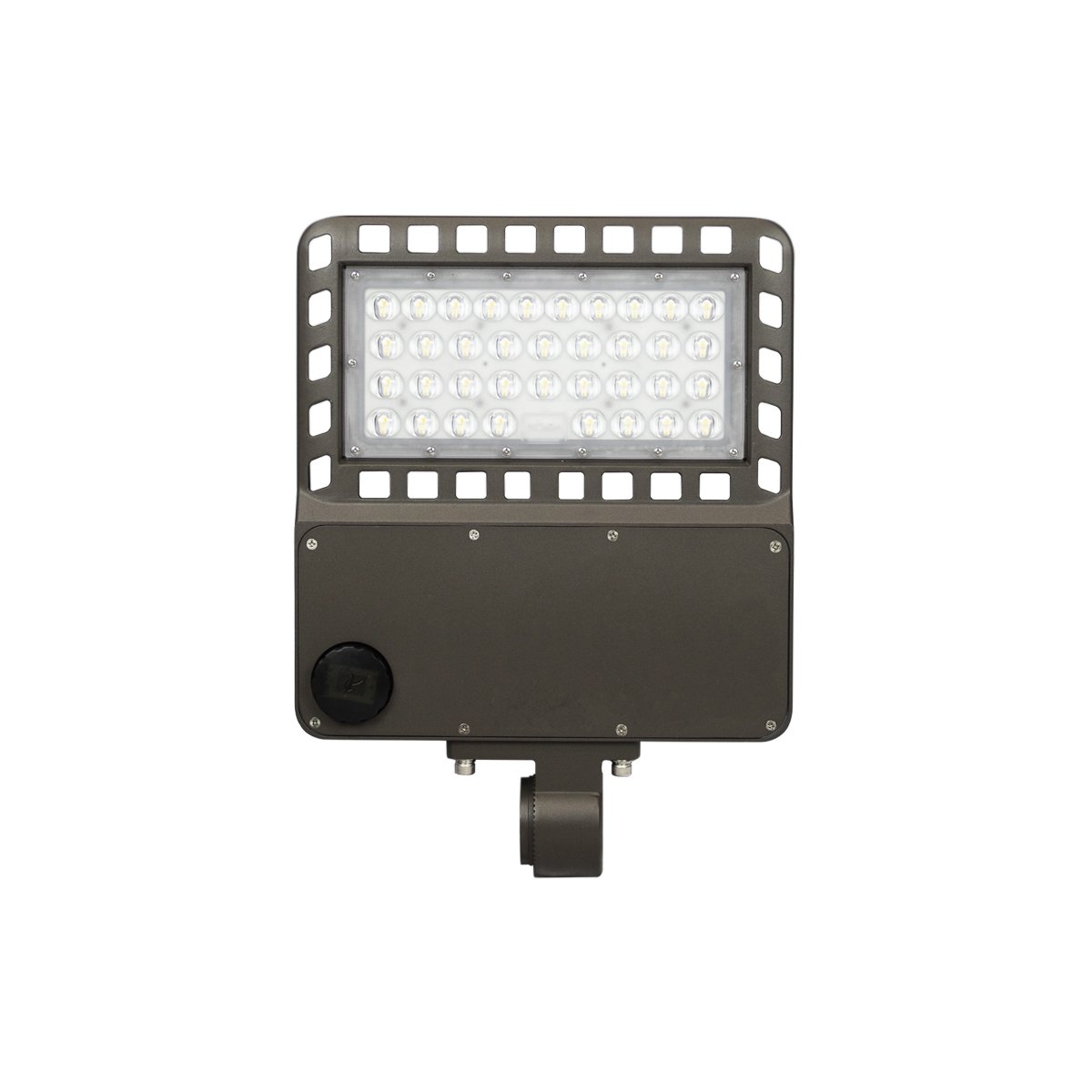

ETH-A02-100W-HY

    M G2 SERIES - LED Area Light, 100W, 170 lm/W, IP67 Wet Location, 0-10V Dimmable, Premium Outdoor Luminaire with Smart Technology. (120-277V)

    In stock

    • The ETH-A02-100W-HY is an industry-leading 100W LED Area Light luminaire producing 170 lumens per watt.
    • Optional Slip-Fit Mount, Adjustable Round /Square Pole Mount, and Trunnion Mount available in dark bronze.
    • Rated IP67 Wet Location and designed with multiple heat-sinks for maximum heat dissipation.
    • Anti-UV Clear Type III Polycarbonate Lens for even light transmission and to prevent discoloration.
    • Optional Type IV, Type V beam spread lens, and Glare Shield available.
    • Available with Photocell, Bi-Level Dimming, and Sensor Program Remote options.
    • 7 year /75000 hour warranty, and listed with all applicable bodies for safety and performance to qualify for energy-efficient LED lighting rebates.

    SPEC SHEET | MORE FILES

    Model: ETH-A02-100W-HY Categories: , Tag:

    Applications

    Premium outdoor luminaire suitable for parking areas, auto dealerships, industrial yards, building exteriors, roadways, alleys, and pedestrian walkways.

    Construction

    Manufactured for weather-proof durability using solid heavy duty die cast aluminum housing with anti-UV polyester coating to resist water, salt, corrosion, discoloration, and scratching. IP67 Wet Location rated for dust-tight, temporary immersion: IEC 60529. Impact Protection IK10, 20 joules: IEC 62262:2002. NSS, Neutral Salt Spray Rating Grade 9, 0<A≤1%: ASTM B117-2018/ASTM D1654-05. Vibration Acceleration Rating 3g: IEC 6008-2-6:1995.

    Electrical

    Input voltages 120-277Vwith 0-10V Continuous Dimming. Operating temperatures -4°F to 122°F (-20°C to 50°C). Surge Protection Rating 3kV-6.6kV: L-N, 5kV-10kV: L-PE/N-PE: IEC 61000-4-5. Twist-lock cap with Remote Control.
    Shorting Cap for manual switch or timer control.

    Mounting

    Adjustable options include Slip-Fit, Round /Square Pole, and Trunnion Mounts.

    Optics

    Anti-UV Clear Polycarbonate IES /NEMA Type III Lens standard. Type II, Type IV, Type V Lens, and Glare Shield available.

    Controls

    PIR Photocell, PIR /Microwave Bi-Level Dimming, and Motion Detection programmable twist-lock cap with Remote Control. Shorting Cap for manual switch or timer control.

    Listings

    UL certified to meet US and Canadian standards. FCC, CE and RoHS compliant. Listed to qualify for energy-efficient LED lighting rebates.

    Warranty

    7 yr /75K hrs

    Available Color Temperatures

    4000K

    4000K

    5000K

    5000K

    Mounting Options

    Slip-Fit Mount, Adjustable

    Square /Round Pole Mount, Adjustable

    Trunnion Mount, Adjustable

    Optional Controls & Sensors

      Tenon Mounts and Adapters

      4SQR-SP-D

      2-3/8-inch O.D. Tenon Adapter for 4-inch Round Pole Top

      5SQR-SP-D

      2-3/8-inch O.D. Tenon Adapter for 5-inch Round Pole Top

      4SQ-SP-D

      2-3/8-inch O.D. Tenon Adapter for 4-inch Square Pole Top

      5SQ-SP-D

      2-3/8-inch O.D. Tenon Adapter for 5-inch Square Pole Top

      SP-TR-D

      2-3/8-inch O.D. Tenon Adapter for Yoke Mount

      SQ-SP-D

      2-3/8-inch O.D. Tenon Adapter, Single Horizontal for Square Pole Side

      WM-SP-D

      2-3/8-inch O.D. Tenon Adapter, Single Horizontal, 90 Degree Wall Mount Bracket

      R60-SP2-90-D

      2-3/8-inch O.D. Tenon Adapter, Double Horizontal, 90 Degree

      R60-SP2-180-D

      2-3/8-inch O.D. Tenon Adapter, Double Horizontal, 180 Degree

      R60-SP3-90-D

      2-3/8-inch O.D. Tenon Adapter, Triple Horizontal, 90 Degree

      R60-SP3-120

      2-3/8-inch O.D. Tenon Adapter, Triple Horizontal, 120 Degree

      R60-SP4-90-D

      2-3/8-inch O.D. Tenon Adapter, Quad Horizontal, 90 Degree

      Specifications

      Additional information

      Energy DataInput Voltage: 120-277V
      Input Frequency: 50/60 Hz
      Wattage: 100W
      Power Factor: >0.9
      THD: ≤15%
      Operating Temperature: -4°F to 122°F (-20°C to 50°C)
      Lighting DataLumens: 17000
      Efficacy: 170 lm/W
      CCT: 4000K, 5000K
      Dimmable: 0-10V
      CRI: Ra≥70
      L70: 100000 hrs
      Physical DataColor: Dark Bronze
      Lens Type: Polycarbonate
      Diffuser: Clear
      Rating: IP67 Wet Location
      Warranty: 7yr/75K
