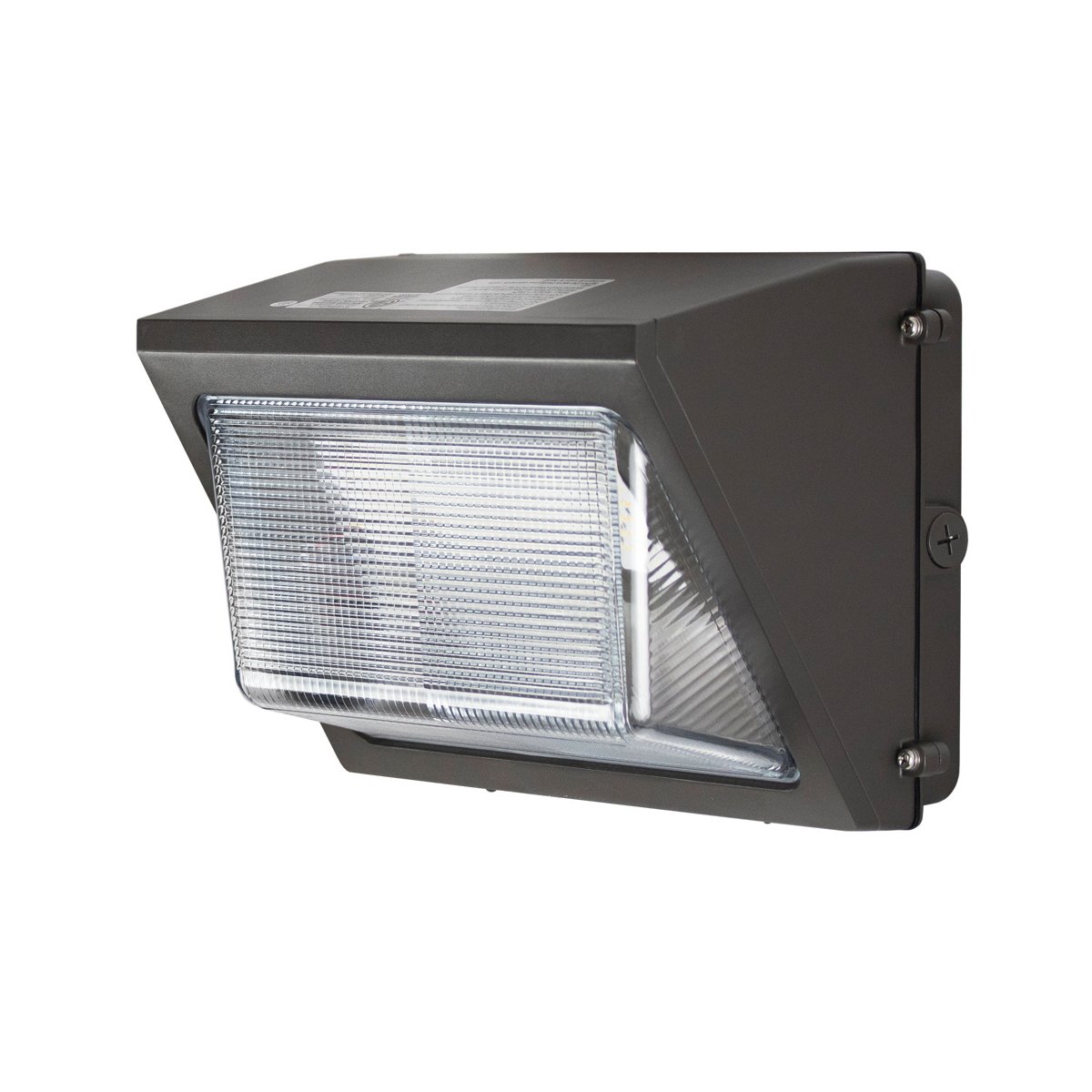

ETH-TWP-120W

QUADFORCE SERIES - LED 4-Wattage Semi Cutoff Wall Pack, 120W Max, 148 lm/W, IP65 Wet Location, Select for 4X-Wattages, 1-10V Dimmable, Premium Outdoor Luminaire. (120-277V)

In stock

  • The ETH-TWP-120W is an industry-leading 120W Max 4X-Wattage Tunable LED Semi Cutoff Wall Pack luminaire producing 148 lumens per watt.
  • 4X-Wattage Tunable (Select between 90W, 100W, 110W, 120W)
  • Includes Wattage Tuning Switch and Mounting Level inside housing.
  • Rated IP65 Wet Location, designed with wide heat-sinks for maximum heat dissipation.
  • Anti-UV Prismatic Tempered Glass Lens for crisp light transmission and to prevent discoloration.
  • Available with installed Photocell Sensor.
  • 7 year /75000 hour warranty, and listed with all applicable bodies for safety and performance to qualify for energy-efficient LED lighting rebates.

SPEC SHEET | MORE FILES

Model: ETH-TWP-120W Applications: , , Group:

Applications

Premium outdoor luminaire suitable for building exteriors, entryways, courtyards, alleys, pedestrian walkways, and general security.

Construction

Manufactured for weather-proof durability using solid heavy duty die cast aluminum housing with anti-UV polyester coating to resist water, salt, corrosion, discoloration, and scratching. IP65 Wet Location rated for dust-tight, water jets: IEC 60529.

Electrical

Input voltages 120-277V with 1-10V Continuous Dimming. Includes 4X-Wattage Tuning Switch inside housing. Operating temperatures -22°F to 113°F (-30°C to 45°C). Surge Protection Rating L-N: 2kV, L/N-PE: 4kV: IEC 61000-4-5.

Mounting

Wall mounted installation. Includes Level inside housing.

Optics

Anti-UV Clear Prismatic Tempered Glass Lens.

Listings

ETL certified to meet US and Canadian standards. FCC, CE and RoHS compliant. Listed to qualify for energy-efficient LED lighting rebates.

Warranty

7 yr /75K hrs

Available Color Temperatures

4000K

5000K

5000K

Optional Controls & Sensors

Specifications

Additional information

Energy DataInput Voltage: 120-277V
Input Frequency: 50/60 Hz
Wattage: 4X-Wattage Select (90W, 100W, 110W, 120W)
Power Factor: >0.95
THD: ≤15%
Operating Temperature: -22°F to 113°F (-30°C to 45°C)
Lighting DataLumens: (13320, 14800, 16280, 17760)
Efficacy: 148 lm/W
CCT: 4000K, 5000K
Dimmable: 1-10V
CRI: Ra≥70
L70: 75000 hrs
Physical DataColor: Dark Bronze
Lens Type: Tempered Glass
Diffuser: Prismatic
Rating: IP65 Wet Location
Warranty: 7yr/75K
