ETLWR05-4FT-32/40/48W 3CCT

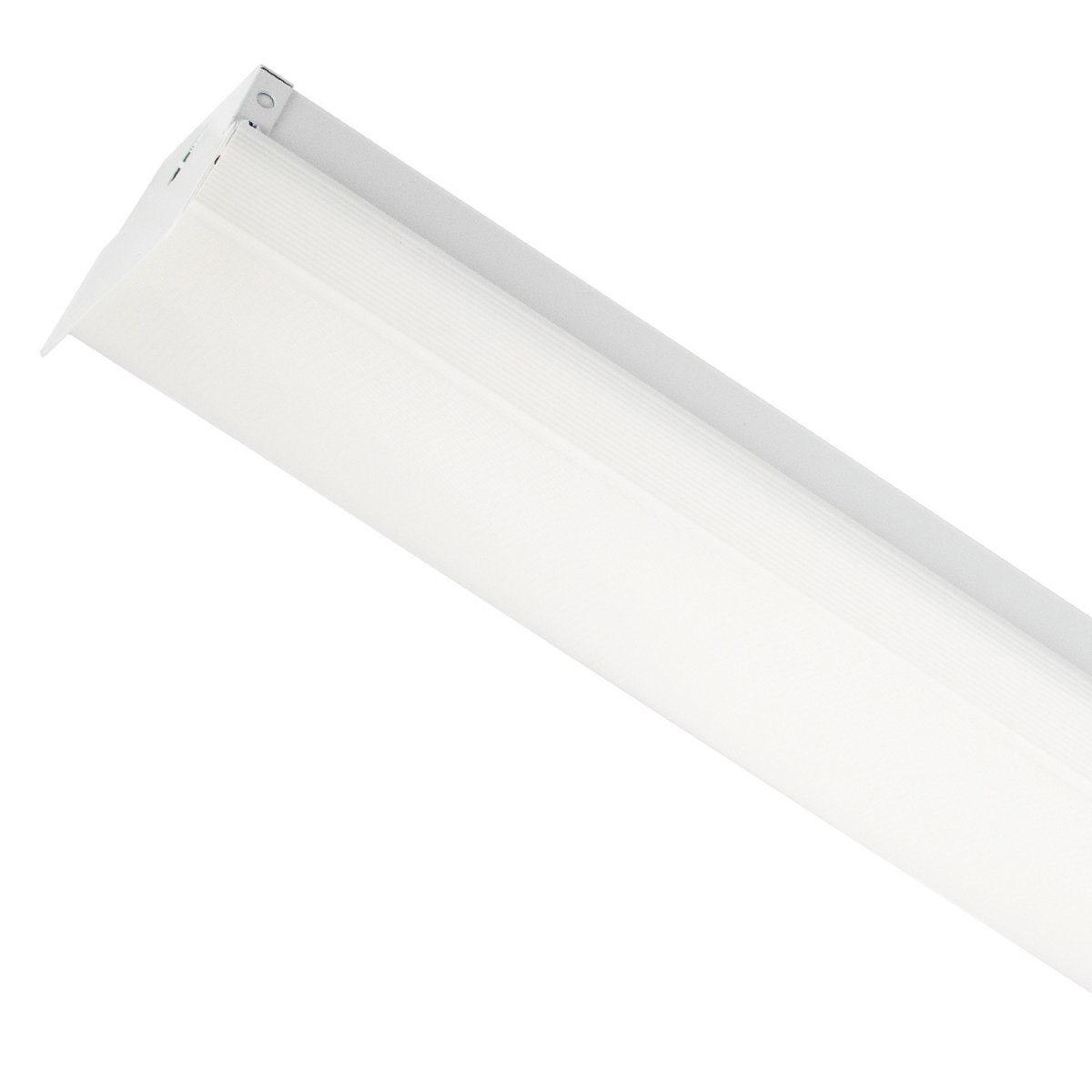

    ETL G5 SERIES - LED Tunable Wraparound, 4-FT, 5-INCH Wide, 48W Max, 130 lm/W, Select 3X-CCT and 3X-Wattages, 0-10V Dimmable, Premium Indoor Luminaire, Smart Sensor Ready. (120-277V)

    In stock

    • The ETH-WRP-4-22W is an industry-leading 4-FT, 48W Max LED Wraparound luminaire producing 130 lumens per watt.
    • Anti-UV Prismatic Polycarbonate Lens for even light transmission and to prevent discoloration.
    • Designed with linear heat-sinks for maximum heat dissipation.
    • Available with Occupancy, Bi-Level Dimming, Daylight, and Emergency Backup Battery Driver options.
    • 5 year /50000 hour warranty, and listed with all applicable bodies for safety and performance to qualify for energy-efficient LED lighting rebates.

    SPEC SHEET | MORE FILES

    Model: ETLWR05-4FT-32/40/48W 3CCT Categories: , Tag:

    Applications

    Premium indoor luminaire suitable for general indoors, lobbies, offices, meeting rooms, restrooms, hallways, stairwells, storage-closets, kitchens, and work-stations.

    Construction

    Manufactured for durability using aluminum sheet housing with semigloss coating to resist corrosion, discoloration, and scratching. For use in Dry or Damp Locations.

    Electrical

    Input voltages 120-277V with 0-10V Continuous Dimming. Includes 2X-CCT and 4X-Wattage Tuning Switches. Operating temperatures -4°F to 122°F (-20°C to 50°C).

    Mounting

    Surface Mounting on ceilings or beams.

    Optics

    Anti-UV Frosted Prismatic Polycarbonate Lens.

    Emergency

    Integrated install 8W 90 Minute Emergency Battery Backup available.

    Listings

    UL certified to meet US and Canadian standards. FCC, CE and RoHS compliant. Listed to qualify for energy-efficient LED lighting rebates.

    Warranty

    5 yr /50K hrs.

    Available Color Temperatures

    3500K

    3500K

    4000K

    4000K

    5000K

    5000K

    Specifications

    Additional information

    Energy DataInput Voltage: 120-277V
    Input Frequency: 50/60 Hz
    Wattage: 3-Wattage Select, 32W, 40W, 48W
    Power Factor: >0.9
    THD: ≤10%
    Operating Temperature: -4°F to 122°F (-20°C to 50°C)
    Lighting DataLumens: 4160, 6240, 5200
    Efficacy: 130 lm/W
    CCT: 3-CCT Select, 3500K, 4000K, 5000K
    Dimmable: 0-10V
    CRI: Ra≥82
    L70: 50000 hrs
    Physical DataSize: 4-FT
    Color: White
    Lens Type: Polycarbonate
    Diffuser: Frosted, Prismatic
    Rating: Damp Location
    Warranty: 5yr/50K
