FI-DLR-B-6I-5C3P

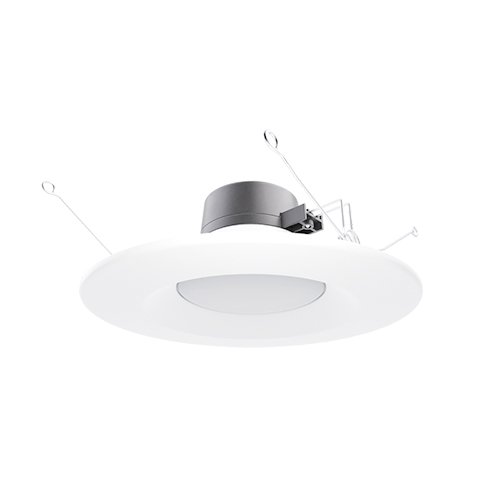

    CCT G2 SERIES - LED Tunable Down Light Retrofit, 6-inch, 18W Max, Up to 66 lm/W, IC Rated, IP40 Dry Location, Select 5X-CCT and 3X-Wattages, E-26 Base Adapter, Triac Step-Dimmable, Premium Indoor Retrofit, Smart Sensor Ready. (120V)

    In stock

    • The FI-DLR-B-6I-5C3P is a 6-in, Tunable 18W Max, LED Down Light Retrofit producing up to 66 lumens per watt.
    • 15X-Total Tunable Setting Combinations: 3X-Wattage Tunable (Select between 12W, 15W, 18W) and 5X-CCT Tunable (Select between 2700K, 3000K, 3500K, 4000K, 5000K)
    • Includes E26 Adapter and V-Springs to install into existing down light frame housing.
    • Frosted Polycarbonate Lens for even light transmission and to prevent discoloration.
    • IC Rated for direct contact with insulation.
    • Rated IP40 Dry Location
    • Fits into most 5-in and 6-in recessed housings and suitable for non-commercial general indoor and covered locations.
    • 5 year /50000 hour warranty, and listed with all applicable bodies for safety and performance to qualify for energy-efficient LED lighting rebates.

    SPEC SHEET | MORE FILES

    Model: FI-DLR-B-6I-5C3P Categories: , Tag:

    Applications

    Premium indoor retrofit for recessed mounting in ceiling spaces. Suitable for general residential indoor uses.

    Construction

    Manufactured for durability using aluminum sheet housing with satin coating to resist corrosion, discoloration, and scratching. IC Rated applicable for direct contact with insulation. IP40 Dry Location rated for protection against solid objects 1.0mm diameter and greater. Medium recessed lens to reduce ambient glare.

    Electrical

    Input voltage 120V with Triac Step-Dimming. Includes 5X-CCT Tuning Switch on Housing Select (2700K, 3000K, 3500K, 4000K, 5000K).

    Mounting

    Includes E-26 lamp screw base clip attachment. 4-Inch model features quick installation Friction Clips for installations into existing housing. 6-Inch model features V-Springs for installations into exisitng housing.

    Optics

    Frosted Prismatic Polycarbonate Lens.

    Listings

    ETL certified to meet US and Canadian standards. FCC, CE and RoHS compliant. ENERGY STAR listed to qualify for energy-efficient LED lighting rebates.

    Warranty

    5 yr /50K hrs.

    Tunable Color Temperatures

    2700K

    3000K

    3500K

    4000K

    4000K

    5000K

    5000K

    Specifications

    Additional information

    Energy DataInput Voltage: 120V
    Input Frequency: 50/60 Hz
    Wattage: (12W, 15W, 18W)
    Power Factor: >0.9
    Lighting DataLumens: (800, 1000, 1150)
    Efficacy: Up to 66 lm/W
    CCT: 5-CCT Select, 2700K, 3000K, 3500K, 4000K, 5000K
    Dimmable: Triac (Step-Dimming)
    CRI: Ra≥90
    L70: 50000 hrs
    Physical DataSize: 6-in
    Color: White
    Lens Type: Polycarbonate
    Diffuser: Frosted
    Rating: IC Rated, IP40 Dry Location
    Warranty: 5yr/50K
