FI-DOWN-10-33W-3CCT

    9 SERIES - LED Tunable Commercial Down Light, 10-in, 33W Max, 100 lm/W, IP54 Wet Location, Select 3X-CCT and 3X-Wattages, 0-10V Dimmable, Premium Indoor Luminaire, Smart Sensor Ready. (120-277V)

    In stock

    • The FI-DOWN-10-33W-3CCT is an industry leading commercial-grade 10-in, Tunable 33W Max, LED Down Light producing 100 lumens per watt.

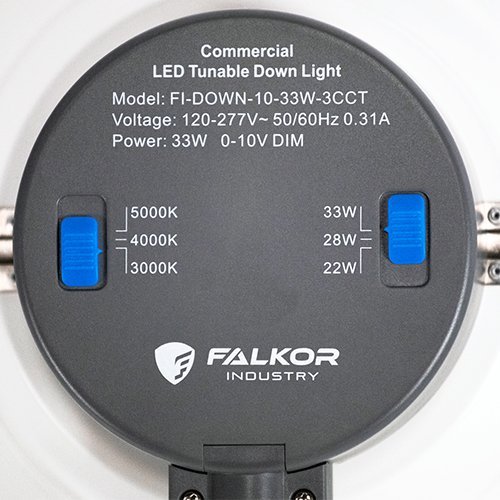

    • 9X-Total Tunable Setting Combinations: 3X-Wattage Tunable (Select between 22W, 28W, 33W) and 3X-CCT Tunable (Select between 3000K, 4000K, 5000K)
    • Includes quick set spring-arms for installation without down light housing.
    • Anti-UV Frosted Polycarbonate Lens for even light transmission and to prevent discoloration.
    • Designed with a wide heat-sink for maximum heat dissipation.
    • 5 year /50000 hour warranty, and listed with all applicable bodies for safety and performance to qualify for energy-efficient LED lighting rebates.

    SPEC SHEET | MORE FILES

    Model: FI-DOWN-10-33W-3CCT Categories: , Tag:

    Applications

    Premium indoor luminaire for recessed mounting in ceiling spaces. Suitable for general indoor, lobbies, offices, meeting rooms, restrooms, hallways, hospitals, airports, hotels, restaurants and shopping centers.

    Construction

    Manufactured for durability using airtight aluminum sheet housing with satin coating to resist corrosion, discoloration, and scratching. IP54 Wet Location rated for protection against dust and splashing water: IEC 60529. Deep recessed lens to minimize ambient glare.

    Electrical

    Input voltage 120-277V models with 0-10V Continuous Dimming. Includes 3X-CCT and 3X-Wattage Tuning Switches. Operating temperatures -4°F to 104°F (-20°C to 40°C).

    Mounting

    Quick installation spring-bars for installations without housing. 1.5 Foot integrated whip for easy access to the junction box.

    Optics

    Anti-UV Frosted Polycarbonate Lens.

    Listings

    ETL certified to meet US and Canadian standards. FCC, CE and RoHS compliant. ENERGY STAR listed to qualify for energy-efficient LED lighting rebates.

    Warranty

    5 yr /50K hrs.

    Tunable Color Temperatures

    3000K

    3000K

    4000K

    4000K

    5000K

    5000K

    Optional Controls & Sensors

      • IP710-LFZ

        LEVITON™ 0-10V Wired Slide Dimmer (120-277V)

      • LEDRU

        EnOcean EasyFit™ Wireless LED Relay Zone Controller with 0-10V Dimming Capability, 902 MHz Frequency

      • LEDDU

        EnOcean EasyFit™ Wireless LED Zone Controller 0-10V without Relay - 12V Aux Input, 902 MHz Frequency

      • EOSCU

        EnOcean EasyFit™ Ceiling Mounted Wireless Occupancy Sensor (CR2032 Battery Optional), 902 MHz Frequency

      • EOSWU

        EnOcean EasyFit™ Wall Mounted Wireless Occupancy Sensor (CR2032 Battery Optional), 902 MHz Frequency

      • ELLSU

        EnOcean EasyFit™ Ceiling Mounted Wireless Light Level Sensor (Daylight Harvesting Module), 902 MHz Frequency

      • ESRPU

        EnOcean EasyFit™ Single-Rocker Pad for Self-Powered Wireless Switch, 902 MHz Frequency

      • EDRPU

        EnOcean EasyFit™ Double-Rocker Pad for Self-Powered Wireless Switch, 902 MHz Frequency

      • NWC 300U

        EnOcean EasyFit™ Navigan™ Wireless Commissioner

      Specifications

      Additional information

      Energy DataInput Voltage: 120-277V
      Input Frequency: 50/60 Hz
      Wattage: 3-Wattage Select (22W. 28W, 33W)
      Power Factor: >0.9
      Operating Temperature: -4°F to 104°F (-20°C to 40°C)
      Lighting DataLumens: (2200, 2800, 3300)
      Efficacy: 100 lm/W
      CCT: 3-CCT Select, 3000K, 4000K, 5000K
      Dimmable: 0-10V
      CRI: Ra≥82
      L70: 50000 hrs
      Physical DataSize: 10-in
      Color: White
      Lens Type: Polycarbonate
      Diffuser: Frosted
      Rating: IP54 Wet Location
      Warranty: 5yr/50K
