FI-DP-24-U-P-40W

    FI DREAM PANEL SERIES - LED Back-Lit Panel, 2x4, 40W, 130 lm/W, Damp Location, 0-10V Dimmable, Premium Indoor Luminaire, Smart Sensor Ready. (120-277V)

    Out of stock

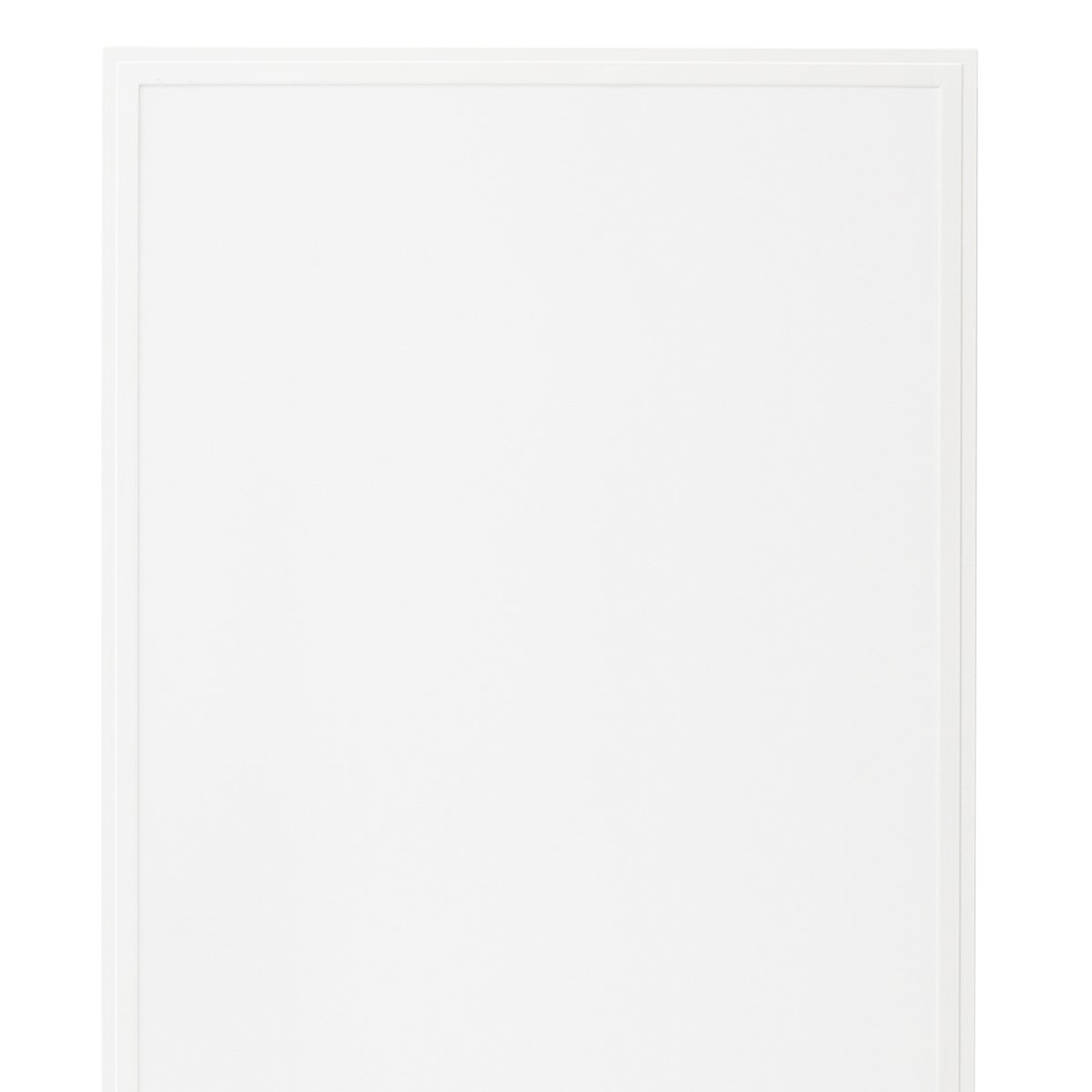

    • The FI-DP-24-U-P-40W is an industry-standard 2×4, 40W LED Back-Lit Panel luminaire producing 130 lumens per watt.
    • Anti-UV Frosted Polycarbonate Lens for even light transmission and to prevent discoloration.
    • Optional Surface Mount Kit and Cable Suspension Kit available.
    • Designed with wide heat-sinks for maximum heat dissipation.
    • 5 year /50000 hour warranty, and listed with all applicable bodies for safety and performance to qualify for energy-efficient LED lighting rebates.
    Model: FI-DP-24-U-P-40W Categories: , , Tag:

    Applications

    Premium indoor luminaire suitable for general indoor commercial spaces, lobbies, offices, meeting rooms, schools, retail stores, restrooms, hallways, and workstations.

    Construction

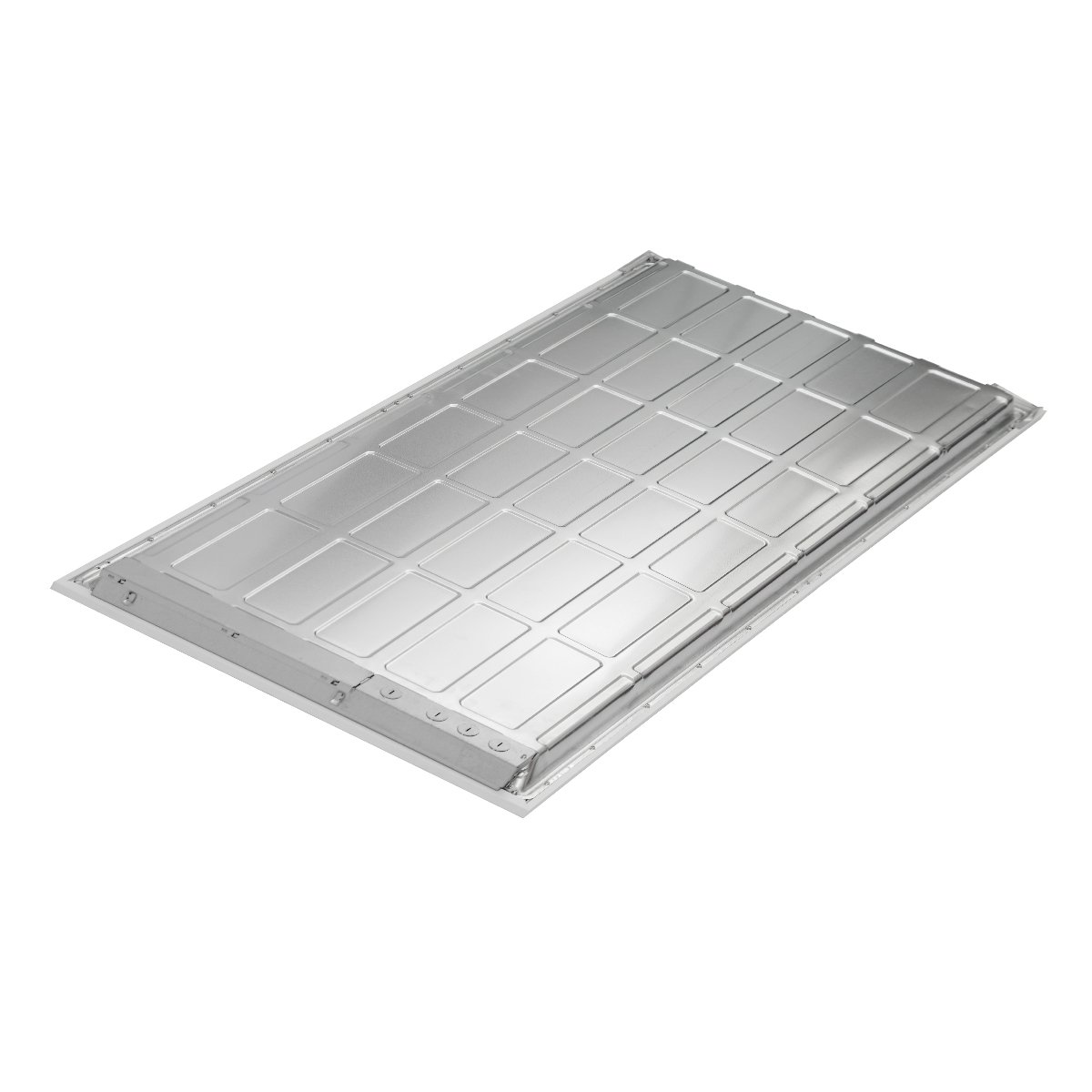

    Manufactured for durability using aluminum frame housing and a steel die-formed back enclosure with satin coating to resist corrosion, discoloration, and scratching. For use in Dry or Damp Locations.

    Electrical

    Input voltages 120-277V with 0-10V Continuous Dimming. Includes built-in junction  box. Operating temperatures -4°F to 104°F (-20°C to 40°C).

    Mounting

    Recessed T-Bar Ceiling Mount with secure attachment earthquake clips. Surface Mount Kits available. 2-Cable and 4-Cable Suspension Kits available.

    Optics

    Anti-UV Frosted Prismatic Polycarbonate Lens.

    Listings

    UL certified to meet US and Canadian standards. FCC, CE and RoHS compliant. Listed to qualify for energy-efficient LED lighting rebates.

    Warranty

    5 yr /50K hrs.

    Available Color Temperatures

    3500K

    3500K

    4000K

    4000K

    5000K

    5000K

    Specifications

    Additional information

    Energy DataInput Voltage: 120-277V
    Input Frequency: 50/60 Hz
    Wattage: 40W
    Power Factor: >0.9
    THD: ≤15%
    Operating Temperature: -4°F to 104°F (-20°C to 40°C)
    Lighting DataLumens: 5100
    Efficacy: 130 lm/W
    CCT: 3500K, 4000K, 5000K
    Dimmable: 0-10V
    CRI: Ra≥82
    L70: 50000 hrs
    Physical DataSize: 2×4
    Color: White
    Lens Type: Polycarbonate
    Diffuser: Frosted
    Warranty: 5yr/50K
