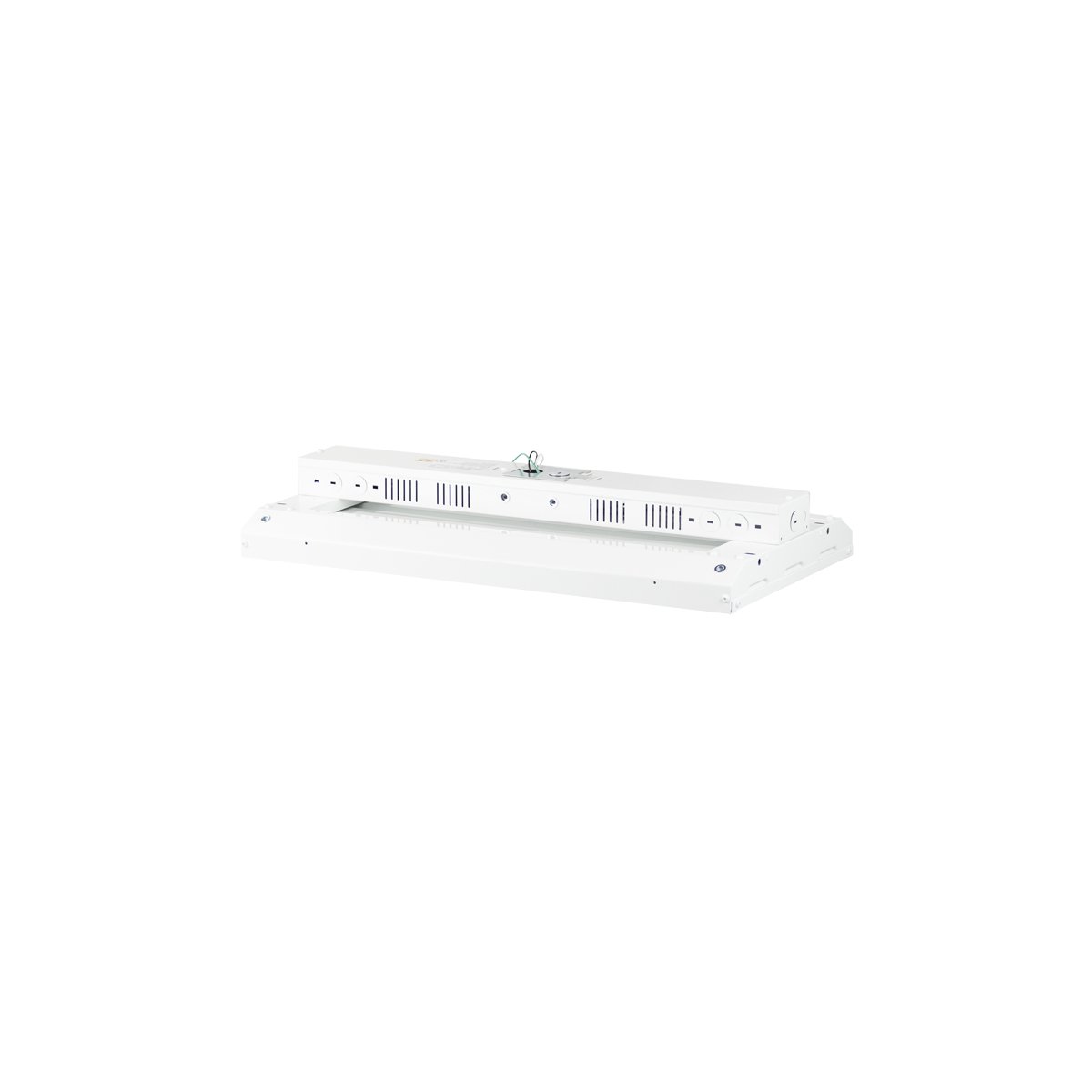

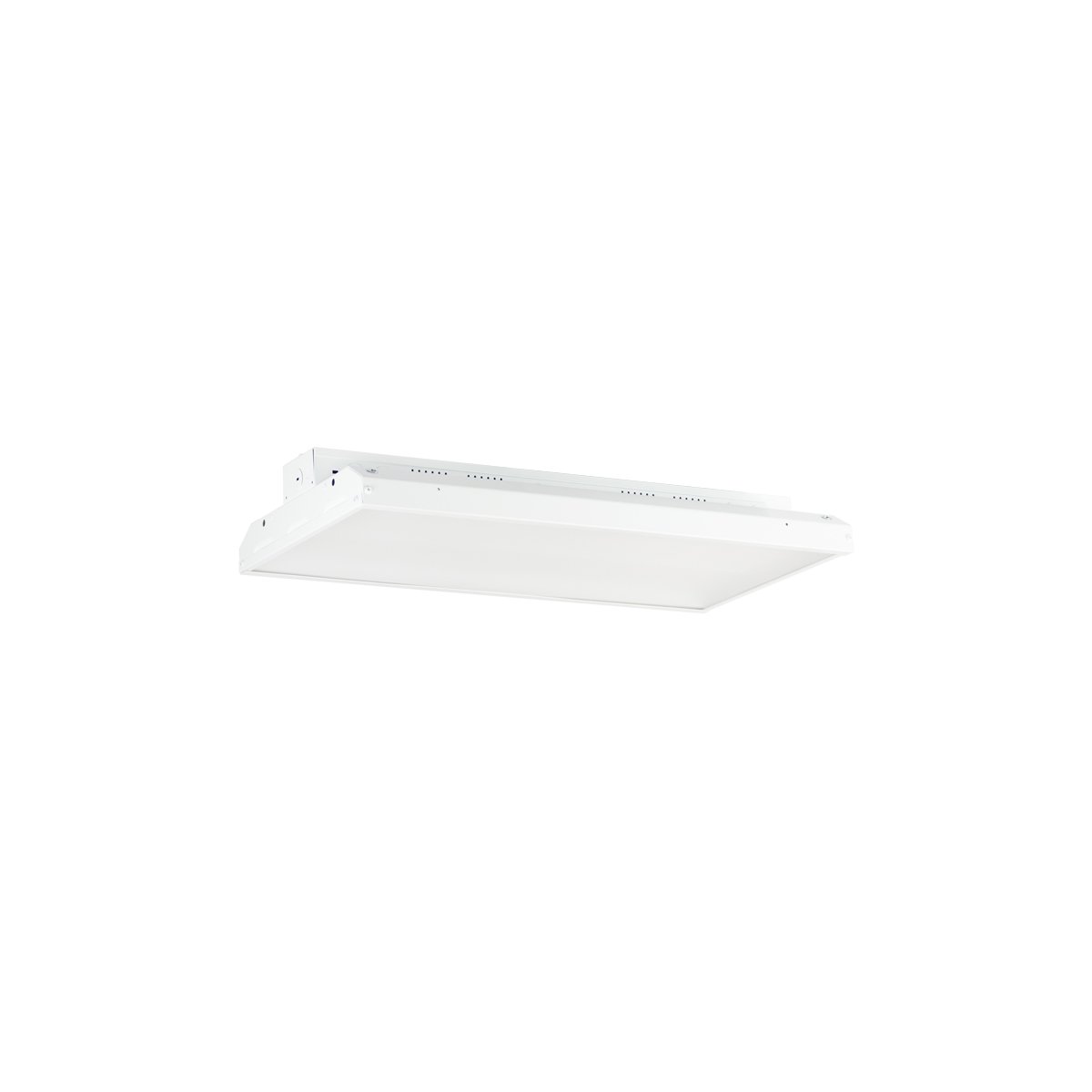

FI-HB-2FT-110W

OMNI SERIES - LED Linear High Bay, 2-FT, 110W, 131 lm/W, IP40 Dry Location, 0-10V Dimmable, Premium Indoor Luminaire, Smart Sensor Ready. (120-277V)

Out of stock

  • The FI-HB-2FT-110W is an industry-standard 2-FT, 110W LED Linear High Bay luminaire producing 131 lumens per watt.
  • Includes a pair of V-Hooks and Chains for hanging in high indoor ceiling spaces at or above 25 feet.
  • Optional Pendant Mount Bracket available.
  • Rated IP40 Dry Location and designed with multiple heat-sinks for maximum heat dissipation.
  • Anti-UV Frosted Polycarbonate Lens for even light transmission and to prevent discoloration, with an optional Wire Guard for added protection.
  • Available with Occupancy, Bi-Level Dimming, Daylight, and Emergency Backup Battery Driver options.
  • 5 year /50000 hour warranty, and listed with all applicable bodies for safety and performance to qualify for energy-efficient LED lighting rebates.

SPEC SHEET | MORE FILES

Model: FI-HB-2FT-110W Categories: , , Tag:

Available Color Temperatures

4000K

4000K

5000K

5000K

Optional Controls & Sensors

    • LEDRU

      EnOcean EasyFit™ Wireless LED Relay Zone Controller with 0-10V Dimming Capability, 902 MHz Frequency

    • LEDDU

      EnOcean EasyFit™ Wireless LED Zone Controller 0-10V without Relay - 12V Aux Input, 902 MHz Frequency

    • EOSCU

      EnOcean EasyFit™ Ceiling Mounted Wireless Occupancy Sensor (CR2032 Battery Optional), 902 MHz Frequency

    • EOSWU

      EnOcean EasyFit™ Wall Mounted Wireless Occupancy Sensor (CR2032 Battery Optional), 902 MHz Frequency

    • ELLSU

      EnOcean EasyFit™ Ceiling Mounted Wireless Light Level Sensor (Daylight Harvesting Module), 902 MHz Frequency

    • ESRPU

      EnOcean EasyFit™ Single-Rocker Pad for Self-Powered Wireless Switch, 902 MHz Frequency

    • EDRPU

      EnOcean EasyFit™ Double-Rocker Pad for Self-Powered Wireless Switch, 902 MHz Frequency

    • NWC 300U

      EnOcean EasyFit™ Navigan™ Wireless Commissioner

    • OSFHU-ITW

      LEVITON™ PIR Fixture Mount Occupancy Sensor (120-347V)

    • HB011-PDX

      LEVITON™ PIR Fixture Mount, Dimming Sensor with Daylight Harvesting (120-347V)

    • OSFLA-ITW

      LEVITON™ PIR Fixture Mount Occupancy Sensor with Snap Lock Offset Adapter (120-347V)

    • HB0LA-PDX

      LEVITON™ PIR Fixture Mount Dimming Sensor with Daylight Harvesting with Snap Lock Offset Adapter (120-347V)

    • OSFLO-W

      LEVITON™ Snap-Lock Offset Adapter For OSHFU Sensor

    • EMJ-0825-010/105-J2-08W

      ARCATA™ External Install - Emergency 90-min 8W Battery Backup and 25W Driver Combo, 1500mAH, 9.6V, 24 hr Recharge (90-305V)

    • EMJ-0825-010/105-J2-16W

      ARCATA™ External Install - Emergency 90-min 16W Battery Backup and 25W Driver Combo, 1500mAH, 9.6V, 24 hr Recharge (90-305V)

    Technical Information

    Additional information

    Energy DataInput Voltage: 120-277V
    Input Frequency: 50/60 Hz
    Wattage: 110W
    Power Factor: >0.9
    THD: ≤17%
    Operating Temperature: -4°F to 122°F (-20°C to 50°C)
    Lighting DataLumens: 14410
    Efficacy: 131 lm/W
    CCT: 4000K, 5000K
    Dimmable: 0-10V
    CRI: Ra≥80
    L70: 50000 hrs
    Physical DataSize: 2-FT
    Color: White
    Lens Type: Polycarbonate
    Diffuser: Frosted
    Rating: IP40 Dry Location
    Warranty: 5yr/50K
