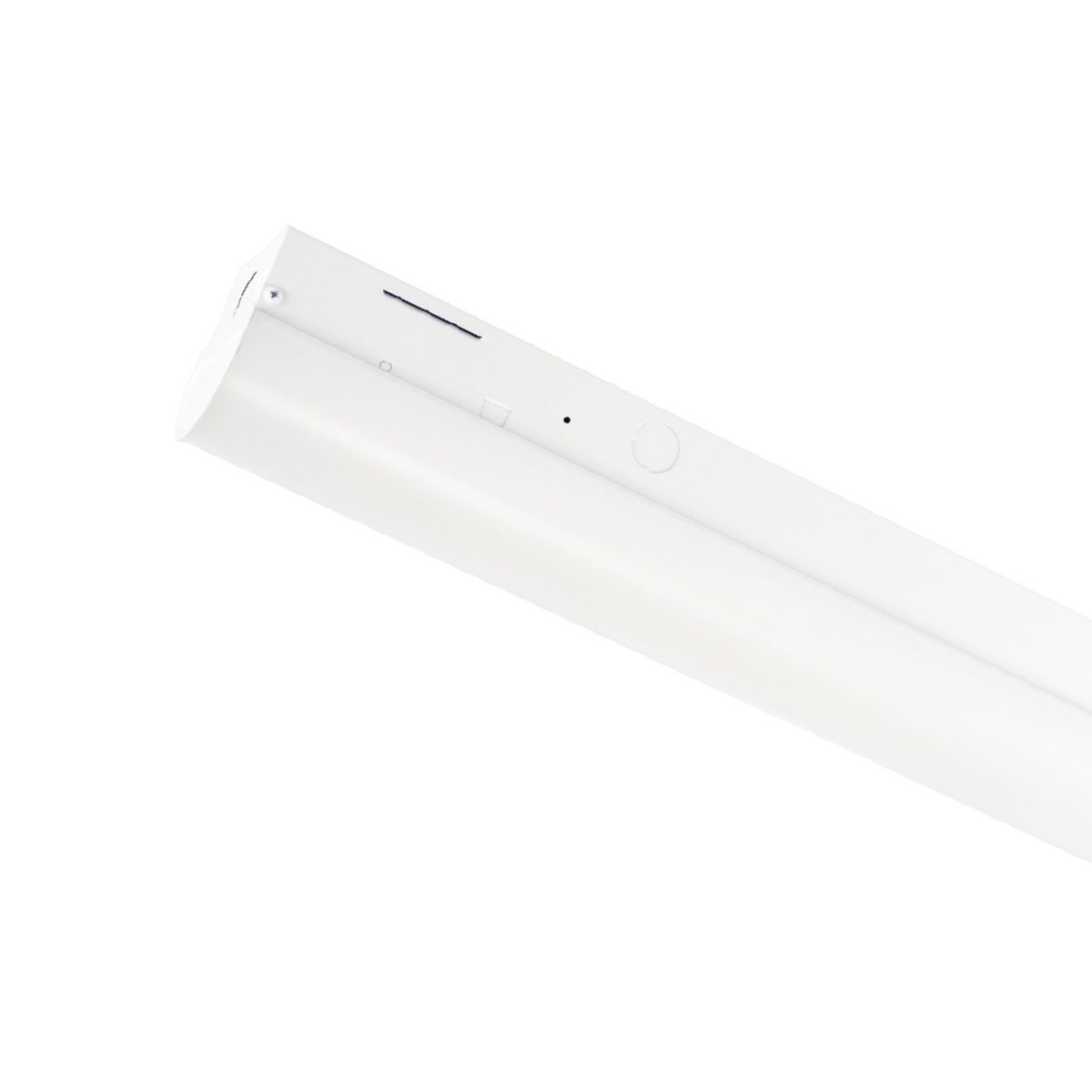

FI-STRIP-4FT-40/32/24W-G5-TCP

    FI G5 SERIES - LED Tunable Low Bay /Linear Strip, 4-FT, 40W Max, 134 lm/W, Damp Location, Select 3X-CCT and 3X-Wattages, 0-10V Dimmable, Premium Indoor Luminaire, Smart Sensor Ready. (120-277V)

    Out of stock

    • The FI-STRIP-4FT-40/32/24W-G5-TCP is an industry-leading 4-FT, Tunable 40W Max, LED Linear Strip /Linear Low Bay luminaire producing 134 lumens per watt.
    • 9X-Total Tunable Setting Combinations: 3X-Wattage Tunable (Select between 24W, 32W, 40W) and Select 3X-CCT Tunable (Select between 3500K, 4000K, 5000K).
    • Includes Surface Mount Brackets with optional pair of V-Hooks and Chains for hanging in indoor ceiling spaces up to 25 feet.
    • Damp Location and designed with multiple heat-sinks for maximum heat dissipation.
    • Anti-UV Frosted Prismatic Polycarbonate Lens for even light transmission and to prevent discoloration.
    • Available with Occupancy, Bi-Level Dimming, Daylight, and Emergency Backup Battery Driver options.
    • 7 year /75000 hour warranty, and listed with all applicable bodies for safety and performance to qualify for energy-efficient LED lighting rebates.
    Model: FI-STRIP-4FT-40/32/24W-G5-TCP Categories: , , Tag:

    Applications

    Premium indoor luminaire for hanging or surface mounting in ceiling spaces less than 25 feet. Suitable for gymnasiums, warehouses, manufacturing, packaging, storage, aisles, workstations, and covered decks.

    Construction

    Manufactured for durability using aluminum sheet housing with semigloss coating to resist corrosion, discoloration, and scratching. Damp Location Rated.

    Electrical

    Input voltage 120-277V models with 0-10V Continuous Dimming. Includes 3X-CCT and 3X-Wattage Tuning Switches. Operating temperatures -4°F to 104°F (-20°C to 40°C).

    Mounting

    Surface Mount standard. Optional V-Hooks and Chains for hanging available.

    Optics

    Anti-UV Frosted Prismatic Polycarbonate Lens.

    Controls

    Fixture mounted Daylight, Bi-level Dimming, and Motion Detection Sensor available.

    Emergency

    Integrated install 8W 90 Minute. Emergency Battery Backup available.

    Listings

    UL certified to meet US and Canadian standards. FCC, CE and RoHS compliant. Listed to qualify for energy-efficient LED lighting rebates.

    Warranty

    7 yr /75K hrs.

    Tunable Color Temperatures

    3500K

    3500K

    4000K

    4000K

    5000K

    5000K

    Specifications

    Additional information

    Energy DataInput Voltage: 120-277V
    Input Frequency: 50/60 Hz
    Wattage: 3-Wattage Select, 24W, 32W, 40W
    Power Factor: >0.9
    THD: ≤10%
    Operating Temperature: -4°F to 104°F (-20°C to 40°C)
    Lighting DataLumens: 3215, 4288, 5360
    Efficacy: 134 lm/W
    CCT: 3-CCT Select, 3500K, 4000K, 5000K
    Dimmable: 0-10V
    CRI: Ra≥80
    L70: 75000 hrs
    Physical DataSize: 4-FT
    Color: White
    Lens Type: Polycarbonate
    Diffuser: Frosted, Prismatic
    Rating: IP44 Wet Location
    Warranty: 7yr/75K
