FI-SXT-200W-H-H-5000K
Roll over image to zoom in
Click to open expanded view

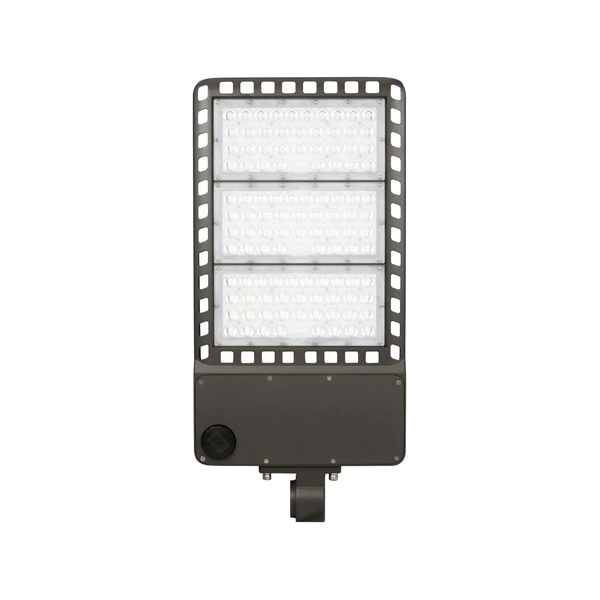

FI-SXT-200W-H-H-5000K

    FI HLO SERIES - LED 3-WATT Area Light, 200W Max, 150 lm/W, IP67 Wet Location, 0-10V Dimmable, Premium Outdoor Luminaire with Smart Technology. (120-277V)

    In stock

    • The FI-SXT-200W-H-H-5000K is an industry-leading 200W Max LED 3-WATT Area Light luminaire producing 150 lumens per watt.
    • Optional Slip-Fit Mount, Square Pole Mount, Adjustable Round /Square Pole Mount, and Trunnion Mount available in dark bronze.
    • Rated IP67 Wet Location and designed with multiple heat-sinks for maximum heat dissipation.
    • Anti-UV Clear Type III Polycarbonate Lens for even light transmission and to prevent discoloration, Type IV and Type V Lens available.
    • Available with Photocell, Bi-Level Dimming Sensor with Remote Controller options.
    • 5 year /50000 hour warranty, and listed with all applicable bodies for safety and performance to qualify for energy-efficient LED lighting rebates.

    SPEC SHEET | MORE FILES

    Model: FI-SXT-200W-H-H-5000K Categories: , Tag:

    Applications

    Premium outdoor luminaire suitable for parking areas, auto dealerships, industrial yards, building exteriors, roadways, alleys, and pedestrian walkways.

    Construction

    Manufactured for weather-proof durability using solid heavy duty die cast aluminum housing with anti-UV polyester coating to resist water, salt, corrosion, discoloration, and scratching. IP67 Wet Location rated for dust-tight, temporary immersion: IEC 60529.

    Electrical

    Input voltages 120-277V models with 0-10V Continuous Dimming. Operating temperatures -4°F to 122°F (-20°C to 50°C). 3X-Wattage Tuning Switch inside Sensor Receptacle. Twist-lock cap with Remote Control. Shorting Cap for manual switch or timer control.

    Mounting

    Adjustable options include Slip-Fit, Round /Square Pole, and Trunnion Mounts.

    Optics

    Anti-UV Clear Polycarbonate IES /NEMA Type III Lens standard. Type II, Type IV, Type V Lens.

    Controls

    PIR Photocell, PIR /Microwave Bi- Level Dimming, and Motion Detection programmable twist-lock cap with Remote Control. Shorting Cap for manual switch or timer control.

    Listings

    UL certified to meet US and Canadian standards. FCC, and RoHS compliant. Listed to qualify for energy-efficient LED lighting rebates.

    Warranty

    5 yr /50K hrs.

    Tunable Color Temperatures

    3000K

    3000K

    4000K

    5000K

    5000K

    Mounting Options

    Slip-Fit Mount, Adjustable

    Square Pole Mount, Adjustable

    Round /Square Pole Mount, Adjustable

    Trunnion Mount, Adjustable

    Tenon Mounts and Adapters

    4SQR-SP-D

    2-3/8-inch O.D. Tenon Adapter for 4-inch Round Pole Top

    5SQR-SP-D

    2-3/8-inch O.D. Tenon Adapter for 5-inch Round Pole Top

    4SQ-SP-D

    2-3/8-inch O.D. Tenon Adapter for 4-inch Square Pole Top

    5SQ-SP-D

    2-3/8-inch O.D. Tenon Adapter for 5-inch Square Pole Top

    SP-TR-D

    2-3/8-inch O.D. Tenon Adapter for Yoke Mount

    SQ-SP-D

    2-3/8-inch O.D. Tenon Adapter, Single Horizontal for Square Pole Side

    WM-SP-D

    2-3/8-inch O.D. Tenon Adapter, Single Horizontal, 90 Degree Wall Mount Bracket

    R60-SP2-90-D

    2-3/8-inch O.D. Tenon Adapter, Double Horizontal, 90 Degree

    R60-SP2-180-D

    2-3/8-inch O.D. Tenon Adapter, Double Horizontal, 180 Degree

    R60-SP3-90-D

    2-3/8-inch O.D. Tenon Adapter, Triple Horizontal, 90 Degree

    R60-SP3-120

    2-3/8-inch O.D. Tenon Adapter, Triple Horizontal, 120 Degree

    R60-SP4-90-D

    2-3/8-inch O.D. Tenon Adapter, Quad Horizontal, 90 Degree

    Specifications

    Additional information

    Energy DataInput Voltage: 120-277V
    Input Frequency: 50/60 Hz
    Wattage: 3-Wattage Select, 100W, 150W, 200W
    Power Factor: >0.9
    THD: ≤15%
    Operating Temperature: -4°F to 122°F (-20°C to 50°C)
    Lighting DataLumens: 22500, 30000, 15000
    Efficacy: 150 lm/W
    CCT: 5000K
    Dimmable: 0-10V
    CRI: Ra≥70
    L70: 50000 hrs
    Physical DataColor: Dark Bronze
    Lens Type: Polycarbonate
    Diffuser: Clear
    Rating: IP65 Wet Location
    Warranty: 5yr/50K
