Available Color Temperature
5000K
Optional Controls & Sensors
-
MS-PUNVC01 Photocell (100-277V)
Button Photocell Sensor, Max Load 750W, (120-277V) Available as an installed option.
Roll over image to zoom in

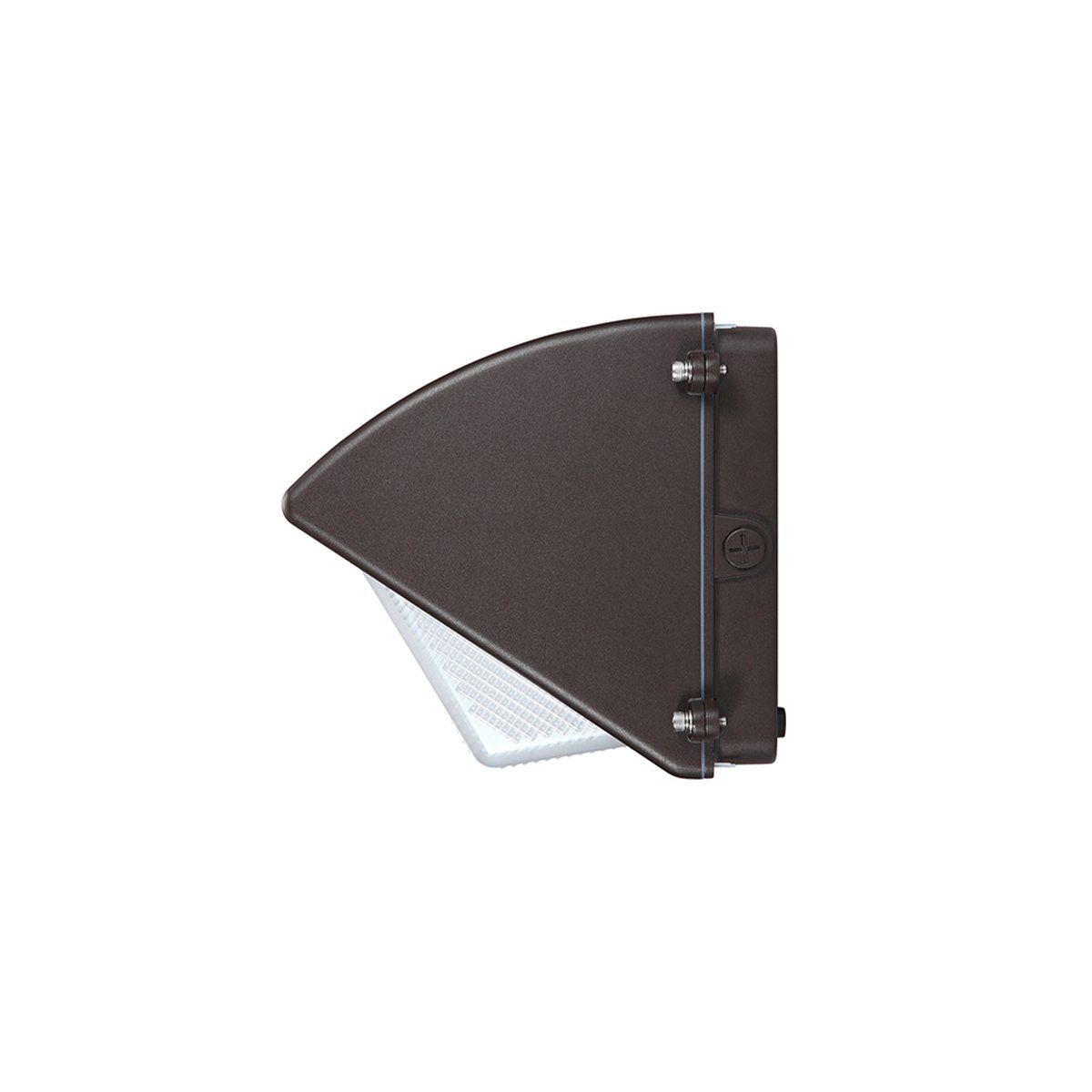

HG-WPH277-62
HG SERIES - LED Semi Cutoff Wall Pack, 62W, 138 lm/W, IP65 Wet Location, 0-10V Dimmable, Premium Outdoor Luminaire (120-277V)
- The HG-WPH277-62 is an industry-standard 62W LED Semi Cutoff Wall Pack luminaire producing 138 lumens per watt.
- Rated IP65 Wet Location, designed with wide heat-sinks for maximum heat dissipation.
- Anti-UV Prismatic Polycarbonate Lens for crisp light transmission and to prevent discoloration.
- Available with Photocell option.
- Suitable for outdoor commercial locations: building exteriors, entrances, courtyards, alleys and pedestrian walkways.
- 5 year /50000 hour warranty, and listed with all applicable bodies for safety and performance to qualify for energy-efficient LED lighting rebates.
Additional information
| Energy Data | Input Voltage: 120-277V Input Frequency: 50/60 Hz Wattage: 62W Power Factor: >0.9 THD: ≤15% Operating Temperature: -40°F to 122°F (-40°C to 50°C) |
|---|---|
| Lighting Data | Lumens: 8340 Efficacy: 138 lm/W CCT: 5000K Dimmable: No CRI: Ra≥80 L70: 50000 hrs |
| Physical Data | Color: Dark Bronze Lens Type: Polycarbonate Diffuser: Prismatic Rating: IP65 Wet Location Warranty: 5yr/50K |
