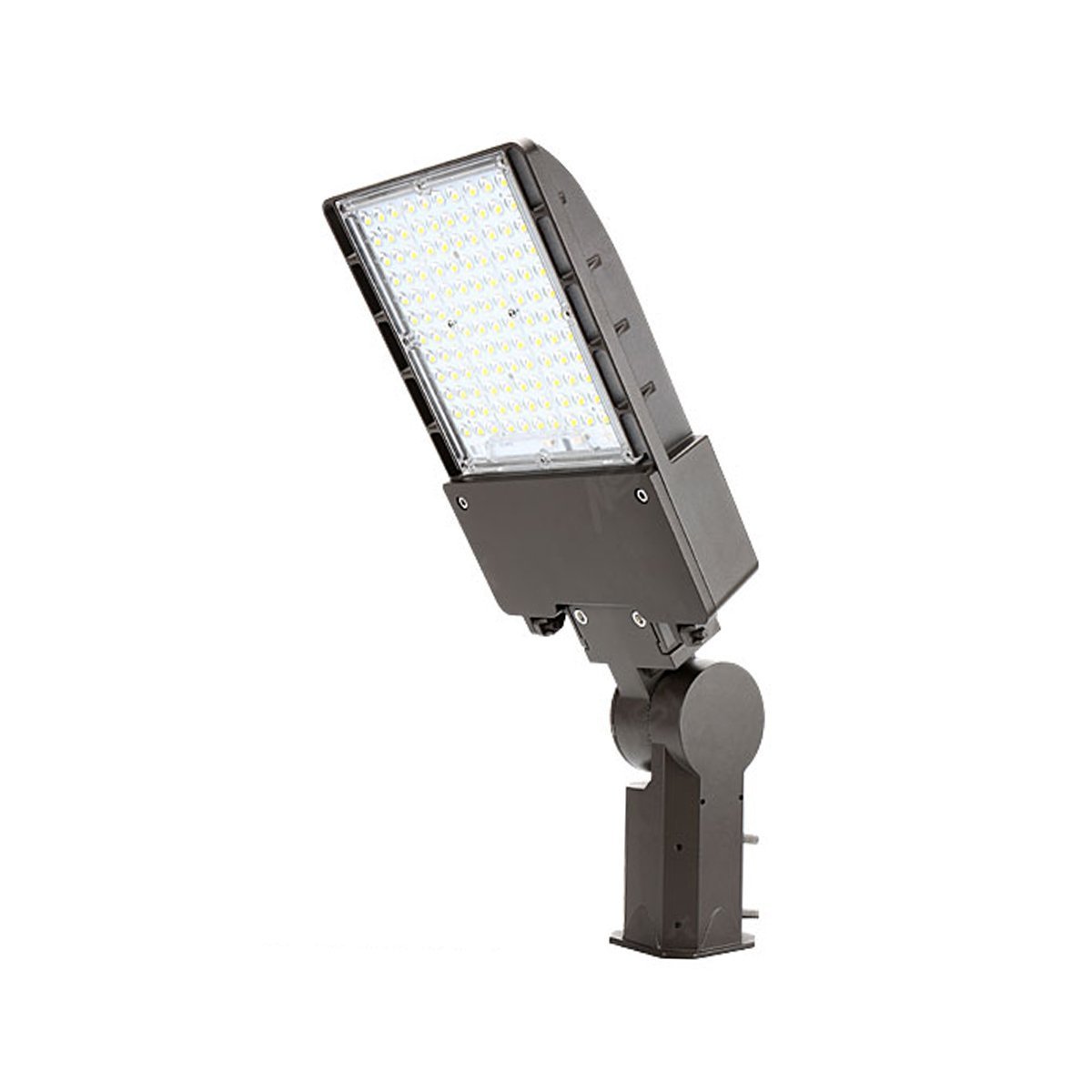

MAL04 150W

MAL ECO SERIES - LED Area Light, 150W, 139 lm/W, IP65 Wet Location, 0-10V Dimmable, Premium Outdoor Luminaire with Smart Technology. (120-277V)

In stock

  • The MAL04 150W is an industry-standard 150W LED Area Light luminaire producing 139 lumens per watt.
  • Optional Slip-Fit Mount, Adjustable Round /Square Pole Mount, Trunnion Mount, and Straight Arm Wall Mount available in dark bronze.
  • Rated IP65 Wet Location and designed with multiple heat-sinks for maximum heat dissipation.
  • Anti-UV Clear Type III Polycarbonate Lens for even light transmission and to prevent discoloration.
  • Optional Type IV, Type V beam spread lens available.
  • Available with Photocell, Bi-Level Dimming, and Sensor Program Remote options.
  • 5 year /50000 hour warranty, and listed with all applicable bodies for safety and performance to qualify for energy-efficient LED lighting rebates.

SPEC SHEET | MORE FILES

Model: MAL04 150W Applications: , Group:

Applications

Premium outdoor luminaire suitable for parking areas, auto dealerships, industrial yards, building exteriors, roadways, alleys, and pedestrian walkways.

Construction

Manufactured for weather-proof durability using solid heavy duty die cast aluminum housing with anti-UV polyester coating to resist water, salt, corrosion, discoloration, and scratching. IP65 Wet Location rated for dust-tight, water-jets: IEC 60529. Vibration Acceleration Rating 3g: IEC 6008-2-6:1995.

Electrical

Input voltages 120-277V with 0-10V Continuous Dimming. Operating temperatures -40°F to 113°F (-40°C to 45°C). Twist-lock top photocell sensor. Shorting Cap for manual switch or timer control.

Mounting

Adjustable options include Slip-Fit Mount, Round /Square Pole Mount, Trunnion Mount, and Straight-Arm Wall Mount.

Optics

Anti-UV Clear Polycarbonate IES /NEMA Type III Lens standard. Type II, Type IV, Type V Lens available.

Controls

PIR Photocell Twist-Lock Top, integrated Microwave Bi-Level Dimming and Motion Detection sensor with Remote Control. Shorting Cap for manual switch or timer control.

Listings

UL certified to meet US and Canadian standards. FCC, CE and RoHS compliant. Listed to qualify for energy-efficient LED lighting rebates.

Warranty

5 yr /50K hrs

Available Color Temperatures

4000K

4000K

5000K

5000K

Mounting Options

Slip-Fit Mount, Adjustable

Square /Round Pole Mount, Straight Arm

Trunnion Mount, Adjustable

Trunnion Mount, Straight Arm

Optional Controls & Sensors

Tenon Mounts and Adapters

4SQR-SP-D

2-3/8-inch O.D. Tenon Adapter for 4-inch Round Pole Top

5SQR-SP-D

2-3/8-inch O.D. Tenon Adapter for 5-inch Round Pole Top

4SQ-SP-D

2-3/8-inch O.D. Tenon Adapter for 4-inch Square Pole Top

5SQ-SP-D

2-3/8-inch O.D. Tenon Adapter for 5-inch Square Pole Top

SP-TR-D

2-3/8-inch O.D. Tenon Adapter for Yoke Mount

SQ-SP-D

2-3/8-inch O.D. Tenon Adapter, Single Horizontal for Square Pole Side

WM-SP-D

2-3/8-inch O.D. Tenon Adapter, Single Horizontal, 90 Degree Wall Mount Bracket

R60-SP2-90-D

2-3/8-inch O.D. Tenon Adapter, Double Horizontal, 90 Degree

R60-SP2-180-D

2-3/8-inch O.D. Tenon Adapter, Double Horizontal, 180 Degree

R60-SP3-90-D

2-3/8-inch O.D. Tenon Adapter, Triple Horizontal, 90 Degree

R60-SP3-120

2-3/8-inch O.D. Tenon Adapter, Triple Horizontal, 120 Degree

R60-SP4-90-D

2-3/8-inch O.D. Tenon Adapter, Quad Horizontal, 90 Degree

Specifications

Additional information

Energy DataInput Voltage: 120-277V
Input Frequency: 50/60 Hz
Wattage: 150W
Power Factor: >0.9
THD: ≤20%
Operating Temperature: -40°F to 113°F (-40°C to 45°C)
Lighting DataLumens: 20800
Efficacy: 139 lm/W
CCT: 4000K, 5000K
Dimmable: 0-10V
CRI: Ra≥70
L70: 50000 hrs
Physical DataColor: Dark Bronze
Lens Type: Polycarbonate
Diffuser: Clear
Rating: IP65 Wet Location
Warranty: 5yr/50K
