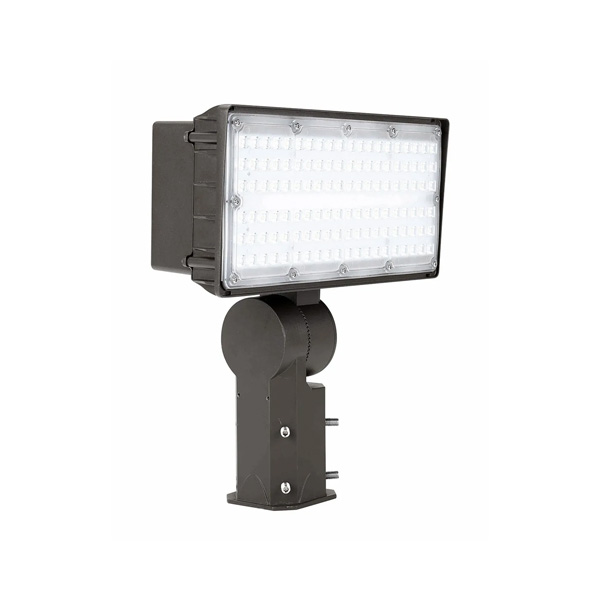

MFD08 100W DIM

MFD08 SERIES - LED Flood Light, 100W, 133 lm/W, IP65 Wet Location, 0-10V Dimmable, Premium Outdoor Luminaire. (120-277V)

In stock

  • The MFD08 100W DIM is an industry-standard dimmable 100W LED Flood Light luminaire producing 133 lumens per watt.
  • Includes a Slip-Fit Mount, optional Trunnion Mount available.
  • Rated IP65 Wet Location and designed with multiple heat-sinks for maximum heat dissipation.
  • Anti-UV Clear Polycarbonate Lens for crisp light transmission and to prevent discoloration.
  • 5 year /50000 hour warranty, and listed with all applicable bodies for safety and performance to qualify for energy-efficient LED lighting rebates.

SPEC SHEET | MORE FILES

Model: MFD08 100W DIM Applications: , Group:

Applications

Premium outdoor luminaire suitable for building exteriors, billboards, accent lighting, pedestrian walkways, parking areas, and industrial yards.

Construction

Manufactured for weather-proof durability using solid heavy duty die cast aluminum housing with anti-UV polyester coating to resist water, salt, corrosion, discoloration, and scratching. IP65 Wet Location rated for dust-tight, water jets: IEC 60529.

Electrical

Input voltages 120-277V with 0-10V Continuous Dimming. Operating temperatures -40°F to 113°F (-40°C to 40°C).

Mounting

Adjustable Slip-Fit Mount standard. Optional Yoke Mount available.

Optics

Anti-UV Clear Polycarbonate Lens.

Controls

Installed Photocell Sensor available.

Listings

UL certified to meet US and Canadian standards. FCC, CE and RoHS compliant. Listed to qualify for energy-efficient LED lighting rebates.

Warranty

5 yr /50K hrs.

Available Color Temperature

5000K

5000K

Optional Controls & Sensors

Specifications

Additional information

Energy DataInput Voltage: 120-277V
Input Frequency: 50/60 Hz
Wattage: 100W
Power Factor: >0.9
THD: ≤20%
Operating Temperature: -4°F to 122°F (-20°C to 50°C)
Lighting DataLumens: 13300
Efficacy: 133 lm/W
CCT: 5000K
Dimmable: 0-10V
CRI: Ra≥70
L70: 50000 hrs
Physical DataColor: Dark Bronze
Lens Type: Polycarbonate
Diffuser: Clear
Rating: IP65 Wet Location
Warranty: 5yr/50K
