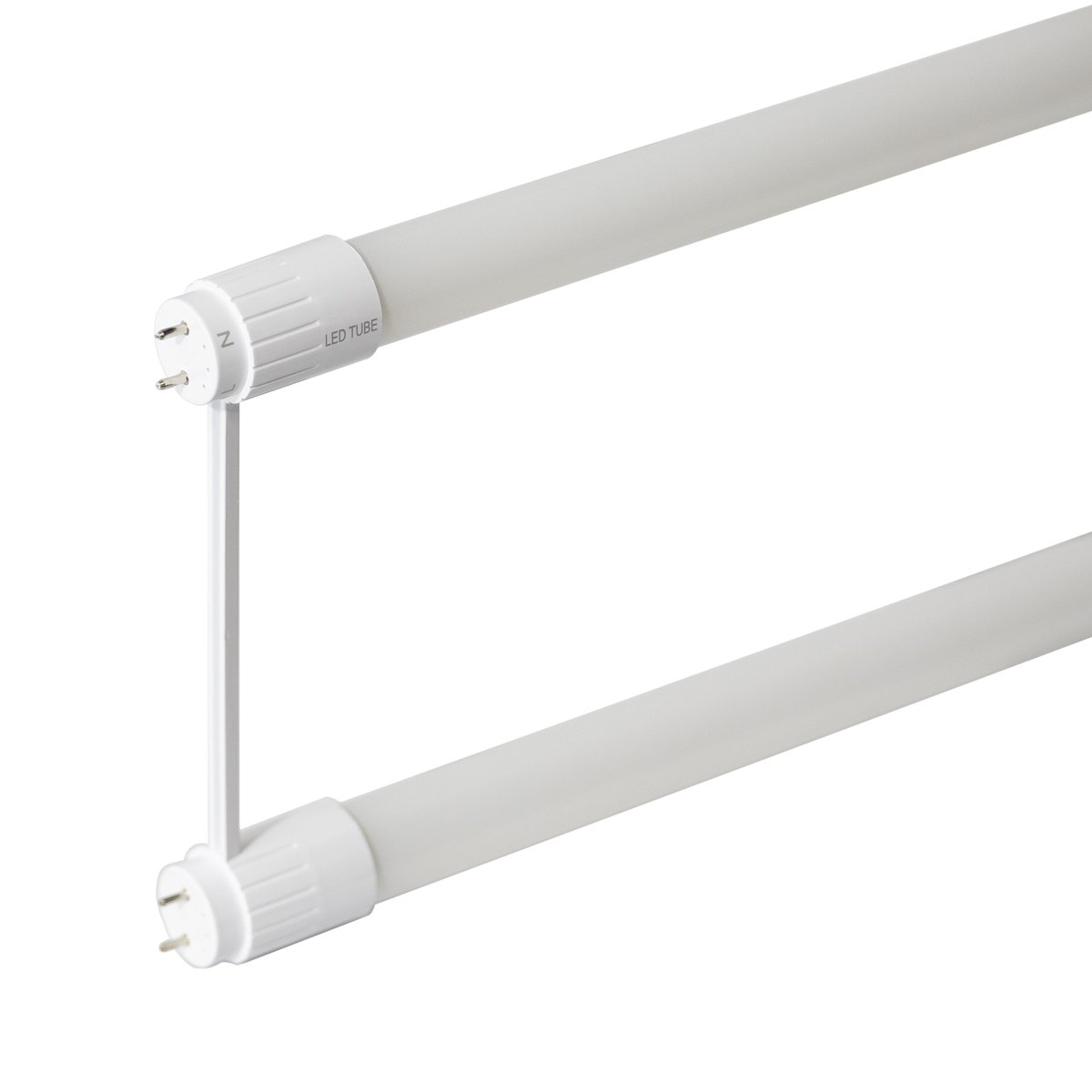

U TRIPLE-PLAY SERIES - LED U6 (2-FT) U-Bend Tube
Roll over image to zoom in
Click to open expanded view

PV-6UB-15WAB1

    TRIPLE-PLAY SERIES - LED U6 Tube, 2-FT, 15W, 125 lm/W, Hybrid Type A+B, Single and Double-Ended Power, NSF Rated Lens, Premium Replacement Lamp. (120-277V)

    In stock

    • The PV-6UB-15WAB1 is an industry-leading 2-FT, 15W LED U6 U-Bend Hybrid (Type-A+B) replacement lamp producing 125 lumens per watt.
    • Ballast compatible with G13 end-caps for Single-Ended power installations.
    • NSF Rated, Anti-UV Frosted PET Coated Tempered Glass Lens for even light transmission and to prevent discoloration.
    • Suitable for replacing U6 fluorescent lamps in commercial and industrial locations.
    • 5 year /50000 hour warranty, and listed with all applicable bodies for safety and performance to qualify for energy-efficient LED lighting rebates.

    SPEC SHEET | MORE FILES

    Model: PV-6UB-15WAB1 Categories: , Tag:

    Applications

    Premium indoor replacement lamp intended to replace 2 foot U6 fluorescent lamps with a G13 base for U-Bend lighting fixtures. Suitable for
    use in U-Bend troffers.

    Construction

    Manufactured for durability and heat dissipation. NSF rated lens for shatter-proof protection.

    Electrical

    Input voltages 120-277V. Type A+B, Hybrid plug and play to operate with or without a ballast. Single or Double-Ended Power installations. Operating temperatures -4°F to 104°F (-20°C to 40°C).

    Optics

    Anti-UV Frosted Tempered Glass with PET Coating, NSF Rated Lens.

    Controls

    Compatible with ON/OFF occupancy sensors.

    Listings

    UL certified to meet US and Canadian standards. FCC, CE and RoHS compliant. Listed to qualify for energy-efficient LED lighting rebates.

    Warranty

    5 yr /50K hrs.

    Available Color Temperatures

    4000K

    4000K

    5000K

    5000K

    Specifications

    Additional information

    Energy DataInput Voltage: 120-277V
    Input Frequency: 50/60 Hz
    Wattage: 15W
    Power Factor: >0.9
    Operating Temperature: -4°F to 104°F (-20°C to 40°C)
    Lighting DataLumens: 1700
    Efficacy: 125 lm/W
    CCT: 4000K, 5000K
    Dimmable: No
    CRI: Ra≥83
    L70: 50000 hrs
    Physical DataSize: 2-FT
    Driver Type: Type A+B (Hybrid)
    Installation: Single and Double-Ended Power
    Color: White
    Lens Type: NSF Rated
    Diffuser: Frosted
    Warranty: 5yr/50K
