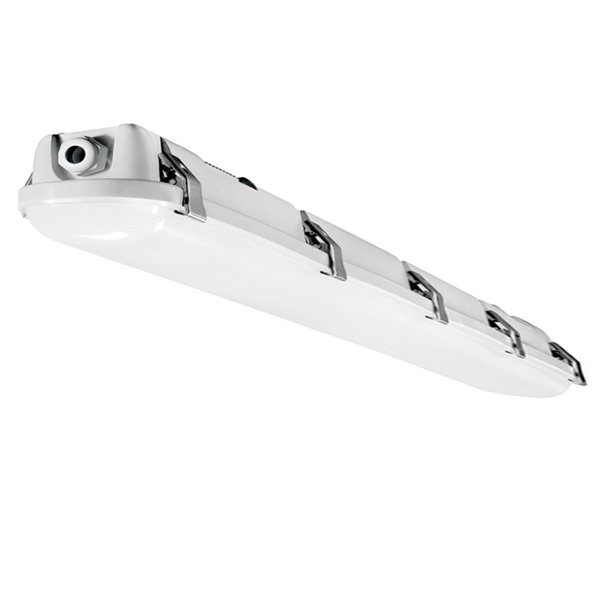

BH48DX-VHO
LED Vapor Tight, 4-FT, 32W, IP65 Wet Location, Light Gray, 0-10V Dimmable (120-277V)
- The BH48DX-VHO is an industry-standard 4-FT, 32W LED Vapor Tight producing 130 lumens per watt and includes Surface Mount clips.
- It has injection molded polycarbonate with stainless steel clips to lock the anti-UV Frosted Polycarbonate Lens for even light transmission, prevent discoloration, and resist dust, moisture and vapors.
- Designed with linear heat-sink for maximum heat dissipation.
- Available with Occupancy, Bi-Level Dimming, Daylight, and Emergency Backup Battery Driver options.
- Suitable for commercial and industrial locations: harsh environments, manufacturing, production, processing, R&D, and wet location.
- 5 year /50000 hour warranty, and listed with all applicable bodies for safety and performance to qualify for energy-efficient LED lighting rebates.
Available Color Temperatures
4000K
5000K
Optional Controls & Sensors
-
IP710-LFZ
LEVITON™ 0-10V Wired Slide Dimmer (120-277V)
-
BRI819P-B-O
PIR On/Off Occupancy Sensor, Max Load 600W (120-277V), IP20 Dry Location, Available as an installed option.
-
BRI819P-B-D
PIR Bi-Level Dimming and Daylight Harvesting Sensor, Max Load 600W (120-277V), IP20 Dry Location, Available as an installed option.
-
ESRPU
EnOcean EasyFit™ Single-Rocker Pad for Self-Powered Wireless Switch
-
EDRPU
EnOcean EasyFit™ Double-Rocker Pad for Self-Powered Wireless Switch
-
ELLSU
EnOcean EasyFit™ Ceiling Mounted Wireless Light Level Sensor (Daylight Harvesting Module)
-
EOSCU
EnOcean EasyFit™ Ceiling Mounted Wireless Occupancy Sensor (CR2032 Battery Optional)
-
EOSWU
EnOcean EasyFit™ Wall Mounted Wireless Occupancy Sensor (CR2032 Battery Optional)
-
LEDDU
EnOcean EasyFit™ Wireless LED Zone Controller 0-10V without Relay - 12V Aux Input
-
LEDRU
EnOcean EasyFit™ Wireless LED Relay Zone Controller with 0-10V Dimming Capability
-
NWC 300U
EnOcean EasyFit™ Navigan™ Wireless Commissioner
Technical Information
Additional information
| Input Voltage | 120-277V |
|---|---|
| Size | 4-FT |
| Wattage | 32W |
| Efficacy | 130 lm/W |
| CCT | 4000K, 5000K |
| Lumens | 4290 |
| Dimmable | 0-10V |
| Color | Light Gray |
| Diffuser | Frosted |
| Lens Type | Polycarbonate |
| IP Rating | Dry Location, IP65 Wet Location |
| Input Frequency | 50/60 Hz |
| CRI | Ra>80 |
| Power Factor | >0.9 |
| L70 | 50000 hrs |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
| Dimensions | 50.00"L x 4.30"W x 2.4"H |
| Warranty | 5yr/50K |
