BH24DX-VHO

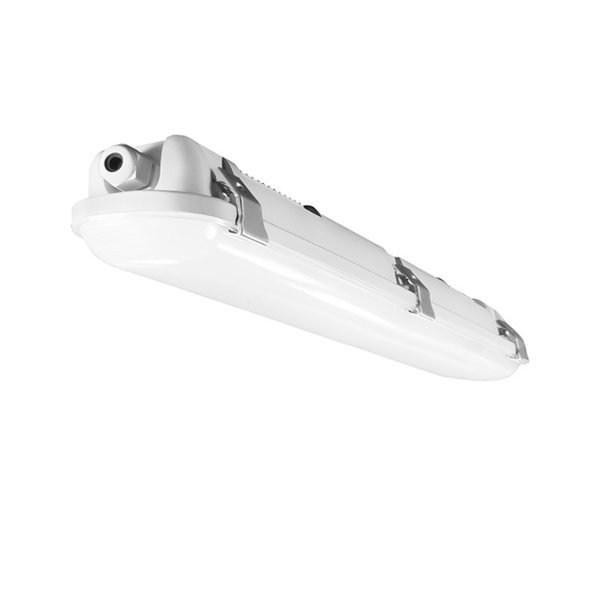

VHO SERIES - LED Vapor Tight, 2-FT, 16W, 130 lm/W, IP65 Wet Locations, 0-10V Dimmable, Premium Indoor Luminaire, Smart Sensor Ready. (120-277V)

In stock

  • The BH48DX-VHO is an industry-standard 2-FT, 16W LED Vapor Tight producing 130 lumens per watt.
  • Includes aluminum Surface Mount clips.
  • Injection molded polycarbonate housing with stainless steel clips to lock the anti-UV Frosted Prismatic Polycarbonate Lens for even light transmission, prevent discoloration, and resist dust, moisture and vapors.
  • IP65 Wet Location rated and designed with linear heat-sink for maximum heat dissipation.
  • Available with Occupancy, Bi-Level Dimming, Daylight, and Emergency Backup Battery Driver options.
  • 5 year /50000 hour warranty, and listed with all applicable bodies for safety and performance to qualify for energy-efficient LED lighting rebates.

SPEC SHEET | MORE FILES

Model: BH24DX-VHO Applications: , Group:

Available Color Temperatures

4000K

4000K

5000K

5000K

Optional Controls & Sensors

  • LEDRU

    EnOcean EasyFit™ Wireless LED Relay Zone Controller with 0-10V Dimming Capability, 902 MHz Frequency

  • LEDDU

    EnOcean EasyFit™ Wireless LED Zone Controller 0-10V without Relay - 12V Aux Input, 902 MHz Frequency

  • EOSCU

    EnOcean EasyFit™ Ceiling Mounted Wireless Occupancy Sensor (CR2032 Battery Optional), 902 MHz Frequency

  • EOSWU

    EnOcean EasyFit™ Wall Mounted Wireless Occupancy Sensor (CR2032 Battery Optional), 902 MHz Frequency

  • ELLSU

    EnOcean EasyFit™ Ceiling Mounted Wireless Light Level Sensor (Daylight Harvesting Module), 902 MHz Frequency

  • ESRPU

    EnOcean EasyFit™ Single-Rocker Pad for Self-Powered Wireless Switch, 902 MHz Frequency

  • EDRPU

    EnOcean EasyFit™ Double-Rocker Pad for Self-Powered Wireless Switch, 902 MHz Frequency

  • NWC 300U

    EnOcean EasyFit™ Navigan™ Wireless Commissioner

Specifications

Additional information

Energy DataInput Voltage: 120-277V
Input Frequency: 50/60 Hz
Wattage: 16W
Power Factor: >0.9
Operating Temperature: -4°F to 122°F (-20°C to 50°C)
Lighting DataLumens: 1850
Efficacy: 130 lm/W
CCT: 4000K, 5000K
Dimmable: 0-10V
CRI: Ra≥80
L70: 50000 hrs
Physical DataSize: 2-FT
Color: Light Gray
Lens Type: Polycarbonate
Diffuser: Frosted, Prismatic
Rating: IP65 Wet Location
Warranty: 5yr/50K
