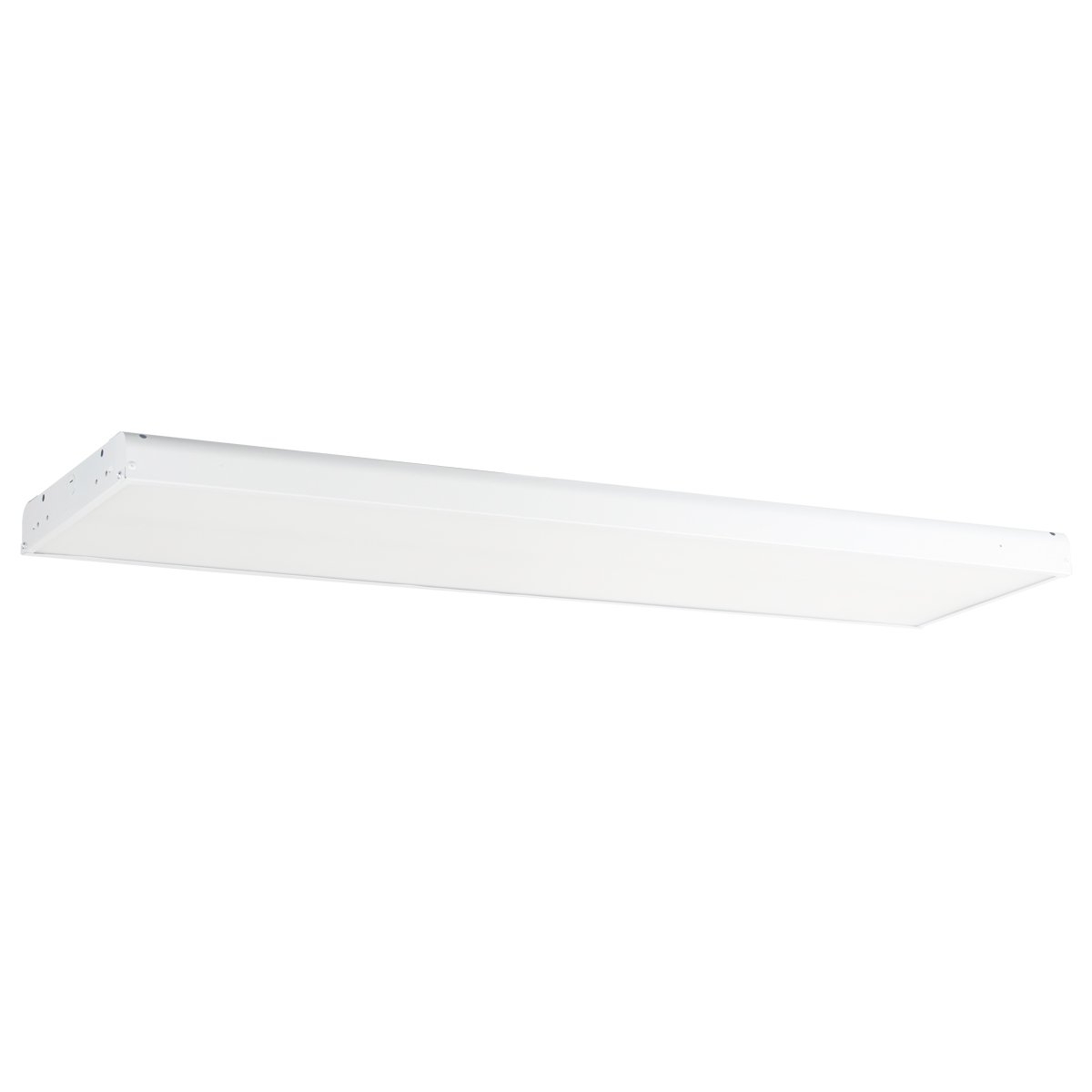

ETH-B11-325W-H

LED Linear High Bay, 4-FT, 325W, IP40 Dry Location, White, 0-10V Dimmable (120-277V)

In stock

  • The ETH-B11-325W-HV-H is an industry-leading 4-FT, 480V, 325W LED Linear High Bay luminaire producing 153 lumens per watt.
  • Includes a pair of V-Hooks and Chains for hanging in high indoor ceiling spaces at or above 25 feet.
  • Optional Pendant Mount Brackets available in white.

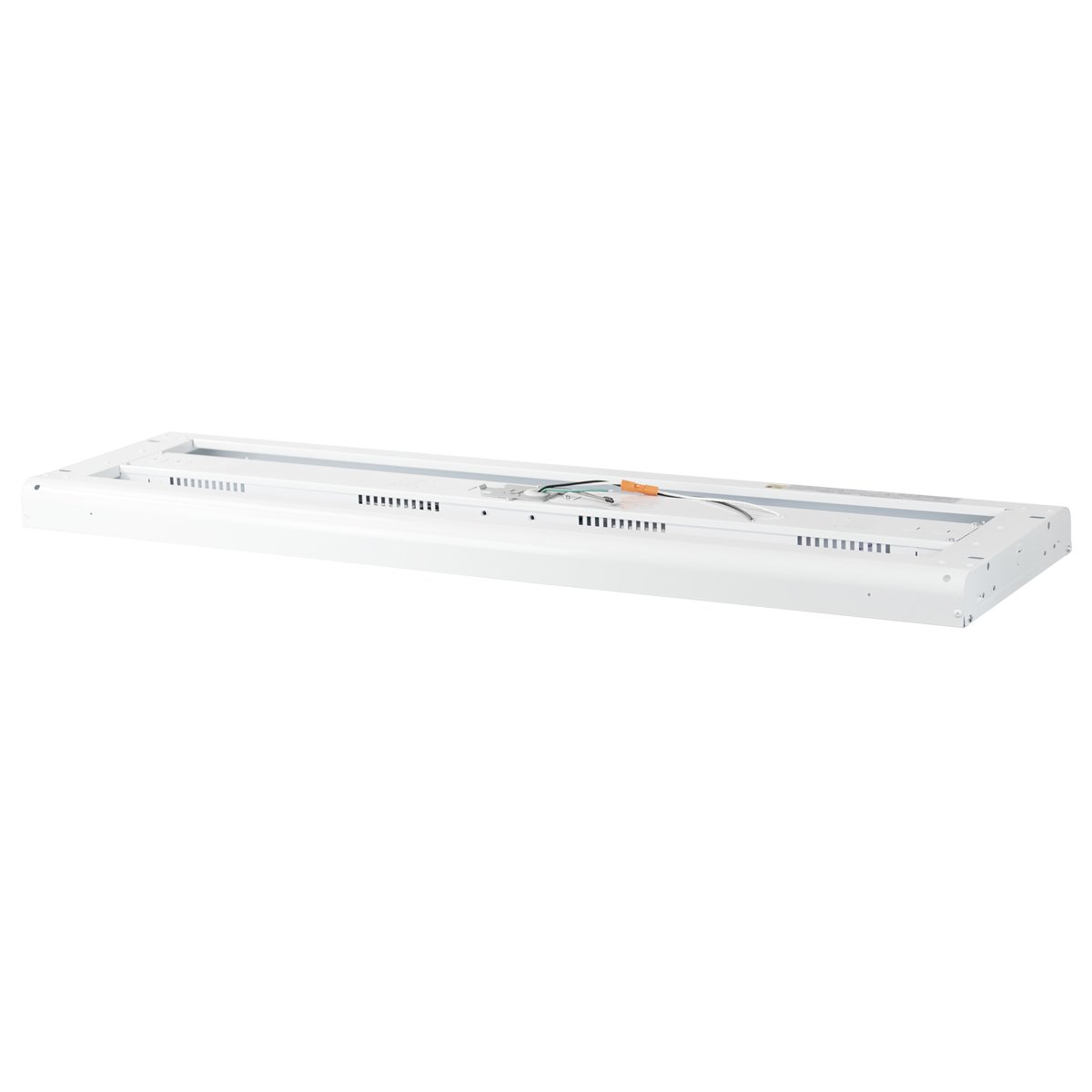

  • Rated IP40 Dry Location and designed with multiple heat-sinks for maximum heat dissipation.
  • It has anti-UV Frosted Polycarbonate Lens for even light transmission and to prevent discoloration, with an optional Wire Guard for added protection.
  • Available with Occupancy, Bi-Level Dimming, Daylight, and Emergency Backup Battery Driver options.
  • Suitable for commercial and industrial locations: gymnasiums, warehouses, manufacturing, packaging, storage, aisles, and covered decks.
  • 7 year /75000 hour warranty, and listed with all applicable bodies for safety and performance to qualify for energy-efficient LED lighting rebates.
Model: ETH-B11-325W-H Applications: , , Group:

Available Color Temperatures

4000K

4000K

5000K

5000K

Optional Controls & Sensors

  • HB011-PDX

    LEVITON™ PIR Fixture Mount, Dimming Sensor with Daylight Harvesting (120-230-277-347V)

  • HB0LA-PDX

    LEVITON™ PIR Fixture Mount Dimming Sensor with Daylight Harvesting with Snap Lock Offset Adapter (120-230-277-347V)

  • OSHFU-ITW

    LEVITON™ PIR Fixture Mount Occupancy Sensor (120-347V)

  • OSFLA-ITW

    LEVITON™ PIR Fixture Mount Occupancy Sensor with Snap Lock Offset Adapter (120-347V)

  • OSFLO-W

    LEVITON™ Snap-Lock Offset Adapter For OSHFU Sensor

  • ESRPU

    EnOcean EasyFit™ Single-Rocker Pad for Self-Powered Wireless Switch

  • EDRPU

    EnOcean EasyFit™ Double-Rocker Pad for Self-Powered Wireless Switch

  • ELLSU

    EnOcean EasyFit™ Ceiling Mounted Wireless Light Level Sensor (Daylight Harvesting Module)

  • EOSCU

    EnOcean EasyFit™ Ceiling Mounted Wireless Occupancy Sensor (CR2032 Battery Optional)

  • EOSWU

    EnOcean EasyFit™ Wall Mounted Wireless Occupancy Sensor (CR2032 Battery Optional)

  • LEDDU

    EnOcean EasyFit™ Wireless LED Zone Controller 0-10V without Relay - 12V Aux Input

  • LEDRU

    EnOcean EasyFit™ Wireless LED Relay Zone Controller with 0-10V Dimming Capability

  • NWC 300U

    EnOcean EasyFit™ Navigan™ Wireless Commissioner

Technical Information

Additional information

Input Voltage

120-277V

Size

4-FT

Wattage

325W

Efficacy

153 lm/W

CCT

4000K, 5000K

Lumens

49725

Dimmable

0-10V

Color

White

Diffuser

Frosted

Lens Type

Polycarbonate

IP Rating

Dry Location, IP40 Dry Location

Input Frequency

50/60 Hz

CRI

Ra>80

THD

<15%

Power Factor

>0.9

L70

75000 hrs

Mounting Height

≥25-FT

Operating Temperature

-4°F to 104°F (-20°C to 40°C)

Dimensions

45.75"L x 17.76"W x 3.00"H

Net Weight

21.25 lbs

Warranty

7yr/75K
