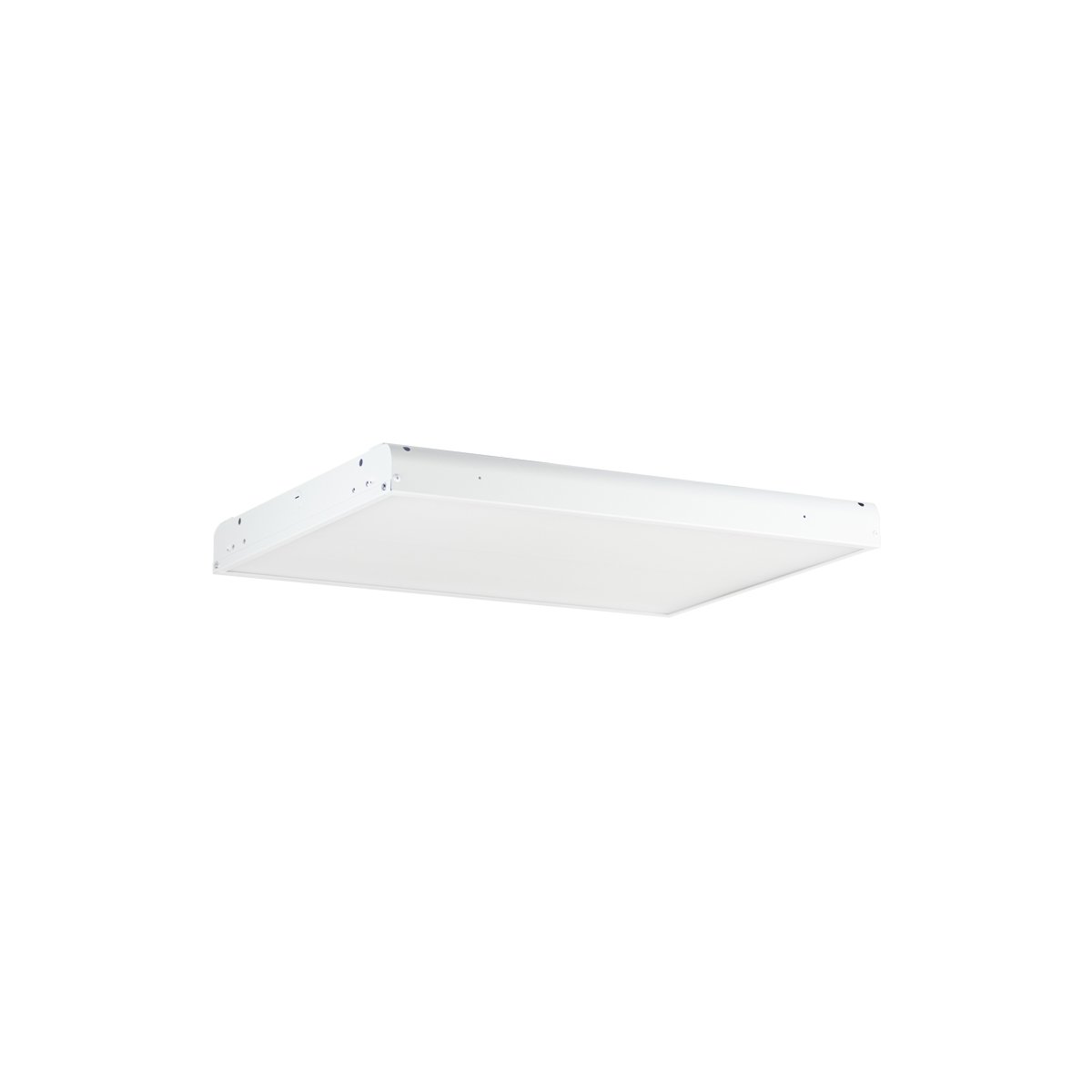

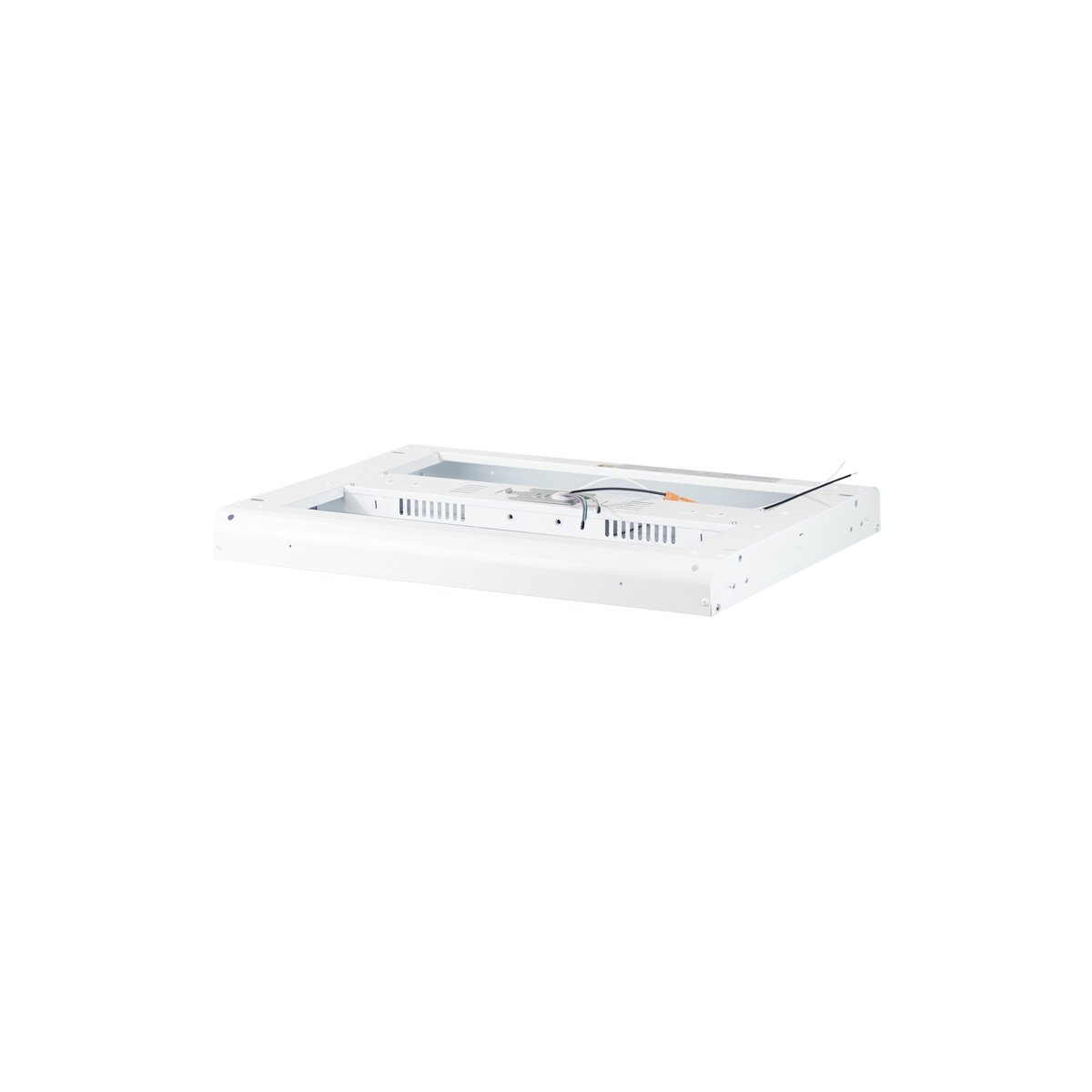

ETH-B05-165W-H
LED Linear High Bay, 2-FT, 165W, IP40 Dry Location, White, 0-10V Dimmable (120-277V)
- The ETH-B05-165W-H is an industry-leading 2-FT, 165W LED Linear High Bay luminaire producing 150 lumens per watt.
- Includes a pair of V-Hooks and Chains for hanging in high indoor ceiling spaces at or above 25 feet.
- Optional Pendant Mount Brackets available in white.
- Rated IP40 Dry Location and designed with multiple heat-sinks for maximum heat dissipation.
- It has anti-UV Frosted Polycarbonate Lens for even light transmission and to prevent discoloration, with an optional Wire Guard for added protection.
- Available with Occupancy, Bi-Level Dimming, Daylight, and Emergency Backup Battery Driver options.
- Suitable for commercial and industrial locations: gymnasiums, warehouses, manufacturing, packaging, storage, aisles, and covered decks.
- 7 year /75000 hour warranty, and listed with all applicable bodies for safety and performance to qualify for energy-efficient LED lighting rebates.
Available Color Temperatures
4000K
5000K
Optional Controls & Sensors
-
HB011-PDX
LEVITON™ PIR Fixture Mount, Dimming Sensor with Daylight Harvesting (120-230-277-347V)
-
HB0LA-PDX
LEVITON™ PIR Fixture Mount Dimming Sensor with Daylight Harvesting with Snap Lock Offset Adapter (120-230-277-347V)
-
OSHFU-ITW
LEVITON™ PIR Fixture Mount Occupancy Sensor (120-347V)
-
OSFLA-ITW
LEVITON™ PIR Fixture Mount Occupancy Sensor with Snap Lock Offset Adapter (120-347V)
-
OSFLO-W
LEVITON™ Snap-Lock Offset Adapter For OSHFU Sensor
-
ESRPU
EnOcean EasyFit™ Single-Rocker Pad for Self-Powered Wireless Switch
-
EDRPU
EnOcean EasyFit™ Double-Rocker Pad for Self-Powered Wireless Switch
-
ELLSU
EnOcean EasyFit™ Ceiling Mounted Wireless Light Level Sensor (Daylight Harvesting Module)
-
EOSCU
EnOcean EasyFit™ Ceiling Mounted Wireless Occupancy Sensor (CR2032 Battery Optional)
-
EOSWU
EnOcean EasyFit™ Wall Mounted Wireless Occupancy Sensor (CR2032 Battery Optional)
-
LEDDU
EnOcean EasyFit™ Wireless LED Zone Controller 0-10V without Relay - 12V Aux Input
-
LEDRU
EnOcean EasyFit™ Wireless LED Relay Zone Controller with 0-10V Dimming Capability
-
NWC 300U
EnOcean EasyFit™ Navigan™ Wireless Commissioner
Technical Information
Additional information
| Input Voltage | 120-277V |
|---|---|
| Size | 2-FT |
| Wattage | 165W |
| Efficacy | 150 lm/W |
| CCT | 4000K, 5000K |
| Lumens | 24750 |
| Dimmable | 0-10V |
| Color | White |
| Diffuser | Frosted |
| Lens Type | Polycarbonate |
| IP Rating | Dry Location, IP40 Dry Location |
| Input Frequency | 50/60 Hz |
| CRI | Ra>80 |
| THD | <15% |
| Power Factor | >0.9 |
| L70 | 75000 hrs |
| Mounting Height | ≥25-FT |
| Operating Temperature | -4°F to 104°F (-20°C to 40°C) |
| Dimensions | 23.82"L x 17.32"W x 3.00"H |
| Net Weight | 8.94 lbs |
| Warranty | 7yr/75K |
