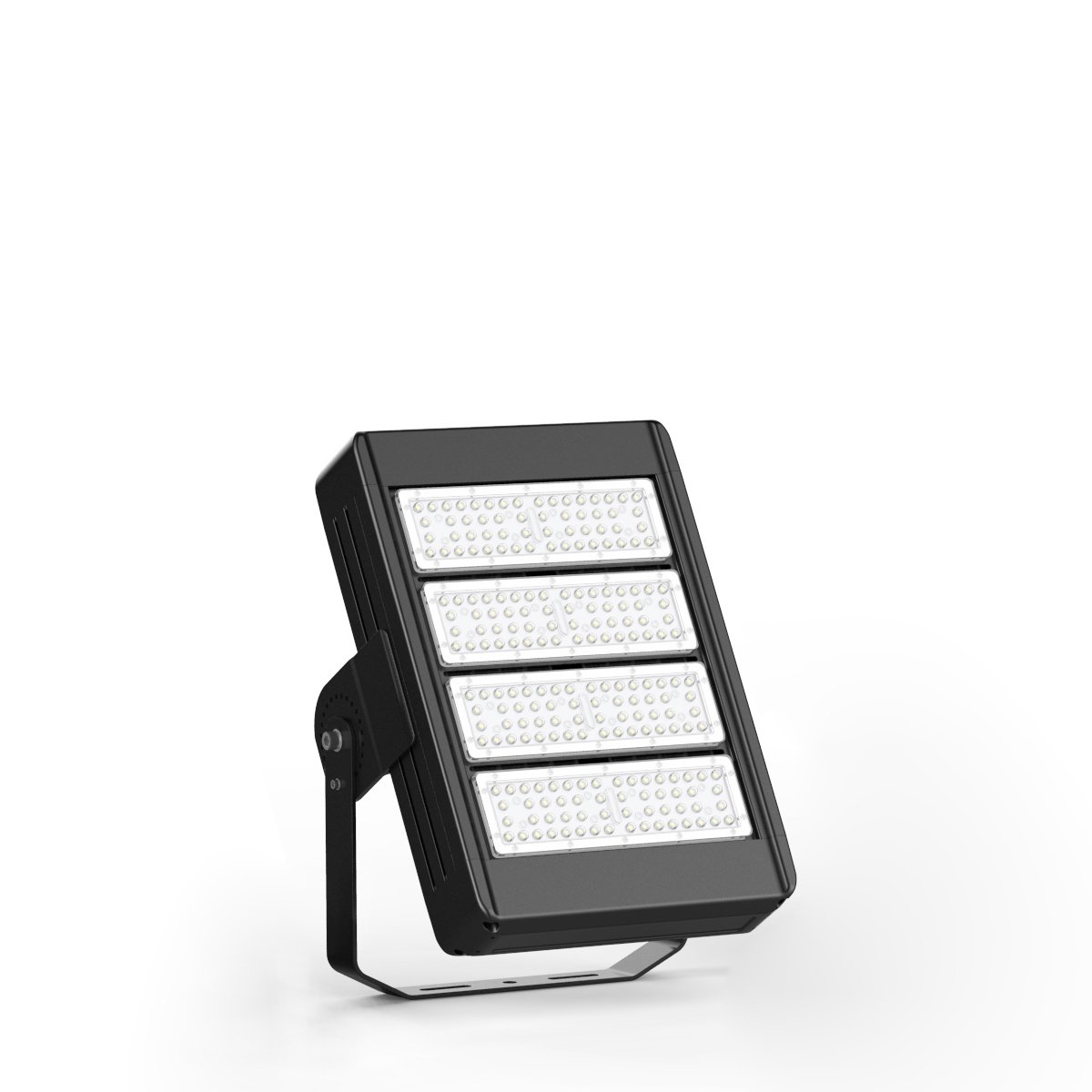

E2-PFL-240W-5000K-D
LED Stadium Light, 240W, IP67 Wet Location, Black, 0-10V Dimmable (120-277V)
- The E2-PFL-240W-5000K-D is an industry-standard 240W LED Stadium Light luminaire producing 132 lumens per watt.
- Includes a Trunnion Mount.
- Rated IP67 Wet Location, designed with wide heat-sinks for maximum heat dissipation.
- Includes anti-UV Clear Polycarbonate Lens for crisp light transmission and to prevent discoloration.
- Suitable for outdoor commercial and industrial locations: stadiums, industrial yards, and parking areas.
- 5 year /50000 hour warranty, and listed with all applicable bodies for safety and performance to qualify for energy-efficient LED lighting rebates.
- Optional 480V model available upon request.
Available Color Temperature
5000K
Technical Information
Additional information
| Input Voltage | 120-277V |
|---|---|
| Wattage | 240W |
| Efficacy | 132 lm/W |
| CCT | 5000K |
| Lumens | 32141 |
| Dimmable | 0-10V |
| Color | Black |
| Diffuser | Clear |
| Lens Type | Polycarbonate |
| IP Rating | Dry Location, IP67 Wet Location |
| Input Frequency | 50/60 Hz |
| CRI | Ra>70 |
| THD | <20% |
| Power Factor | >0.9 |
| L70 | 50000 hrs |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
| Dimensions | 18.90"L x 12.60"W x 3.54"D |
| Net Weight | 23.81 lbs |
| Warranty | 5yr/50K |
