FI-LED-26100 3CCT

3 SERIES - LED 3-CCT Heavy Duty Flood Light, 100W, 145 lm/W, IP65 Wet Location, 1-10V Dimmable, Premium Outdoor Luminaire. (120-277V)

In stock

  • The FI-LED-26100 3CCT is an industry-leading dimmable 100W LED 3-CCT Heavy Duty Flood Light luminaire producing 145 lumens per watt.

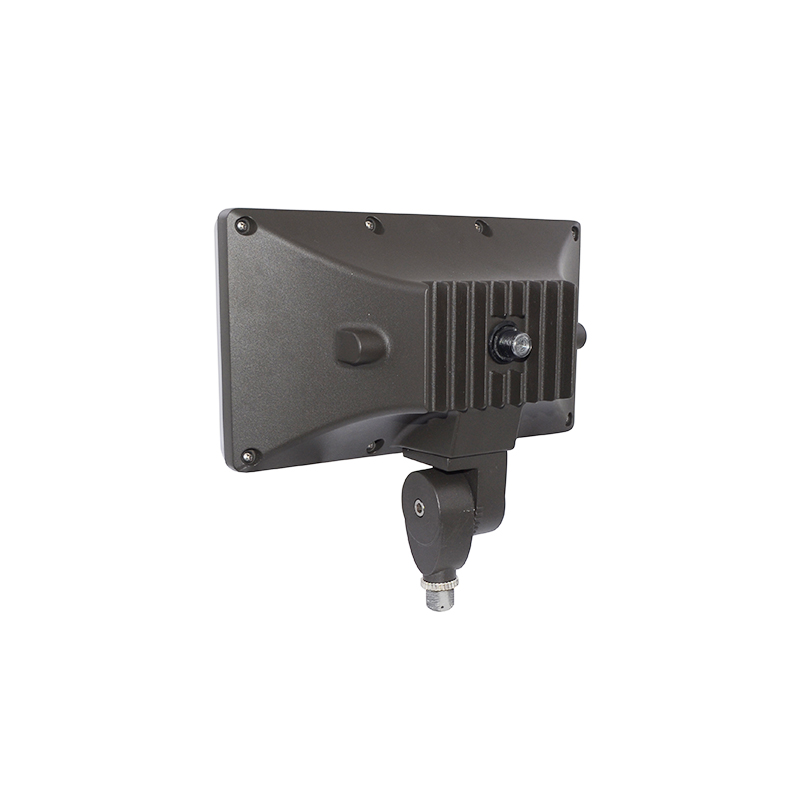

  • Includes a Knuckle Mount, optional Trunnion Mount or Slip-Fit Mount available.
  • Rated IP65 Wet Location and designed with multiple heat-sinks for maximum heat dissipation.
  • Anti-UV Frosted Polycarbonate Lens for even light transmission and to prevent discoloration.
  • 5 year /50000 hour warranty, and listed with all applicable bodies for safety and performance to qualify for energy-efficient LED lighting rebates.

SPEC SHEET | MORE FILES

Model: FI-LED-26100 3CCT Categories: , Tag:

Applications

Premium outdoor luminaire suitable for building exteriors, billboards, accent lighting, pedestrian walkways.

Construction

Manufactured for weather-proof durability using solid heavy duty die cast aluminum housing with anti-UV polyester coating to resist water, salt, corrosion, discoloration, and scratching. IP65 Wet Location rated for dust-tight, water jets: IEC 60529.

Electrical

Input voltages 120-277V with 1-10V Continuous Tunable 3-CCT (3000K, 4000K, 5000K). Operating temperatures -40°F to 104°F (-40°C to 40°C).

Mounting

Adjustable Knuckle Mount, Trunnion Mount, or Slip-Fit Mount available.

Optics

Anti-UV Frosted Polycarbonate Lens.

Controls

Installed Photocell Sensor available.

Listings

UL certified to meet US and Canadian standards. FCC, and RoHS compliant. Listed to qualify for energy-efficient LED lighting rebates.

Warranty

5 yr /50K hrs.

Tunable Color Temperatures

3000K

4000K

5000K

5000K

Optional Controls & Sensors

Specifications

Additional information

Energy DataInput Voltage: 120-277V
Input Frequency: 50/60 Hz
Wattage: 100W
Power Factor: >0.9
THD: ≤20%
Operating Temperature: -40°F to 104°F (-40°C to 40°C)
Lighting DataLumens: 13037
Efficacy: 145 lm/W
CCT: 3-CCT Select, 3000K, 4000K, 5000K
Dimmable: 1-10V
CRI: Ra≥70
L70: 50000 hrs
Physical DataColor: Dark Bronze
Lens Type: Polycarbonate
Diffuser: Frosted
Rating: IP65 Wet Location
Warranty: 5yr/50K
