FI-CPS-D10W-3CCT

3 SERIES - LED 3-CCT Commercial Down Light, 10W, 80 lm/W, Damp Rated, Select 3X-CCT, 0-10V Dimmable, Premium Indoor Luminaire, Smart Sensor Ready. (120-347V)

In stock

  • The FI-CPS-D10W-3CCT is an innovative commercial-grade 10W, 3-CCT Tunable LED Down Light Engine producing 80 lumens per watt.

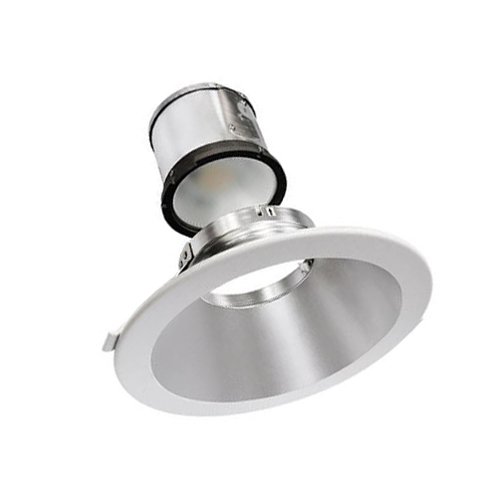

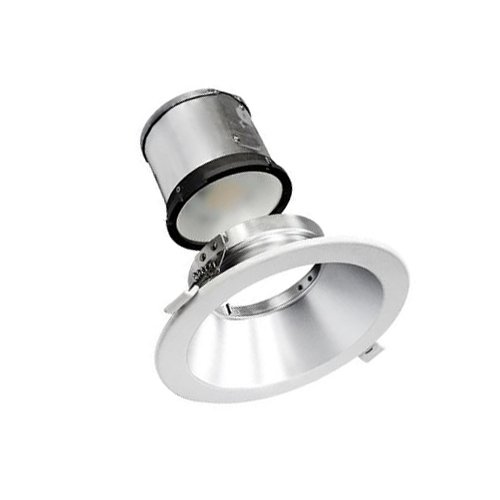

  • 3X-CCT Tunable (Select between 3000K, 4000K, 5000K) with 4-in, 6-in, 8-in, or 10-in Trim options that include Round Reflector Trims, Square Reflector Trims, or Wall Washer Trims.
  • Includes quick set spring-arms for installation without down light housing.
  • Anti-UV Frosted Polycarbonate Lens for even light transmission and to prevent discoloration.
  • Designed with an integrated J-Box with heat-sinks for maximum heat dissipation.
  • 5 year /50000 hour warranty, and listed with all applicable bodies for safety and performance to qualify for energy-efficient LED lighting rebates.

SPEC SHEET | MORE FILES

Model: FI-CPS-D10W-3CCT Applications: , Group:

Applications

Premium indoor luminaire for recessed mounting in ceiling spaces. Suitable for general indoor, lobbies, offices, meeting rooms, restrooms, hallways, hospitals, airports, hotels, restaurants and shopping centers.

Construction

Interchangeable Light Engine with built-in junction box and Trim options. Manufactured for durability using aluminum sheet housing with satin white trim lip to resist corrosion, discoloration, and scratching. Damp Rated. Deep recessed lens to minimize ambient glare.

Electrical

Input voltage 120-347V models with 0-10V Continuous Dimming. Includes 3X-CCT Tuning Switch on Engine Housing. Operating temperatures -4°F to 113°F (-20°C to 45°C).

Mounting

Quick installation spring-bars for installations without housing. Round Reflector Trims for 4-in, 6-in, 8-in, and 10-in available. Square Reflector Trims for 4-in and 6-in available. Round Wall Washers for 4-in and 6-in available. Square Wall Washers 4-in and 6-in available. Installation Frames for New Construction available in 4-in, 6-in, and 8-in.

Optics

Anti-UV Frosted Polycarbonate Lens.

Listings

UL certified to meet US and Canadian standards. FCC, CE and RoHS compliant. ENERGY STAR listed to qualify for energy-efficient LED lighting rebates.

Warranty

5 yr /50K hrs.

Tunable Color Temperatures

3000K

3000K

4000K

4000K

5000K

5000K

Optional Controls & Sensors

  • IP710-LFZ

    LEVITON™ 0-10V Wired Slide Dimmer (120-277V)

  • LEDRU

    EnOcean EasyFit™ Wireless LED Relay Zone Controller with 0-10V Dimming Capability, 902 MHz Frequency

  • LEDDU

    EnOcean EasyFit™ Wireless LED Zone Controller 0-10V without Relay - 12V Aux Input, 902 MHz Frequency

  • EOSCU

    EnOcean EasyFit™ Ceiling Mounted Wireless Occupancy Sensor (CR2032 Battery Optional), 902 MHz Frequency

  • EOSWU

    EnOcean EasyFit™ Wall Mounted Wireless Occupancy Sensor (CR2032 Battery Optional), 902 MHz Frequency

  • ELLSU

    EnOcean EasyFit™ Ceiling Mounted Wireless Light Level Sensor (Daylight Harvesting Module), 902 MHz Frequency

  • ESRPU

    EnOcean EasyFit™ Single-Rocker Pad for Self-Powered Wireless Switch, 902 MHz Frequency

  • EDRPU

    EnOcean EasyFit™ Double-Rocker Pad for Self-Powered Wireless Switch, 902 MHz Frequency

  • NWC 300U

    EnOcean EasyFit™ Navigan™ Wireless Commissioner

Specifications

Additional information

Energy DataInput Voltage: 120-347V
Input Frequency: 50/60 Hz
Wattage: 10W
Power Factor: >0.9
THD: ≤20%
Operating Temperature: -4°F to 113°F (-20°C to 45°C)
Lighting DataLumens: 800
Efficacy: 80 lm/W
CCT: 3-CCT Select, 3000K, 4000K, 5000K
Dimmable: 0-10V
CRI: Ra≥80
L70: 50000 hrs
Physical DataSize: 4-in, 6-in, 8-in, 10-in
Color: Silver with White Lip Trim
Lens Type: Polycarbonate
Diffuser: Frosted
Rating: Damp Rated
Warranty: 5yr/50K
