ETH-TRK-14-25W

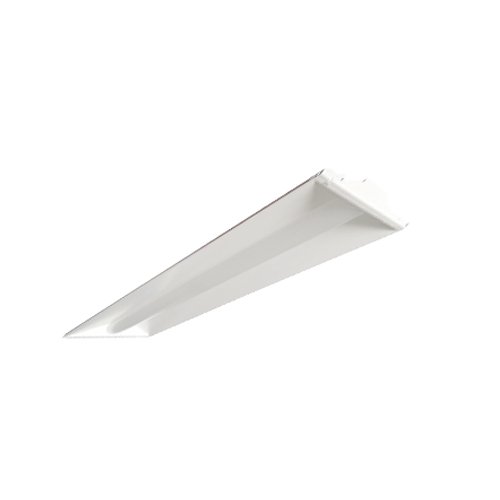

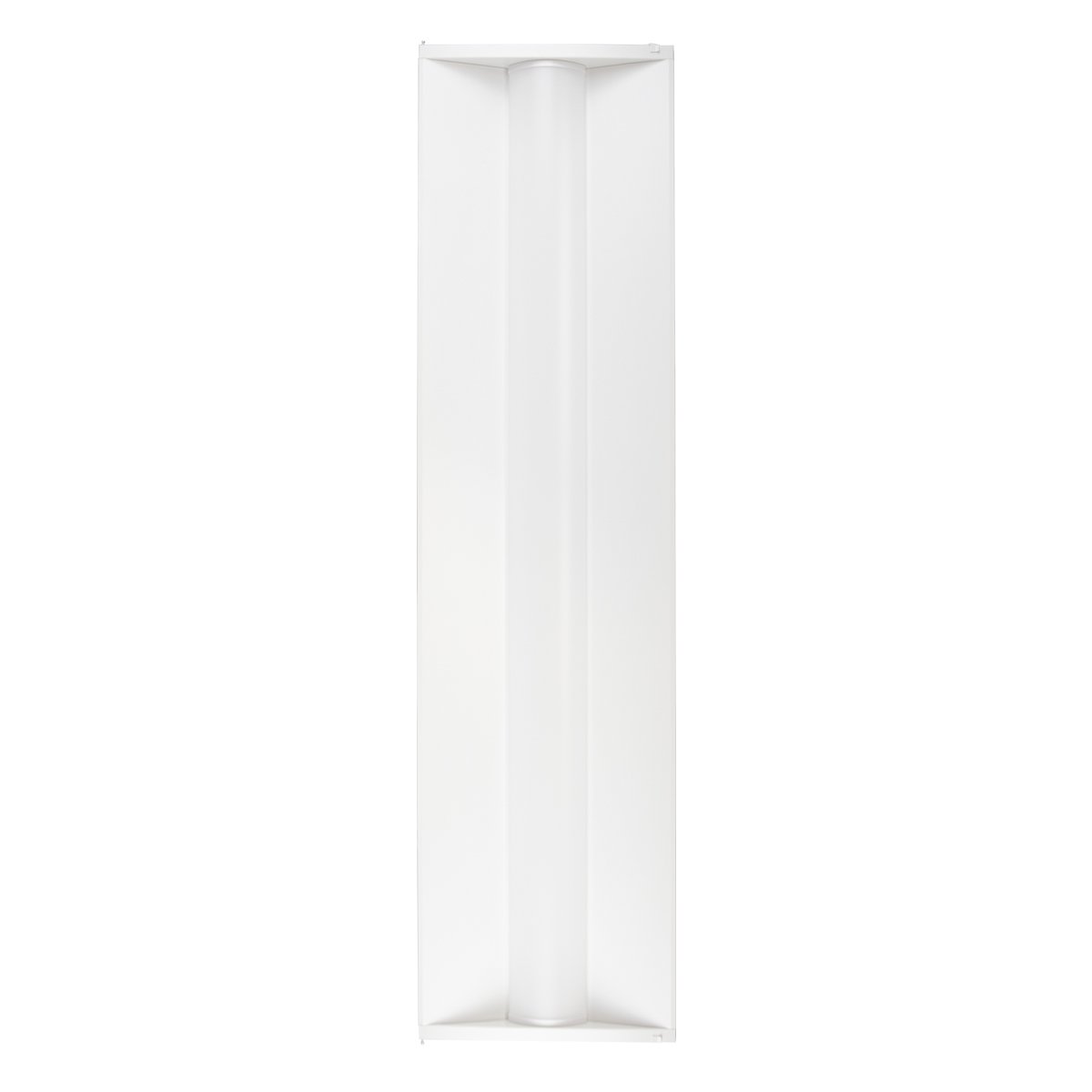

TRK G2 SERIES - LED Troffer Retrofit Kit, 1x4, 25W, 130 lm/W, 0-10V Dimmable, Premium Indoor Retrofit, Smart Sensor Ready. (120-277V)

Out of stock

  • The ETH-TRK-14-25W is an industry-leading 1×4, 25W LED Single-Basket Troffer Retrofit Kit producing 130 lumens per watt.
  • Includes a retrofit frame plates and self-tapping screws for easy mounting into existing fluorescent troffers and T-Bars.
  • Anti-UV Frosted Polycarbonate Lens for even light transmission and to prevent discoloration.
  • Designed with wide heat-sinks for maximum heat dissipation.
  • Available with integrated Occupancy Sensor option.
  • 7 year /75000 hour warranty, and listed with all applicable bodies for safety and performance to qualify for energy-efficient LED lighting rebates.
Model: ETH-TRK-14-25W Categories: , Tag:

Applications

Premium indoor luminaire suitable for general indoor commercial spaces, lobbies, offices, meeting rooms, schools, retail stores, restrooms, hallways, and workstations.

Construction

Manufactured for durability using aluminum sheet housing with satin coating to resist corrosion, discoloration, and scratching. Center-Basket Design. For use in Dry Locations.

Electrical

Input voltages 120-277V with 0-10V Continuous Dimming. Operating temperatures -4°F to 122°F (-20°C to 50°C).

Mounting

Integrated retrofit kit for existing 2×2 troffers with Self-Tapping Screws. Includes Side and End T-Bar Frame Plates.

Optics

Anti-UV Frosted Polycarbonate Lens.

Listings

UL certified to meet US and Canadian standards. FCC, CE and RoHS compliant. Listed to qualify for energy-efficient LED lighting rebates.

Warranty

7 yr /75K hrs.

Available Color Temperatures

4000K

4000K

5000K

5000K

Specifications

Additional information

Energy DataInput Voltage: 120-277V
Input Frequency: 50/60 Hz
Wattage: 25W
Power Factor: >0.9
THD: ≤10%
Operating Temperature: -4°F to 122°F (-20°C to 50°C)
Lighting DataLumens: 3250
Efficacy: 130 lm/W
CCT: 4000K, 5000K
Dimmable: 0-10V
CRI: Ra≥82
L70: 75000 hrs
Physical DataSize: 1×4
Color: White
Lens Type: Polycarbonate
Diffuser: Frosted
Warranty: 7yr/75K
