FC-16-30W-MCT

    FC SERIES - LED 3-CCT Ceiling Disk Light, 16-in, 30W, 77 lm/W, Select 3X-CCT (3000K, 4000K, 5000K), Triac Dimming, Premium Indoor Luminaire, Smart Sensor Ready. (120V)

    In stock

    • The FC-16-30W-MCT is an industry-leading 30W LED 3-CCT Ceiling Disk Light luminaire producing 77 lumens per watt.
    • 3X-CCT Tunable (Select between 3000K, 4000K, 5000K) with 16-in, 6-in, 8-in, or 10-in Trim.

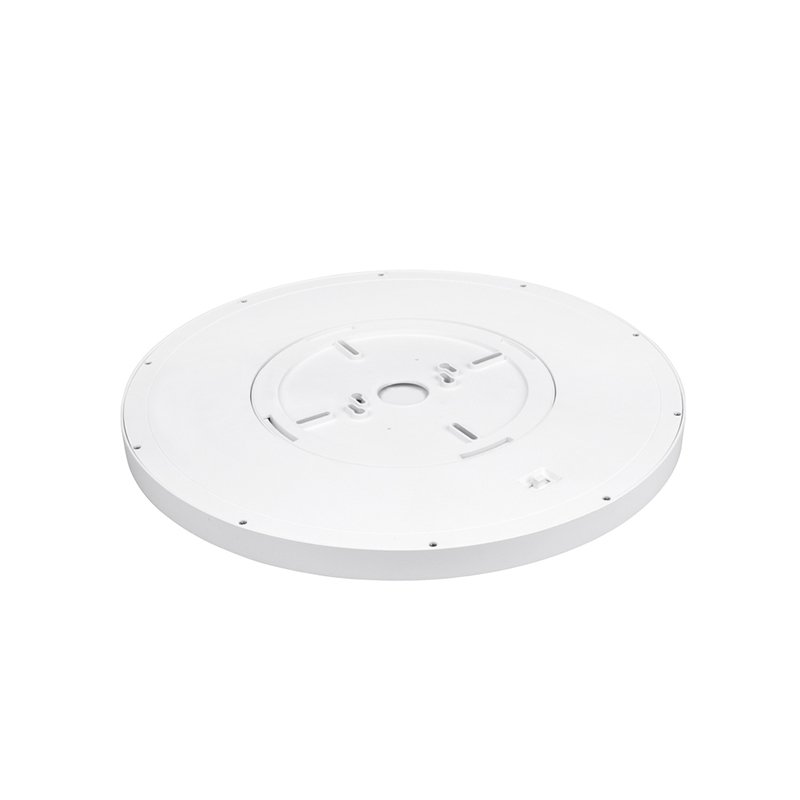

    • Includes a Mount Plate for flush mounting on ceiling junction box.
    • Anti-UV Frosted Polycarbonate Lens for clear light transmission and to prevent discoloration.
    • 5 year /50000 hour warranty, and listed with all applicable bodies for safety and performance to qualify for energy-efficient LED lighting rebates.

    SPEC SHEET | MORE FILES

    Model: FC-16-30W-MCT Categories: , Tag:

    Applications

    Premium indoor luminaire suitable for general indoor ceilings.

    Construction

    Manufactured for durability using polycarbonate injection molding. For use in Dry and Damp Locations.

    Electrical

    Input voltages 120V with Triac Step-Dimming. Includes 3X-CCT Tuning Switches.

    Mounting

    Mounts directly on Ceiling Junction Box.

    Optics

    Anti-UV Frosted Polycarbonate Lens.

    Listings

    ETL certified to meet US and Canadian standards. FCC, and RoHS compliant. Listed to qualify for energy-efficient LED lighting rebates.

    Warranty

    5 yr /50K hrs.

    Available Color Temperatures

    3000K

    4000K

    5000K

    5000K

    Specifications

    Additional information

    Energy DataInput Voltage: 120V
    Input Frequency: 50/60 Hz
    Wattage: 30W
    Power Factor: >0.9
    THD: ≤20%
    Lighting DataLumens: 2300
    Efficacy: 77 lm/W
    CCT: 3-CCT Select, 3000K, 4000K, 5000K
    Dimmable: Triac (Step-Dimming)
    CRI: Ra≥80
    L70: 50000 hrs
    Physical DataColor: White
    Lens Type: Polycarbonate
    Diffuser: Frosted
    Rating: Damp Location
    Warranty: 5yr/50K
