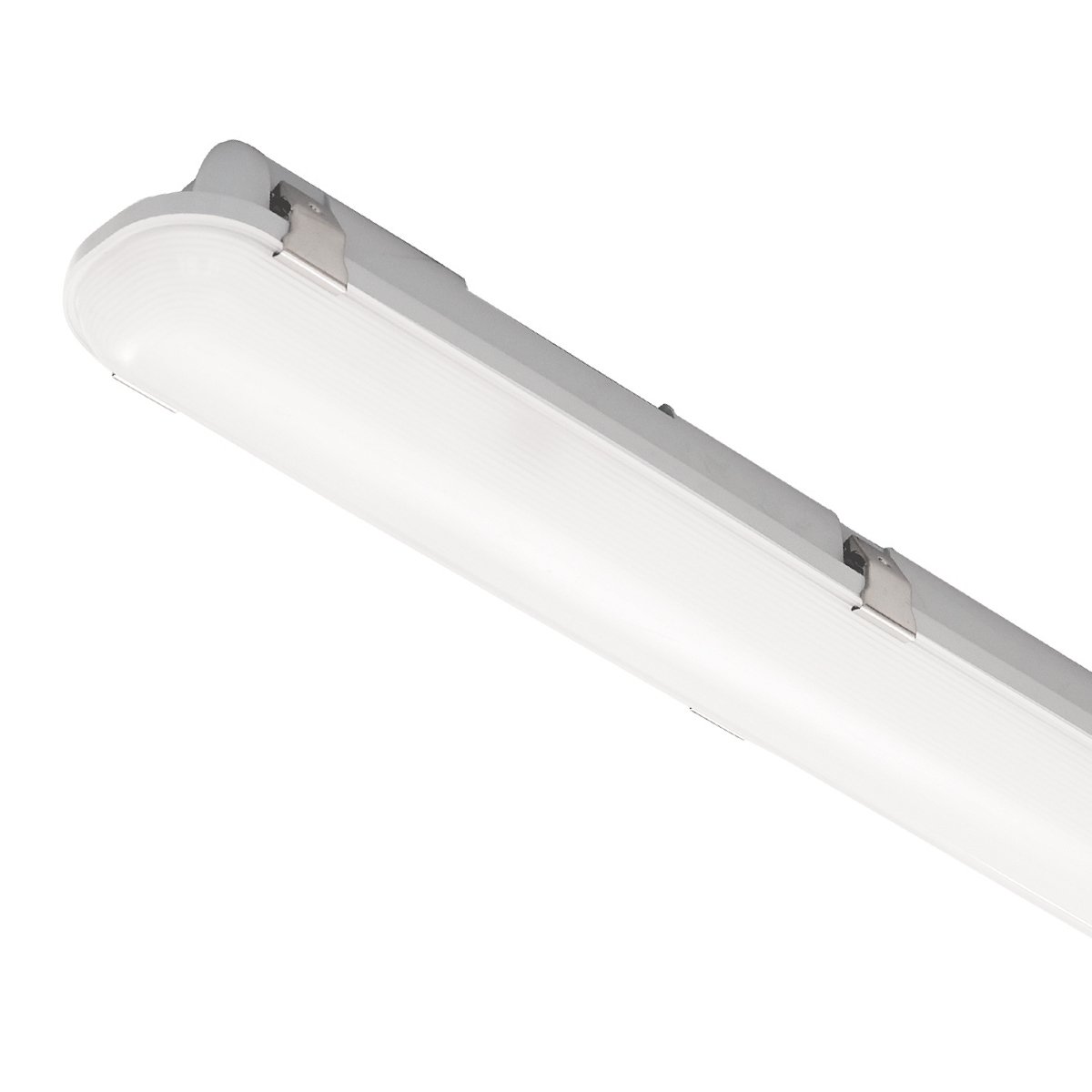

ETH-TVT-8F-90W

    TRILUM SERIES - LED Tunable Vapor Tight, 8-FT, 90W Max, 130 lm/W, Select 3X-CCT and 3X-Wattages, UL Wet Location, 0-10V Dimmable, Premium Indoor Luminaire, Smart Sensor Ready. (120-277V)

    In stock

    • The ETH-TVT-8F-90W is an industry-leading 8-FT, Tunable 90W Max LED Vapor Tight luminaire producing 130 lumens per watt.
    • 9X-Total Tunable Setting Combinations: 3X-Wattage Tunable (Select between 65W, 75W, 90W) and 3X-CCT Tunable (Select between 3500K, 4000K, 5000K)
    • Includes aluminum Surface Mount clips and V-Hooks and Cables for hanging..
    • Injection molded polycarbonate housing with stainless steel clips to lock the anti-UV Frosted Prismatic Polycarbonate Lens for even light transmission, prevent discoloration, and resist dust, moisture and vapors.
    • UL Wet Location rated and designed with linear heat-sink for maximum heat dissipation.
    • Available with Occupancy, Bi-Level Dimming, and Daylight Sensor options.
    • 7 year /75000 hour warranty, and listed with all applicable bodies for safety and performance to qualify for energy-efficient LED lighting rebates.

    SPEC SHEET | MORE FILES

    Model: ETH-TVT-8F-90W Categories: , Tag:

    Applications

    Premium indoor luminaire for hanging or surface mounting in ceiling spaces less than 25 feet. Suitable for harsh environments: manufacturing, production, processing, R&D, and parking garages.

    Construction

    Manufactured for durability in harsh environments with injection molded polycarbonate housing to resist corrosion, discoloration, and scratching. Integrated lens cover to resist dust, moisture and vapors. UL Wet Location rated.

    Electrical

    Input voltage 120-277V models with Non-Dimmable or 0-10V Continuous Dimming. Includes 3X-Wattage and 3X-CCT Tuning Switch inside housing. Operating temperatures -40°F to 104°F (-40°C to 40°C).

    Mounting

    Aluminum Surface Mount clips included. V-Hooks and Cables for hanging included.

    Optics

    Anti-UV Frosted Prismatic Polycarbonate Lens.

    Listings

    UL certified to meet US and Canadian standards. FCC, CE and RoHS compliant. Listed to qualify for energy-efficient LED lighting rebates.

    Warranty

    7 yr /75K hrs.

    Tunable Color Temperatures

    3500K

    3500K

    4000K

    4000K

    5000K

    5000K

    Optional Controls & Sensors

      • LEDRU

        EnOcean EasyFit™ Wireless LED Relay Zone Controller with 0-10V Dimming Capability, 902 MHz Frequency

      • LEDDU

        EnOcean EasyFit™ Wireless LED Zone Controller 0-10V without Relay - 12V Aux Input, 902 MHz Frequency

      • EOSCU

        EnOcean EasyFit™ Ceiling Mounted Wireless Occupancy Sensor (CR2032 Battery Optional), 902 MHz Frequency

      • EOSWU

        EnOcean EasyFit™ Wall Mounted Wireless Occupancy Sensor (CR2032 Battery Optional), 902 MHz Frequency

      • ELLSU

        EnOcean EasyFit™ Ceiling Mounted Wireless Light Level Sensor (Daylight Harvesting Module), 902 MHz Frequency

      • ESRPU

        EnOcean EasyFit™ Single-Rocker Pad for Self-Powered Wireless Switch, 902 MHz Frequency

      • EDRPU

        EnOcean EasyFit™ Double-Rocker Pad for Self-Powered Wireless Switch, 902 MHz Frequency

      • NWC 300U

        EnOcean EasyFit™ Navigan™ Wireless Commissioner

      Specifications

      Additional information

      Energy DataInput Voltage: 120-277V
      Input Frequency: 50/60 Hz
      Wattage: 3-Wattage Select (65W, 75W, 90W)
      Power Factor: >0.9
      THD: ≤10%
      Operating Temperature: -40°F to 104°F (-40°C to 40°C)
      Lighting DataLumens: (8450, 9750, 11700)
      Efficacy: 130 lm/W
      CCT: 3-CCT Select, 3500K, 4000K, 5000K
      Dimmable: 0-10V
      CRI: Ra≥82
      L70: 75000 hrs
      Physical DataSize: 8-FT
      Color: White
      Lens Type: Polycarbonate
      Diffuser: Frosted, Prismatic
      Rating: UL Wet Location
      Warranty: 7yr/75K
