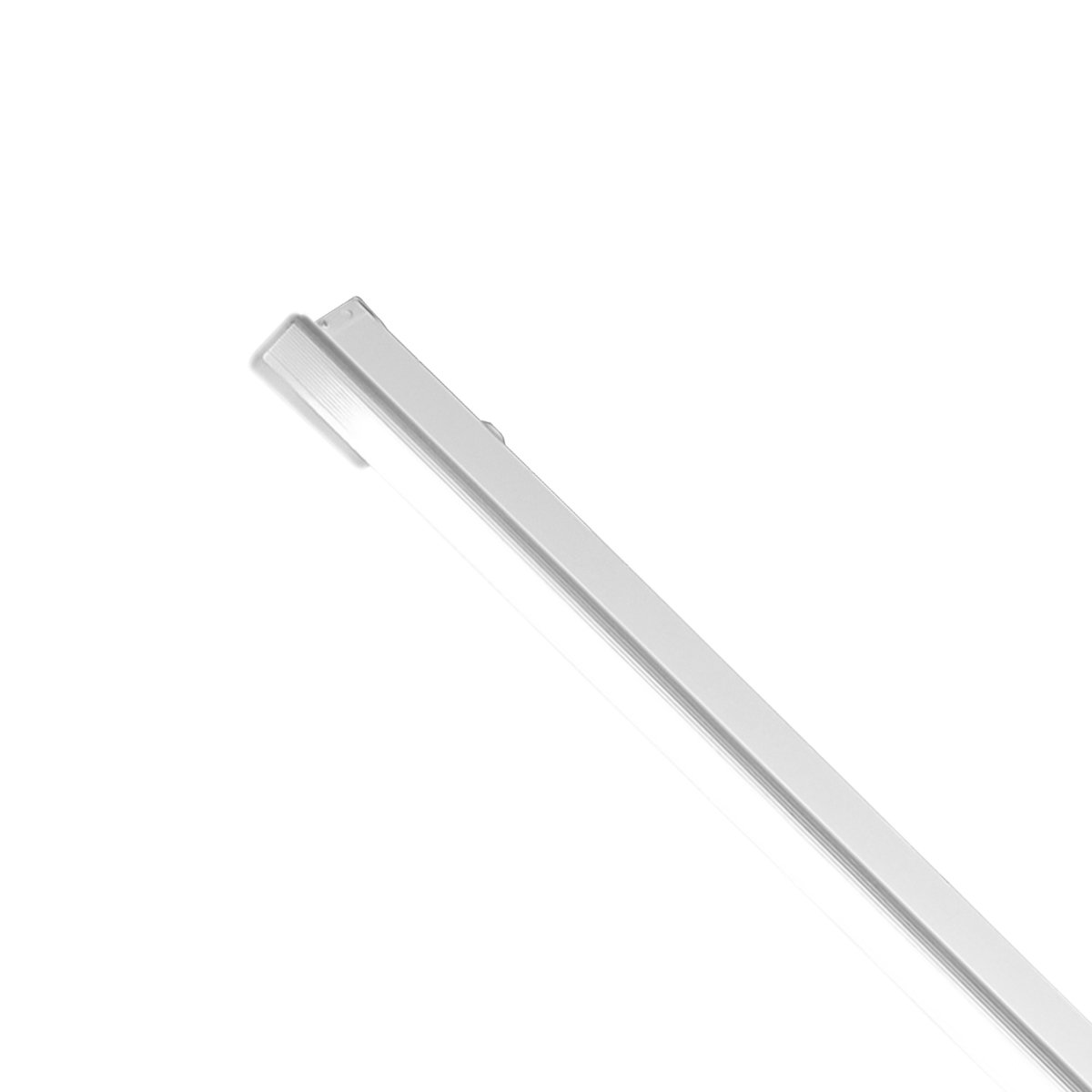

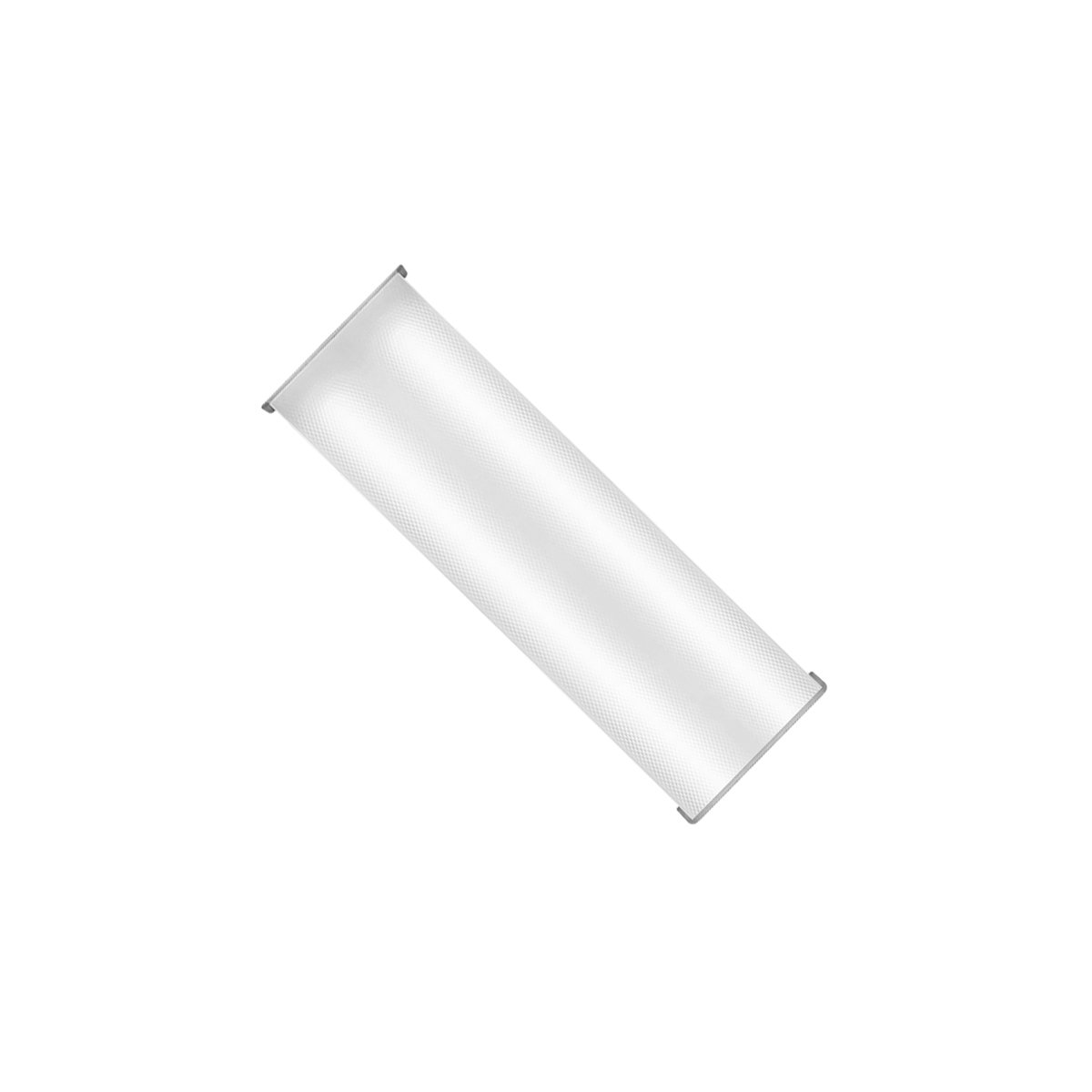

ETH-WRP-2-25W

    WRP G2 SERIES - LED Wraparound, 2-FT, 25W, 132 lm/W, 0-10V Dimmable, Premium Indoor Luminaire, Smart Sensor Ready. (120-277V)

    In stock

    • The ETH-WRP-2-25W is an industry-leading 2-FT, 25W LED Wraparound luminaire producing 132 lumens per watt.
    • Anti-UV Prismatic Polycarbonate Lens for even light transmission and to prevent discoloration.
    • Designed with linear heat-sinks for maximum heat dissipation.
    • Available with Occupancy, Bi-Level Dimming, Daylight, and Emergency Backup Battery Driver options.
    • 7 year /75000 hour warranty, and listed with all applicable bodies for safety and performance to qualify for energy-efficient LED lighting rebates.

    SPEC SHEET | MORE FILES

    Model: ETH-WRP-2-25W Categories: , Tag:

    Applications

    Premium indoor luminaire suitable for general indoors, lobbies, offices, meeting rooms, restrooms, hallways, stairwells, storage-closets, kitchens, and work-stations.

    Construction

    Manufactured for durability using aluminum sheet housing with semigloss coating to resist corrosion, discoloration, and scratching. For use in Dry or Damp Locations.

    Electrical

    Input voltages 120-277V with 0-10V Continuous Dimming. Operating temperatures -4°F to 122°F (-20°C to 50°C).

    Mounting

    Surface Mounting on ceilings or beams.

    Optics

    Anti-UV Frosted Prismatic Polycarbonate Lens.

    Listings

    UL certified to meet US and Canadian standards. FCC, CE and RoHS compliant. Listed to qualify for energy-efficient LED lighting rebates.

    Warranty

    7 yr /75K hrs.

    Available Color Temperatures

    4000K

    4000K

    5000K

    5000K

    Optional Controls & Sensors

      • IP710-LFZ

        LEVITON™ 0-10V Wired Slide Dimmer (120-277V)

      • LEDRU

        EnOcean EasyFit™ Wireless LED Relay Zone Controller with 0-10V Dimming Capability, 902 MHz Frequency

      • LEDDU

        EnOcean EasyFit™ Wireless LED Zone Controller 0-10V without Relay - 12V Aux Input, 902 MHz Frequency

      • EOSCU

        EnOcean EasyFit™ Ceiling Mounted Wireless Occupancy Sensor (CR2032 Battery Optional), 902 MHz Frequency

      • EOSWU

        EnOcean EasyFit™ Wall Mounted Wireless Occupancy Sensor (CR2032 Battery Optional), 902 MHz Frequency

      • ELLSU

        EnOcean EasyFit™ Ceiling Mounted Wireless Light Level Sensor (Daylight Harvesting Module), 902 MHz Frequency

      • ESRPU

        EnOcean EasyFit™ Single-Rocker Pad for Self-Powered Wireless Switch, 902 MHz Frequency

      • EDRPU

        EnOcean EasyFit™ Double-Rocker Pad for Self-Powered Wireless Switch, 902 MHz Frequency

      • NWC 300U

        EnOcean EasyFit™ Navigan™ Wireless Commissioner

      Specifications

      Additional information

      Energy DataInput Voltage: 120-277V
      Input Frequency: 50/60 Hz
      Wattage: 25W
      Power Factor: >0.9
      THD: ≤10%
      Operating Temperature: -4°F to 122°F (-20°C to 50°C)
      Lighting DataLumens: 3300
      Efficacy: 132 lm/W
      CCT: 4000K, 5000K
      Dimmable: 0-10V
      CRI: Ra≥82
      L70: 75000 hrs
      Physical DataSize: 2-FT
      Color: White
      Lens Type: Polycarbonate
      Diffuser: Frosted, Prismatic
      Rating: Damp Location
      Warranty: 7yr/75K
