ETH-WRP-4-22W

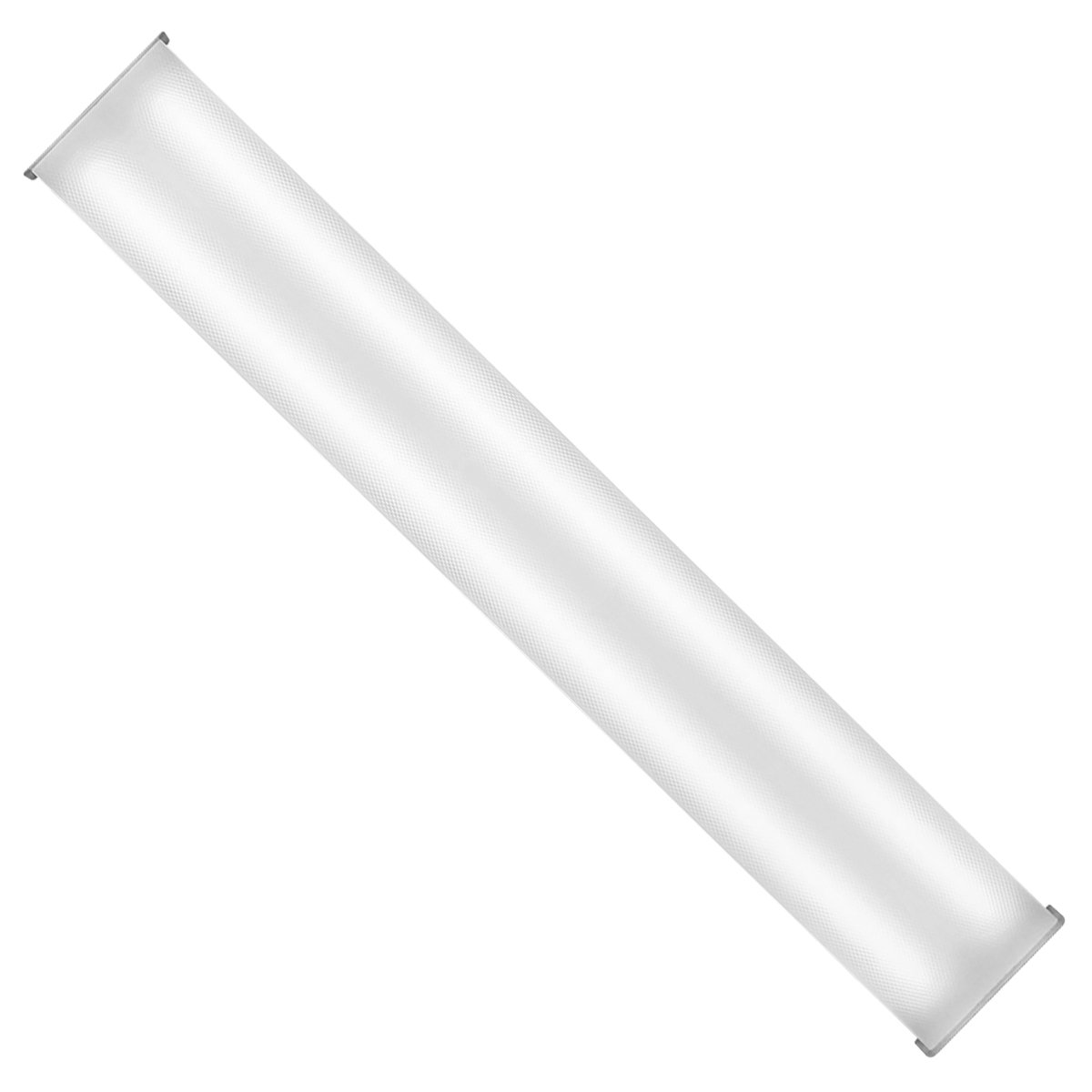

WRP G2 SERIES - LED Wraparound, 4-FT, 22W, 136 lm/W, 0-10V Dimmable, Premium Indoor Luminaire, Smart Sensor Ready. (120-277V)

In stock

  • The ETH-WRP-4-22W is an industry-leading 4-FT, 22W LED Wraparound luminaire producing 136 lumens per watt.
  • Anti-UV Prismatic Polycarbonate Lens for even light transmission and to prevent discoloration.
  • Designed with linear heat-sinks for maximum heat dissipation.
  • Available with Occupancy, Bi-Level Dimming, Daylight, and Emergency Backup Battery Driver options.
  • 7 year /75000 hour warranty, and listed with all applicable bodies for safety and performance to qualify for energy-efficient LED lighting rebates.

SPEC SHEET | MORE FILES

Model: ETH-WRP-4-22W Applications: , Group:

Applications

Premium indoor luminaire suitable for general indoors, lobbies, offices, meeting rooms, restrooms, hallways, stairwells, storage-closets, kitchens, and work-stations.

Construction

Manufactured for durability using
aluminum sheet housing with semigloss coating to resist corrosion,
discoloration, and scratching. For
use in Dry Locations.

Electrical

Input voltages 120-277V with 0-10V Continuous Dimming. Operating temperatures -4°F to 122°F (-20°C to 50°C).

Mounting

Surface Mounting on ceilings or beams.

Optics

Anti-UV Frosted Prismatic Polycarbonate Lens.

Listings

UL certified to meet US and Canadian standards. FCC, CE and RoHS compliant. Listed to qualify for energy-efficient LED lighting rebates.

Warranty

7 yr /75K hrs.

Available Color Temperatures

4000K

4000K

5000K

5000K

Optional Controls & Sensors

  • IP710-LFZ

    LEVITON™ 0-10V Wired Slide Dimmer (120-277V)

  • LEDRU

    EnOcean EasyFit™ Wireless LED Relay Zone Controller with 0-10V Dimming Capability, 902 MHz Frequency

  • LEDDU

    EnOcean EasyFit™ Wireless LED Zone Controller 0-10V without Relay - 12V Aux Input, 902 MHz Frequency

  • EOSCU

    EnOcean EasyFit™ Ceiling Mounted Wireless Occupancy Sensor (CR2032 Battery Optional), 902 MHz Frequency

  • EOSWU

    EnOcean EasyFit™ Wall Mounted Wireless Occupancy Sensor (CR2032 Battery Optional), 902 MHz Frequency

  • ELLSU

    EnOcean EasyFit™ Ceiling Mounted Wireless Light Level Sensor (Daylight Harvesting Module), 902 MHz Frequency

  • ESRPU

    EnOcean EasyFit™ Single-Rocker Pad for Self-Powered Wireless Switch, 902 MHz Frequency

  • EDRPU

    EnOcean EasyFit™ Double-Rocker Pad for Self-Powered Wireless Switch, 902 MHz Frequency

  • NWC 300U

    EnOcean EasyFit™ Navigan™ Wireless Commissioner

Specifications

Additional information

Energy DataInput Voltage: 120-277V
Input Frequency: 50/60 Hz
Wattage: 22W
Power Factor: >0.9
THD: ≤10%
Operating Temperature: -4°F to 122°F (-20°C to 50°C)
Lighting DataLumens: 2992
Efficacy: 136 lm/W
CCT: 4000K, 5000K
Dimmable: 0-10V
CRI: Ra≥82
L70: 75000 hrs
Physical DataSize: 4-FT
Color: White
Lens Type: Polycarbonate
Diffuser: Frosted, Prismatic
Warranty: 7yr/75K
