FI-DP-14-U-P-30W-EL

    DREAM PANEL SERIES - LED EMB Back-Lit Panel, 1x4, 30W, 130 lm/W, Damp Location, 0-10V Dimmable, Premium Indoor Luminaire, Smart Sensor Ready. (120-277V)

    In stock

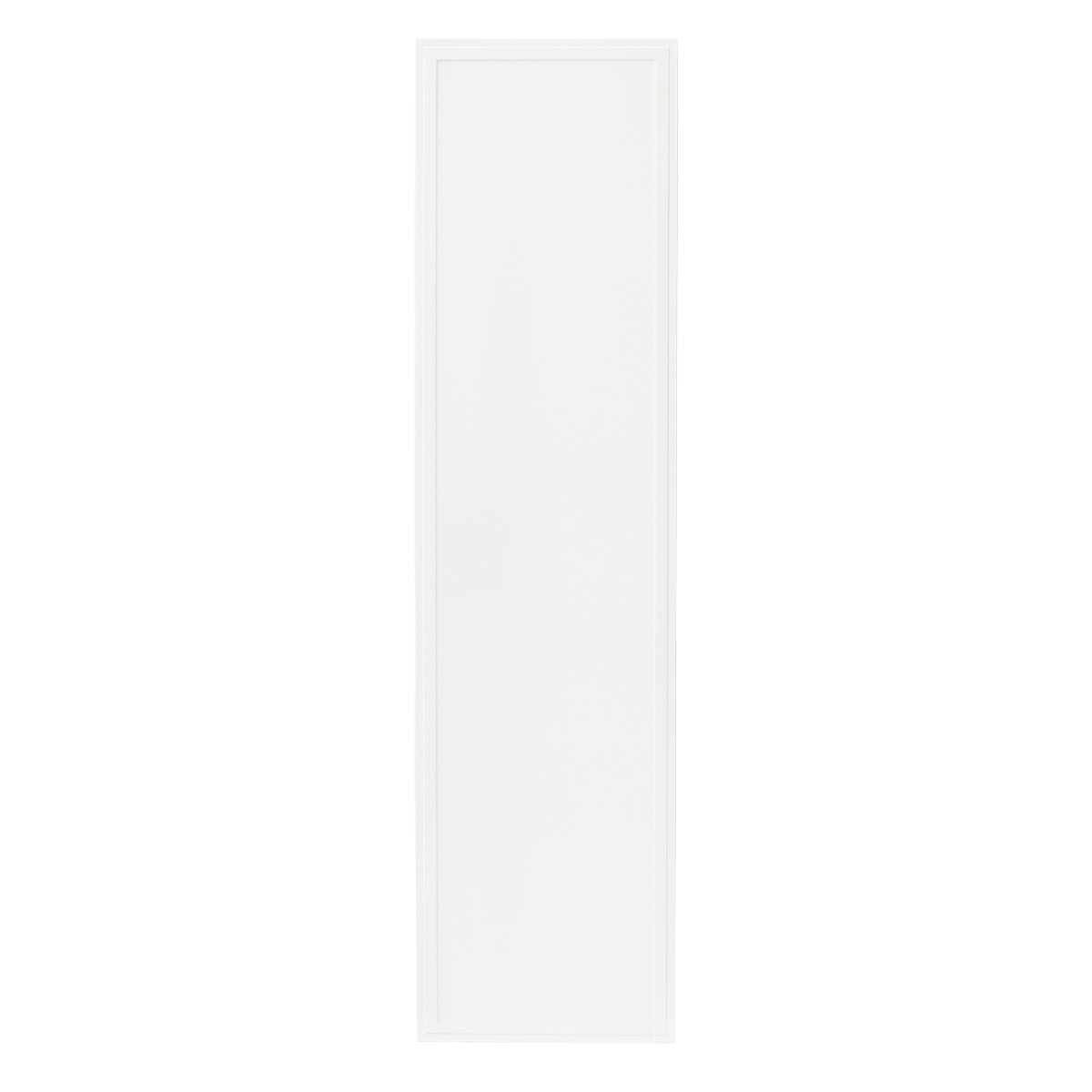

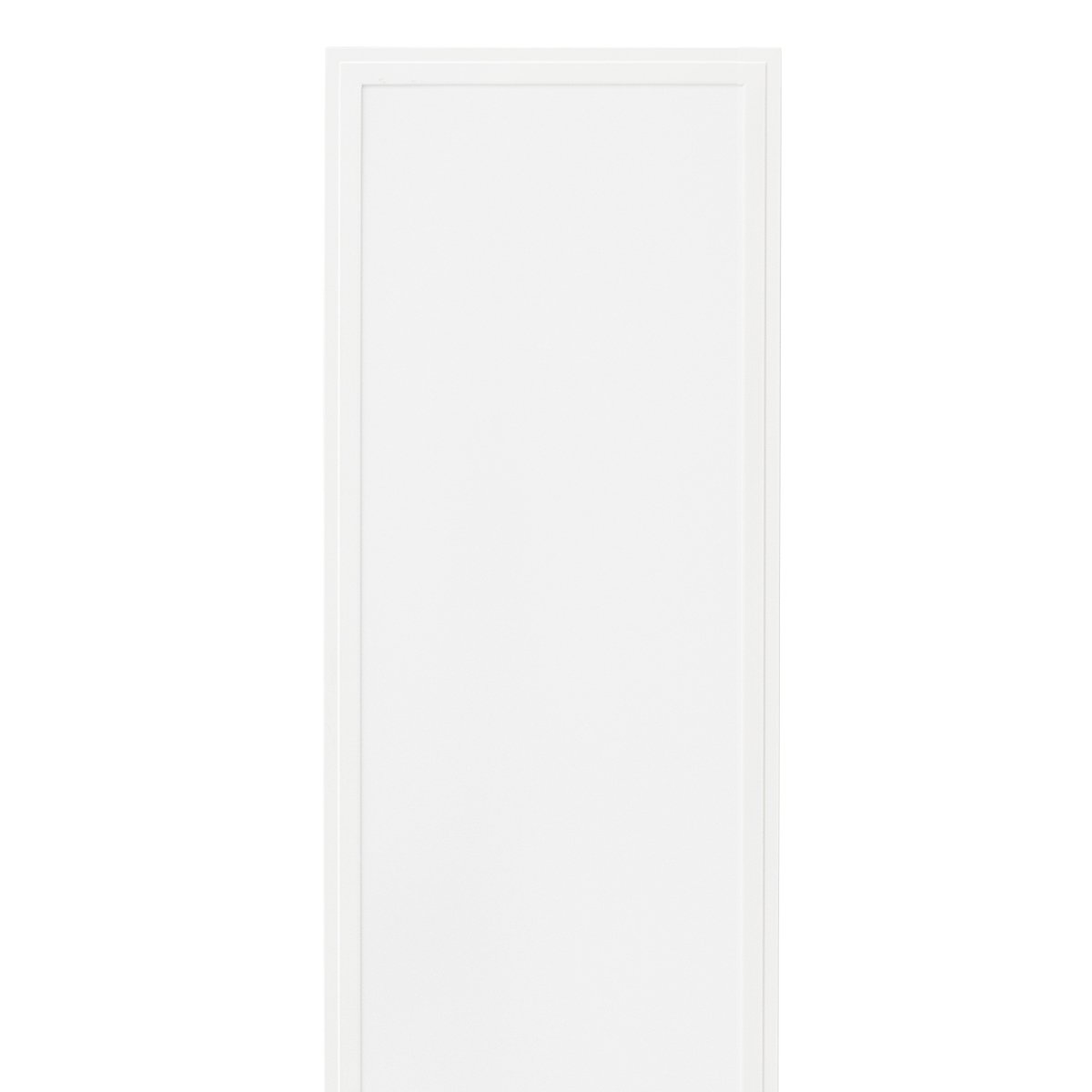

    • The FI-DP-14-U-P-30W-EL is an industry-standard 1×4, 30W LED Back-Lit Panel luminaire with an Integrated Emergency Backup Battery producing 130 lumens per watt.
    • Anti-UV Frosted Polycarbonate Lens for even light transmission and to prevent discoloration.
    • Optional Surface Mount Kit and Cable Suspension Kit available.
    • Designed with wide heat-sinks for maximum heat dissipation.
    • 5 year /50000 hour warranty, and listed with all applicable bodies for safety and performance to qualify for energy-efficient LED lighting rebates.

    SPEC SHEET | MORE FILES

    Model: FI-DP-14-U-P-30W Categories: , , Tag:

    Applications

    Premium indoor luminaire suitable for general indoor commercial spaces, lobbies, offices, meeting rooms, schools, retail stores, restrooms, hallways, and workstations.

    Construction

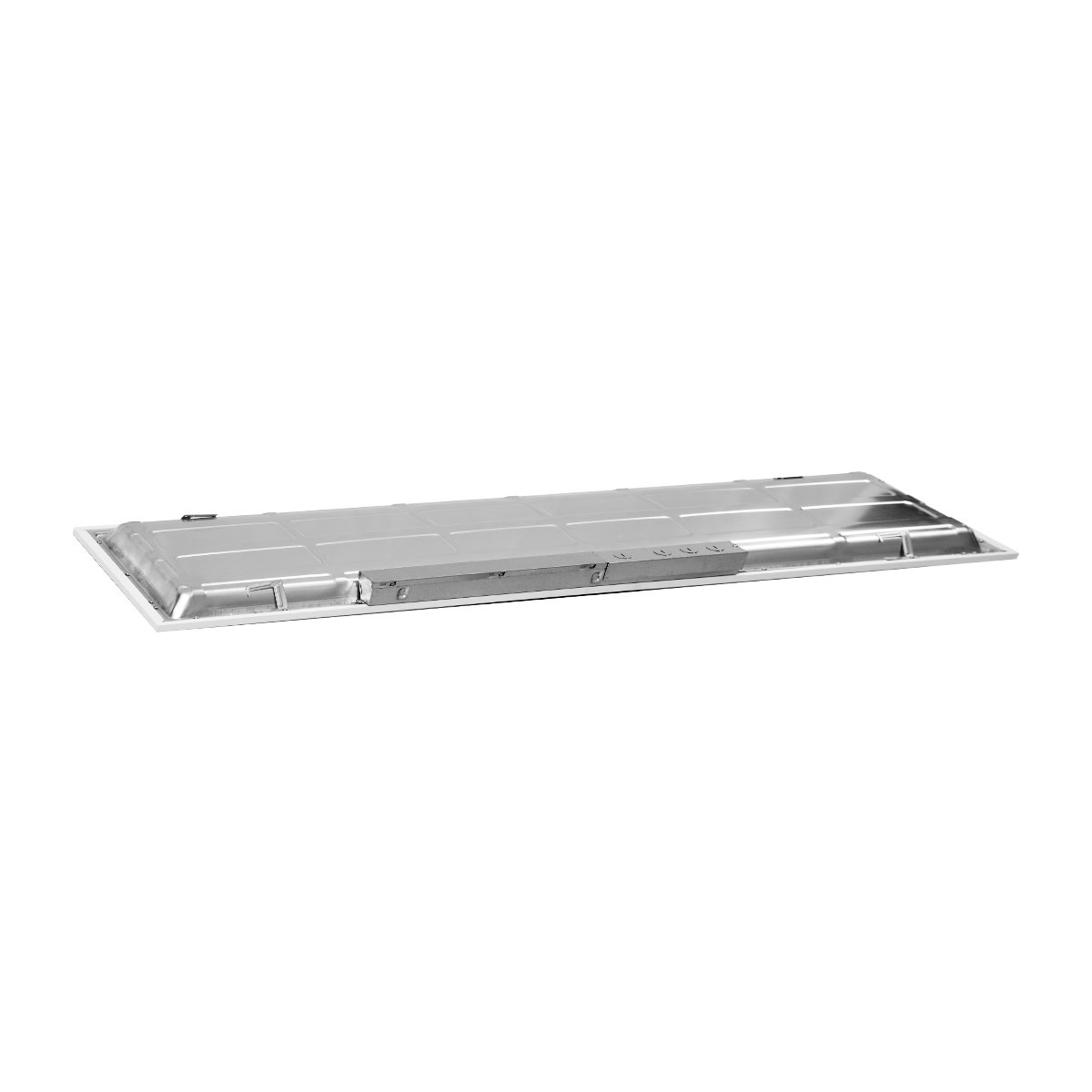

    Manufactured for durability using aluminum frame housing and a steel die-formed back enclosure with satin coating to resist corrosion, discoloration, and scratching. For use in Dry or Damp Locations.

    Electrical

    Input voltages 120-277V with 0-10V Continuous Dimming. Includes built-in junction  box. Operating temperatures -4°F to 104°F (-20°C to 40°C).

    Mounting

    Recessed T-Bar Ceiling Mount with secure attachment earthquake clips. Surface Mount Kits available. 2-Cable and 4-Cable Suspension Kits available.

    Optics

    Anti-UV Frosted Prismatic Polycarbonate Lens.

    Emergency

    Includes integrated Emergency 90 Minute Backup Battery.

    Listings

    UL certified to meet US and Canadian standards. FCC, CE and RoHS compliant. Listed to qualify for energy-efficient LED lighting rebates.

    Warranty

    5 yr /50K hrs.

    Available Color Temperatures

    3500K

    3500K

    4000K

    4000K

    5000K

    5000K

    Optional Controls & Sensors

      • IP710-LFZ

        LEVITON™ 0-10V Wired Slide Dimmer (120-277V)

      • LEDRU

        EnOcean EasyFit™ Wireless LED Relay Zone Controller with 0-10V Dimming Capability, 902 MHz Frequency

      • LEDDU

        EnOcean EasyFit™ Wireless LED Zone Controller 0-10V without Relay - 12V Aux Input, 902 MHz Frequency

      • EOSCU

        EnOcean EasyFit™ Ceiling Mounted Wireless Occupancy Sensor (CR2032 Battery Optional), 902 MHz Frequency

      • EOSWU

        EnOcean EasyFit™ Wall Mounted Wireless Occupancy Sensor (CR2032 Battery Optional), 902 MHz Frequency

      • ELLSU

        EnOcean EasyFit™ Ceiling Mounted Wireless Light Level Sensor (Daylight Harvesting Module), 902 MHz Frequency

      • ESRPU

        EnOcean EasyFit™ Single-Rocker Pad for Self-Powered Wireless Switch, 902 MHz Frequency

      • EDRPU

        EnOcean EasyFit™ Double-Rocker Pad for Self-Powered Wireless Switch, 902 MHz Frequency

      • NWC 300U

        EnOcean EasyFit™ Navigan™ Wireless Commissioner

      Specifications

      Additional information

      Energy DataInput Frequency: 50/60 Hz
      Wattage: 30W
      Power Factor: >0.9
      THD: ≤15%
      Operating Temperature: -4°F to 104°F (-20°C to 40°C)
      Lighting DataLumens: 3825
      Efficacy: 130 lm/W
      CCT: 3500K, 4000K, 5000K
      Dimmable: 0-10V
      CRI: Ra≥82
      L70: 50000 hrs
      Physical DataSize: 1×4
      Color: White
      Lens Type: Polycarbonate
      Diffuser: Frosted
      Warranty: 5yr/50K
