FI-DP-24-U-P-40W-EL

DREAM PANEL SERIES - LED Back-Lit Panel, 2x4, 40W, 130 lm/W, Damp Location, 0-10V Dimmable, Premium Indoor Luminaire, Smart Sensor Ready with Integrated Emergency Backup Battery. (120-277V)

In stock

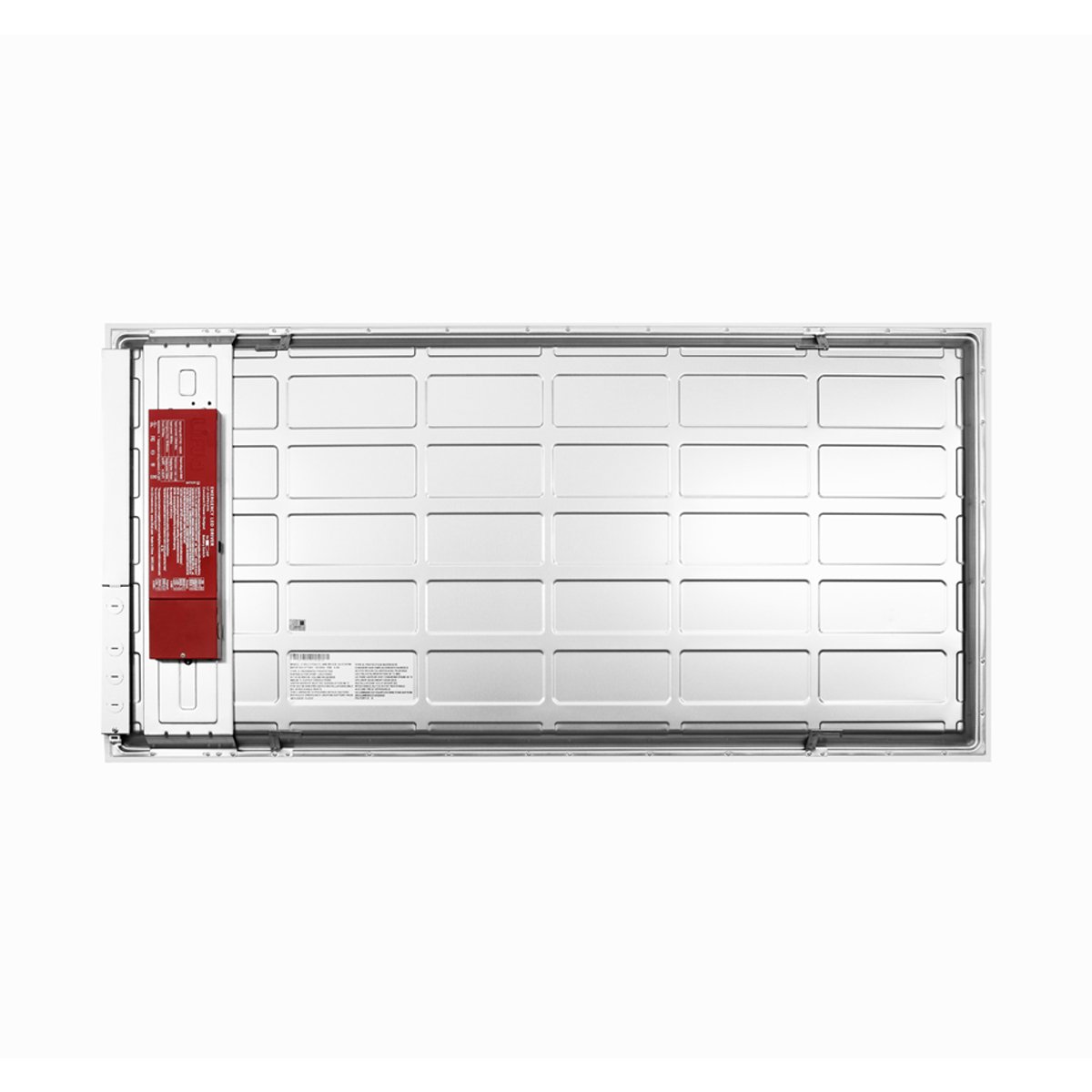

  • The FI-DP-24-U-P-40W-EL is an industry-standard 2×4, 40W LED Back-Lit Panel luminaire with an Integrated Emergency Backup Battery producing 130 lumens per watt.
  • Anti-UV Frosted Polycarbonate Lens for even light transmission and to prevent discoloration.
  • Optional Surface Mount Kit and Cable Suspension Kit available.
  • Designed with wide heat-sinks for maximum heat dissipation.
  • 5 year /50000 hour warranty, and listed with all applicable bodies for safety and performance to qualify for energy-efficient LED lighting rebates.

SPEC SHEET | MORE FILES

Model: FI-DP-24-U-P-40W-EL Applications: , , Groups: ,

Applications

Premium indoor luminaire suitable for general indoor commercial spaces, lobbies, offices, meeting rooms, schools, retail stores, restrooms, hallways, and workstations.

Construction

Manufactured for durability using aluminum frame housing and a steel die-formed back enclosure with satin coating to resist corrosion, discoloration, and scratching. For use in Dry or Damp Locations.

Electrical

Input voltages 120-277V with 0-10V Continuous Dimming. Includes built-in junction  box. Operating temperatures -4°F to 104°F (-20°C to 40°C).

Mounting

Recessed T-Bar Ceiling Mount with secure attachment earthquake clips. Surface Mount Kits available. 2-Cable and 4-Cable Suspension Kits available.

Optics

Anti-UV Frosted Prismatic Polycarbonate Lens.

Emergency

Includes integrated Emergency 90 Minute Backup Battery.

Listings

UL certified to meet US and Canadian standards. FCC, CE and RoHS compliant. Listed to qualify for energy-efficient LED lighting rebates.

Warranty

5 yr /50K hrs.

Available Color Temperatures

3500K

3500K

4000K

4000K

5000K

5000K

Optional Controls & Sensors

  • IP710-LFZ

    LEVITON™ 0-10V Wired Slide Dimmer (120-277V)

  • LEDRU

    EnOcean EasyFit™ Wireless LED Relay Zone Controller with 0-10V Dimming Capability, 902 MHz Frequency

  • LEDDU

    EnOcean EasyFit™ Wireless LED Zone Controller 0-10V without Relay - 12V Aux Input, 902 MHz Frequency

  • EOSCU

    EnOcean EasyFit™ Ceiling Mounted Wireless Occupancy Sensor (CR2032 Battery Optional), 902 MHz Frequency

  • EOSWU

    EnOcean EasyFit™ Wall Mounted Wireless Occupancy Sensor (CR2032 Battery Optional), 902 MHz Frequency

  • ELLSU

    EnOcean EasyFit™ Ceiling Mounted Wireless Light Level Sensor (Daylight Harvesting Module), 902 MHz Frequency

  • ESRPU

    EnOcean EasyFit™ Single-Rocker Pad for Self-Powered Wireless Switch, 902 MHz Frequency

  • EDRPU

    EnOcean EasyFit™ Double-Rocker Pad for Self-Powered Wireless Switch, 902 MHz Frequency

  • NWC 300U

    EnOcean EasyFit™ Navigan™ Wireless Commissioner

Specifications

Additional information

Energy DataInput Voltage: 120-277V
Input Frequency: 50/60 Hz
Wattage: 40W
Power Factor: >0.9
THD: ≤15%
Operating Temperature: -4°F to 104°F (-20°C to 40°C)
Lighting DataLumens: 5100
Efficacy: 130 lm/W
CCT: 3500K, 4000K, 5000K
Dimmable: 0-10V
CRI: Ra≥82
L70: 50000 hrs
Physical DataSize: 2×4
Color: White
Lens Type: Polycarbonate
Diffuser: Frosted
Warranty: 5yr/50K
