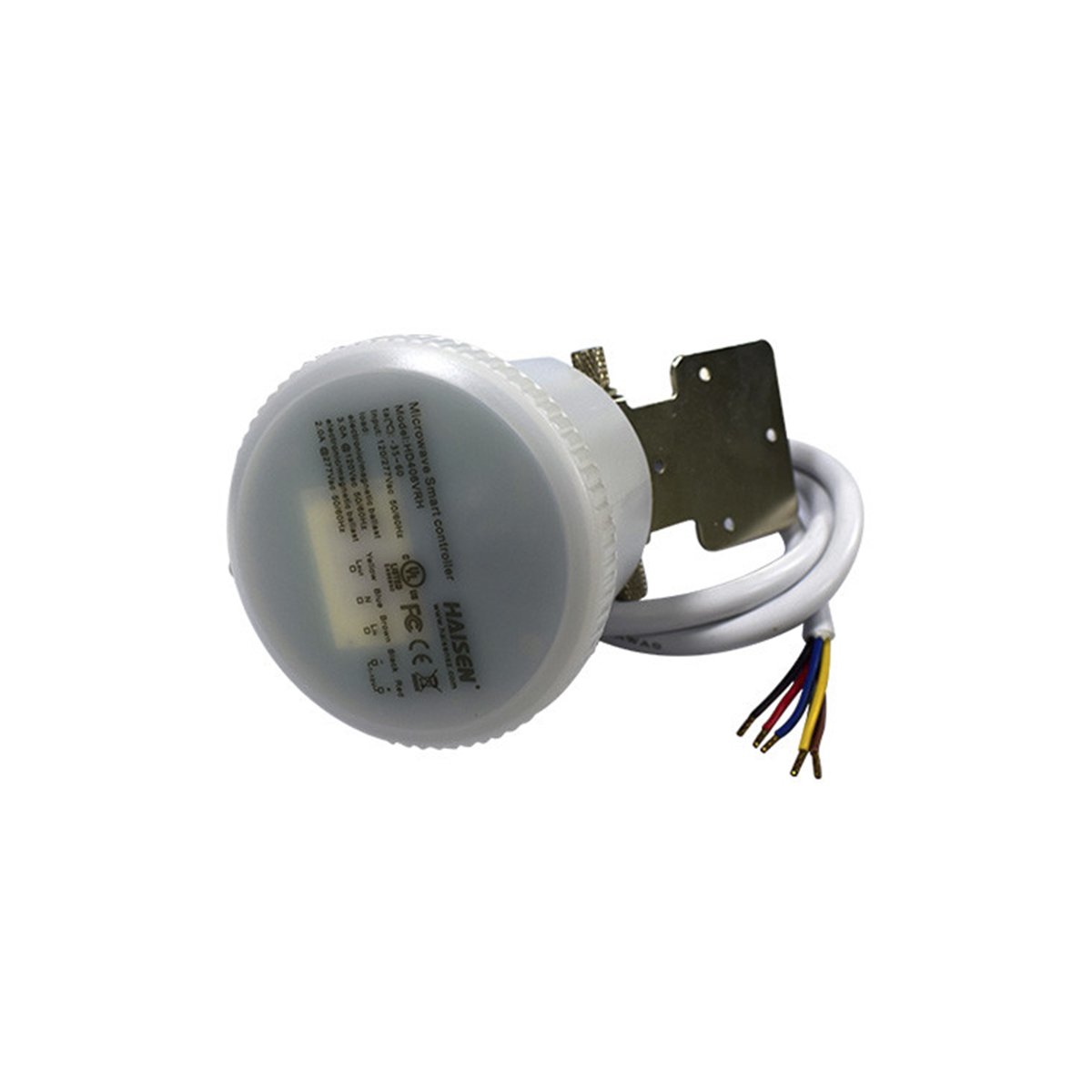

HD406VRH-C Dimming

Microwave Dimming and Occupancy Sensor Fixture Mount with Bracket

In stock

  • Microwave Dimming and Occupancy Sensor for HG, HLO UFO, HLO PC UFO, and Omni UFO Series LED UFO High Bays.
Model: HD406VRH-C Dimming Applications: , Group:

Technical Information

Additional information

Input Voltage

120-277V

Color

Black

IP Rating

Dry Location, IP65 Wet Location

Input Frequency

50/60 Hz

Switching Capacity

2.0A@277V, 3.0A@120V, Max

Mounting Height

Max. 49.2-FT

Detection Area

100%, 25%, 50%, 75%

Detection Range

30°~150°, Max.ø 52.5-FT @49.2-FT Height

Hold Time

1 min, 10 min, 20 min, 3 min, 30 min, 30s, 5 min, 5s

Daylight Treshhold

10 Lux, 120 Lux, 2 Lux, 30 Lux, 50 Lux, 80 Lux, Disable

Sensor Frequency

5.8GHz±75MHz (Microwave)

Operating Temperature

-31°F ~ 140°F (-35°C ~ 60°C)

Dimensions

ø3.15"Cx 2.44"H

Warranty

5yr/50K
