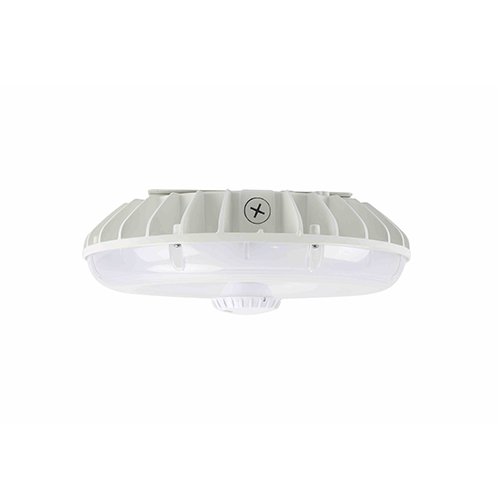

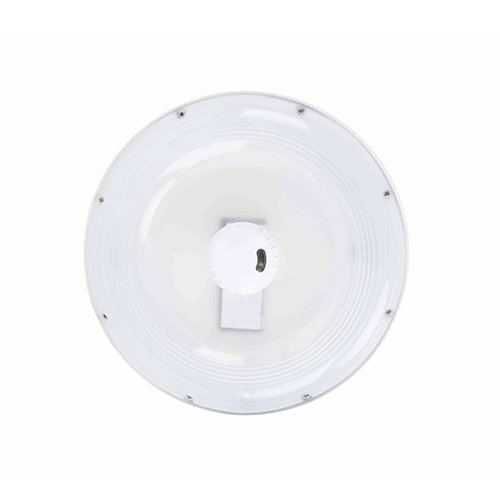

MCP03 30W

MCP03 SERIES - LED Canopy Light, 30W, 120 lm/W, IP65 Wet Location, 0-10V Dimmable, Premium Outdoor Luminaire, Smart Sensor Ready (120-277V)

In stock

  • The MCP03 30W is an industry-standard 30W LED Canopy Light luminaire producing 120 lumens per watt.
  • Rated IP65 Wet Location and designed with multiple heat-sinks for maximum heat dissipation.
  • Anti-UV Frosted Polycarbonate Lens for wide light transmission and to prevent discoloration.
  • Available with Occupancy, Bi-Level Dimming, Daylight, and Sensor Program Remote options.
  • 5 year /50000 hour warranty, and listed with all applicable bodies for safety and performance to qualify for energy-efficient LED lighting rebates.

SPEC SHEET | MORE FILES

Model: MCP03 30W Applications: , Group:

Applications

Premium outdoor luminaire for surface mounting in ceiling spaces less than 25 feet. Suitable for general storage, cold storage, parking garages, and canopies.

Construction

Manufactured for weather-proof durability using solid heavy duty die cast aluminum housing with anti-UV polyester coating to resist water, salt, corrosion, discoloration, and scratching. IP65 Wet Location rated for dust-tight, water jets: IEC 60529.

Electrical

Input voltages 120-277V. Operating temperatures -40°F to 113°F (-40°C to 45°C).

Mounting

Surface mounted installation.

Optics

Anti-UV Frosted Polycarbonate Lens.

Controls

Fixture mounted PIR Photocell, Bilevel Dimming, and Motion Detection Sensor with Remote Control available.

Emergency

Externally Attached, 8W, 90 Minute Emergency Battery Backup available

Listings

UL certified to meet US and Canadian standards. FCC, CE and RoHS compliant. Listed to qualify for energy-efficient LED lighting rebates.

Warranty

5 yr /50K hrs

Available Color Temperatures

4000K

4000K

5000K

5000K

Optional Controls & Sensors

    • BRI823

      Installed PIR Bi-Level Dimming Sensor with Photocell

    • RC-100 Remote

      Remote Controller to Program BRI823 Sensor

    Specifications

    Additional information

    Energy DataInput Voltage: 120-277V
    Input Frequency: 50/60 Hz
    Wattage: 30W
    Power Factor: >0.9
    Operating Temperature: -40°F to 113°F (-40°C to 45°C)
    Lighting DataLumens: 3600
    Efficacy: 120 lm/W
    CCT: 4000K, 5000K
    Dimmable: 0-10V
    CRI: Ra≥70
    L70: 50000 hrs
    Physical DataColor: White
    Lens Type: Polycarbonate
    Diffuser: Frosted
    Rating: IP65 Wet Location
    Warranty: 5yr/50K
