OSF10-I0W

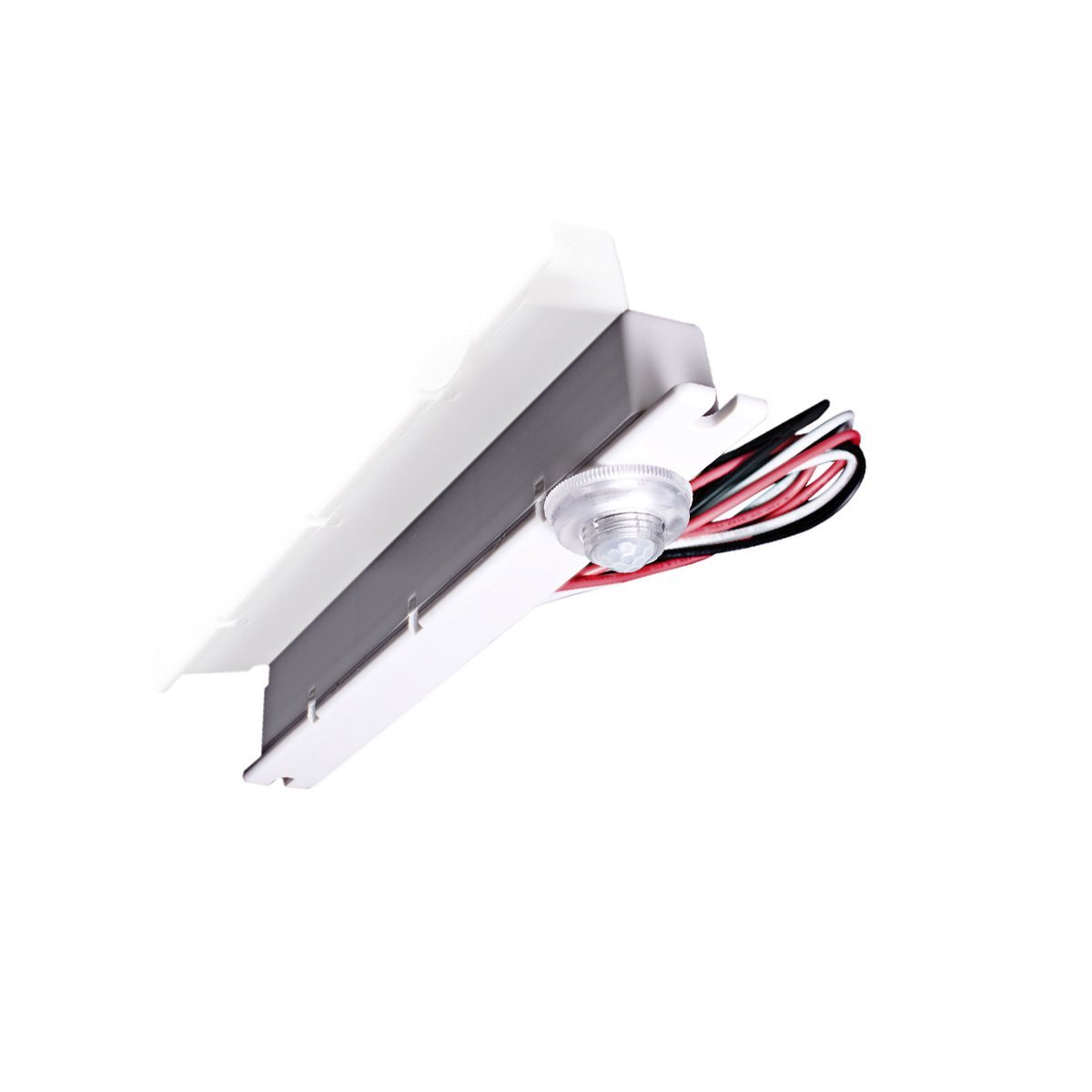

LEVITON™ PIR Fixture Mount Integral Occupancy Sensor (120-277V)

In stock

  • Fixture Mount Integral Luminaire Occupancy Sensor lighting control, 120-277V.
  • Leviton’s OSF10, Integral Occupancy Sensor, is designed to be mounted directly into a luminaire. The OSF10-I0W offers a sensor and relay in one device.
  • The wiring and housing of the sensor is installed adjacent to the ballast and hidden from view behind the reflector cover.
  • Only the PIR detector dome lens and locking ring are visible on the exterior of the fixture.
  • The OSF10-I0W uses Passive Infrared technology to detect motion.
  • For time delay, the time out occurs when motion is no longer detected by the sensor and the device counts a set amount of time before turning off the load. If the device sensor detects motion during this ’time delay’ the count resets and the device initiates a new count. The Time Delay can be adjusted to 30 seconds, 10, 20, and 30 minutes respectively.
  • Relay uses a zero-crossing circuitry to provide reliable, long-life operation.
  • A red LED blinks when motion is detected.
  • The Fresnel Lens detects small motion when mounted within 6’ of occupants. When mounted at a height of 8’, the coverage will be approximately 10’ diameter but sensitivity may be diminished. The field-of-view below shows maximum coverage.
  • Designed specifically for pre-wiring and installing inside of luminaire fixtures in small offices, cubicles, task lighting, cabinet lighting, and small bathroom lighting.
Model: Leviton OSF10-10W Applications: , Groups: ,

Technical Information

Additional information

Input Voltage

120V, 120-277V

Color

White

Input Frequency

50/60 Hz

Switching Capacity

587VA@120V (Electronic Ballasts), Max

Mounting Height

8-FT

Detection Range

10-FT Width @8-FT Height, Max. 6-FT Length

Hold Time

10, 20 min, 30 min, 30s, min

Sensor Frequency

Passive Infrared

Operating Temperature

32°F ~ 131°F (0°C ~ 55°C)

Dimensions

7.50"L x 0.90"W x 1.00"H

Warranty

5yr/50K
