MHB08 210W 3CCT

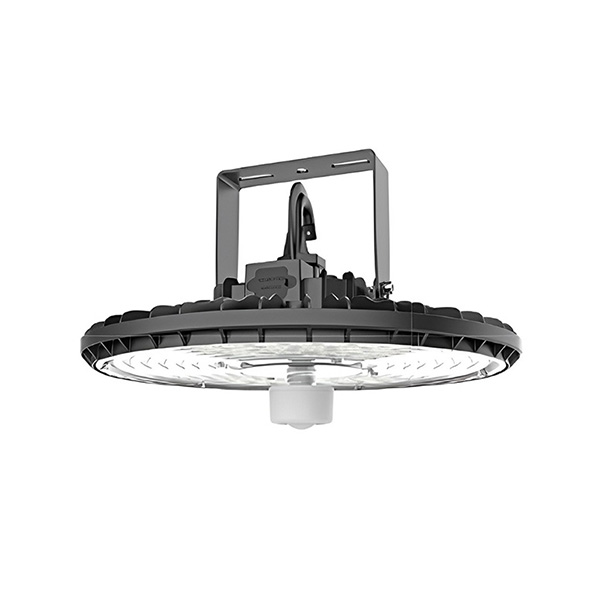

    MHB08 SERIES - LED Tunable UFO High Bay, 210W Max, 152 lm/W, IP65 Wet Location, Select 3X-CCT and 4X-Wattages, 0-10V Dimmable, Premium Indoor Luminaire, Smart Sensor Ready. (120-277V)

    In stock

    • The MHB08 210W 3CCT is a higher-lumen output 210W Max LED Tunable UFO High Bay luminaire producing 152 lumens per watt.
    • 12X-Total Tunable Setting Combinations: 4X-Wattage Tunable (40%, 60%, 80%, 100%) and 3X-CCT Tunable (3500K, 4000K, 5000K).
    • Includes a Hook Mount for hanging in indoor ceiling spaces up to 25 feet.
    • Optional Pendant Mount available for surface mounting in white.
    • Rated IP65 Wet Location and designed for shock resistance with multiple heat-sinks for maximum heat dissipation.
    • Anti-UV Frosted Polycarbonate Lens for even light transmission and to prevent discoloration.
    • Available with Occupancy, Bi-Level Dimming, Daylight and Sensor Program Remote options.
    • 5 year /50000 hour warranty, and listed with all applicable bodies for safety and performance to qualify for energy-efficient LED lighting rebates.

    SPEC SHEET | MORE FILES

    Model: MHB08 210W 3CCT Categories: , , Tag:

    Applications

    Premium indoor luminaire for hanging, surface or pendant mounting in ceiling spaces less than 25 feet. Suitable for gymnasiums, warehouses, manufacturing, packaging, storage, aisles, and covered decks.

    Construction

    Manufactured for durability using solid heavy duty die cast aluminum housing with anti-UV polyester coating to resist water, salt, corrosion, discoloration, and scratching. IP65 Wet Location rated for dust tight, water jets: IEC 60529.

    Electrical

    Input voltage 120-277V or 347-480V models with 0-10V Continuous Dimming Includes 3X-CCT and 4X-Wattage Tuning Switches. Operating temperatures -40°F to 122°F (-40°C to 50°C).

    Mounting

    Includes a Hook Mount standard. Optional Pendant Mount feature for conduit mounting. Surface Mount Bracket available.

    Optics

    Anti-UV Clear Polycarbonate Lens.

    Controls

    Fixture Bracket Mounted PIR Photocell, Bi-Level Dimming, and Motion Detection sensor with Remote Control.

    Listings

    UL certified to meet US and Canadian standards. FCC and RoHS compliant. Listed to qualify for energy-efficient LED lighting rebates.

    Warranty

    5 yr /50K hrs.

    Tunable Color Temperatures

    3000K

    4000K

    5000K

    5000K

    Specifications

    4000K

    Additional information

    Energy DataInput Voltage: 120-277V
    Input Frequency: 50/60 Hz
    Wattage: 4-Wattage Select, 40%, 60%, 80%, 100%
    Power Factor: >0.9
    THD: ≤15%
    Operating Temperature: -4°F to 122°F (-20°C to 50°C)
    Lighting DataLumens: 32000
    Efficacy: 152 lm/W
    CCT: 3-CCT Select, 3000K, 4000K, 5000K
    Dimmable: 0-10V
    CRI: Ra≥70
    L70: 50000 hrs
    Physical DataColor: Black
    Lens Type: Polycarbonate
    Diffuser: Clear
    Rating: IP65 Wet Location
    Warranty: 5yr/50K
