MWM0117W[120V]

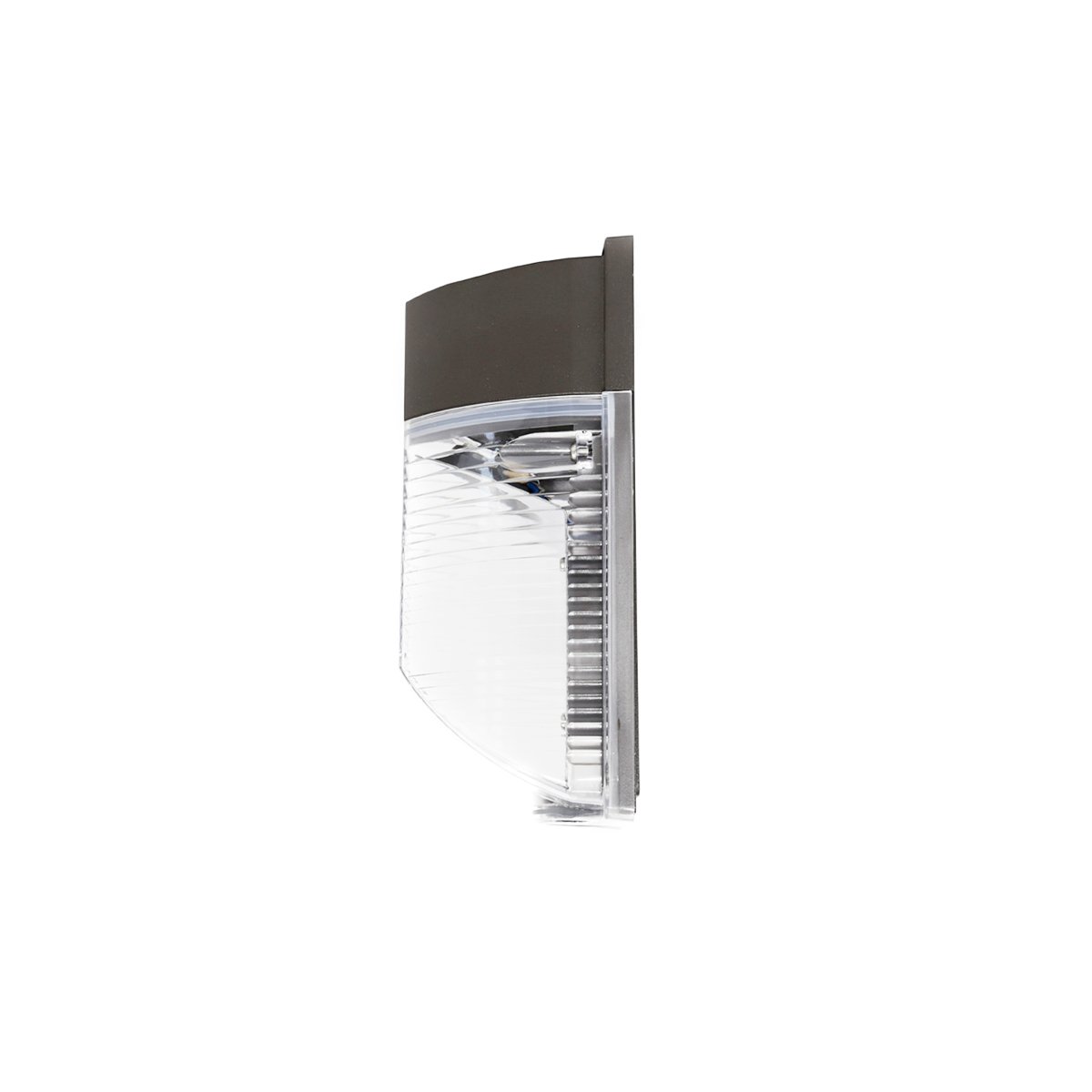

WM SERIES - LED Mini Non Cutoff Wall Pack, 17W, 119 lm/W, IP65 Wet Location, Premium Outdoor Luminaire with Photocell Sensor. (120V)

Available on backorder

  • The MWM0117W[120V] is an industry-standard 17W LED Mini Non Cutoff Wall Pack luminaire producing 119 lumens per watt.
  • Includes 120V operation only, with a built-in Photocell for automatic On/Off.
  • Rated IP65 Wet Location, designed with multiple heat-sinks for maximum heat dissipation.
  • Anti-UV Prismatic Polycarbonate Lens for crisp light transmission and to prevent discoloration.
  • 5 year /50000 hour warranty, and listed with all applicable bodies for safety and performance to qualify for energy-efficient LED lighting rebates.

SPEC SHEET | MORE FILES

Model: MWM0117W[120V] Applications: , , Group:

Applications

Premium outdoor luminaire suitable for building exteriors, entryways, and general security.

Construction

Manufactured for weather-proof durability using solid heavy duty die cast aluminum housing with anti-UV polyester coating to resist water, salt, corrosion, discoloration, and scratching. IP65 Wet Location rated for dust-tight, water jets: IEC 60529.

Electrical

Input voltage 120V. Operating temperatures -40°F to 104°F (-40°C to 40°C).

Mounting

Wall mounted installation.

Optics

Anti-UV Clear Prismatic Polycarbonate Lens.

Controls

Includes integrated Photocell Sensor.

Listings

UL certified to meet US and Canadian standards. FCC, CE and RoHS compliant. Listed to qualify for energy-efficient LED lighting rebates.

Warranty

5 yr /50K hrs

Available Color Temperature

5000K

5000K

Specifications

Additional information

Energy DataInput Voltage: 120V
Input Frequency: 50/60 Hz
Wattage: 17W
Power Factor: >0.9
THD: ≤15%
Operating Temperature: -40°F to 122°F (-40°C to 50°C)
Lighting DataLumens: 2020
Efficacy: 119 lm/W
CCT: 5000K
Dimmable: No
CRI: Ra≥80
L70: 50000 hrs
Physical DataColor: Dark Bronze
Lens Type: Polycarbonate
Diffuser: Prismatic
Rating: IP65 Wet Location
Warranty: 5yr/50K
