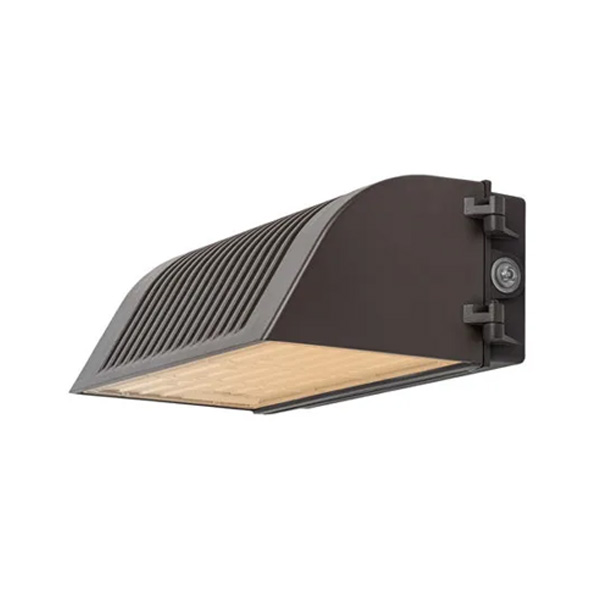

WSD-FWP34567W27-345K-D-P-G2 (Photocell）

    WSD SERIES - LED Tunable and Single Full Cutoff Wall Pack, 70W Max, 130 lm/W, IP65 Wet Location, Select 3X-CCT and 4X-Wattages, 1-10V Dimmable, Premium Outdoor Luminaire. (120-277V)

    In stock

    • The WSD-FWP34567W27-345K-D-P-G2 (Photocell）is an industry-leading 70W Max LED Tunable and Single Full Cutoff Wall Pack luminaire producing 130 lm/W lumens per watt.
    • 12X-Total Tunable Setting Combinations: Select 3X-CCT (3000K, 4000K, 5000K) and Select 4X-Wattages (30W, 45W, 60W, 70W).
    • Rated IP65 Wet Location, designed with wide heat-sinks for maximum heat dissipation.
    • Anti-UV Clear Polycarbonate Lens for crisp light transmission and to prevent discoloration.
    • Available with installed Photocell Sensor and externally mounted Emergency Battery Backup options.
    • 5 year /50000 hour warranty, and listed with all applicable bodies for safety and performance to qualify for energy-efficient LED lighting rebates.

    SPEC SHEET | MORE FILES

    Model: WSD-FWP34567W27-345K-D-P-G2 (Photocell） Categories: , , Tag:

    Applications

    Premium outdoor luminaire suitable for building exteriors, entryways, courtyards, alleys, pedestrian walkways, and general security.

    Construction

    Manufactured for weather-proof durability using solid heavy duty die cast aluminum housing with anti-UV polyester coating to resist water, salt, corrosion, discoloration, and scratching. IP65 Wet Location rated for dust-tight, water jets: IEC 60529.

    Electrical

    Input voltages 120-277V, 1-10V Dimmable models. Includes 3X-CCT and 4X-Wattage Tuning Switches. Operating temperatures -40°F to 104°F (-40°C to 40°C).

    Mounting

    Wall mounted installation.

    Optics

    Anti-UV Clear Ridged Polycarbonate Lens.

    Control

    Fixture intergrated PIR Photocell sensor and Bi-Level Dimming sensor with Remote Control.

    Emergency

    Externally Bracket Mounted, 90 Minute Emergency Battery Backup available.

    Listings

    UL certified to meet US and Canadian standards. FCC, and RoHS compliant. Listed to qualify for energy-efficient LED lighting rebates.

    Warranty

    5 yr /50K hrs

    Tunable Color Temperatures

    3000K

    4000K

    5000K

    5000K

    Specifications

    Additional information

    Energy DataInput Voltage: 120-277V
    Input Frequency: 50/60 Hz
    Wattage: 4-Wattage Select, 30W, 45W, 60W, 70W
    Power Factor: >0.9
    THD: ≤20%
    Operating Temperature: -40°F to 104°F (-40°C to 40°C)
    Lighting DataLumens: 5850, 3900, 7800, 9100
    Efficacy: 130 lm/W
    CCT: 3000K, 4000K, 5000K
    Dimmable: 1-10V
    CRI: Ra≥70
    L70: 50000 hrs
    Physical DataColor: Dark Bronze
    Lens Type: Polycarbonate
    Diffuser: Clear
    Rating: IP65 Wet Location
    Warranty: 5yr/50K
