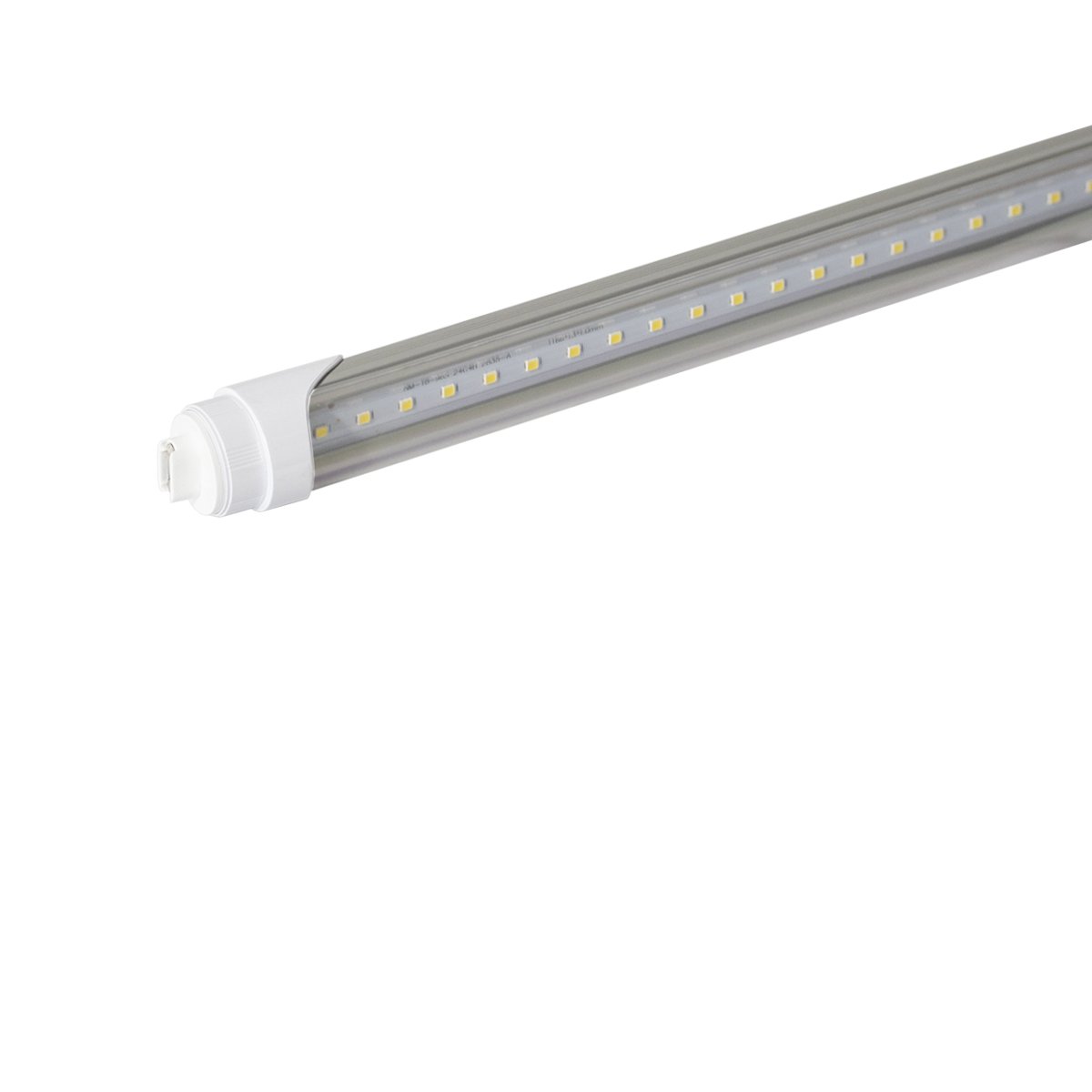

EDI-APT8-6F28-B R17D_C

PC SERIES - LED T8 Tube, 6-FT, 28W, 130 lm/W, IP44 Wet Location, R17D HO, Type B, Double-Ended Power, Clear PC Lens, Premium Replacement Lamp. (120-277V)

Out of stock

  • The EDI-APT8-6F28-B R17_C is an industry-leading 6-FT, 28W LED T8 Type-B replacement lamp producing 130 lumens per watt.
  • Includes an internal LED Driver with R17D HO end-caps for Double-Ended Power installations.
  • Anti-UV Clear Polycarbonate Lens for even light transmission and to prevent discoloration.
  • Suitable for replacing 6-FT linear fluorescent lamps in commercial and industrial locations.
  • 5 year /50000 hour warranty, and listed with all applicable bodies for safety and performance to qualify for energy-efficient LED lighting rebates.
Model: EDI-APT8-6F28-B R17D_C Categories: , Tag:


Premium indoor replacement lamp intended to replace 6 foot T8 or T12 fluorescent lamps with R17D HO base for linear lighting fixtures. Suitable for use in linear wraparounds and shop lights.


Manufactured for durability and heat dissipation using aluminum sheet backing. IP44 Wet Location rated for protection against solid objects 1.0mm diameter and greater, splashing water: IEC 60529.


Input voltages 120-277V. Type B, to operate without a ballast. Double-Ended Power installations for R17D Rotatable end caps. Operating temperatures -4°F to 104°F (-20°C to 40°C).


Anti-UV Clear Polycarbonate Lens.


Compatible with ON/OFF occupancy sensors.


UL certified to meet US and Canadian standards. FCC, CE and RoHS compliant. Listed to qualify for energy-efficient LED lighting rebates.


5 yr /50K hrs.

Available Color Temperatures






Additional information

Energy DataInput Voltage: 120-277V
Input Frequency: 50/60 Hz
Wattage: 28W
Power Factor: >0.9
THD: ≤20%
Operating Temperature: -4°F to 104°F (-20°C to 40°C)
Lighting DataLumens: 3640
Efficacy: 130 lm/W
CCT: 4000K, 5000K
Dimmable: No
CRI: Ra≥80
L70: 50000 hrs
Physical DataSize: 6-FT
Driver Type: Type-B
Installation: Double-Ended Power
Color: White
Lens Type: Polycarbonate
Diffuser: Clear
Rating: IP44 Wet Location
Warranty: 5yr/50K
