FL-T8-40W2400 BIDS_C

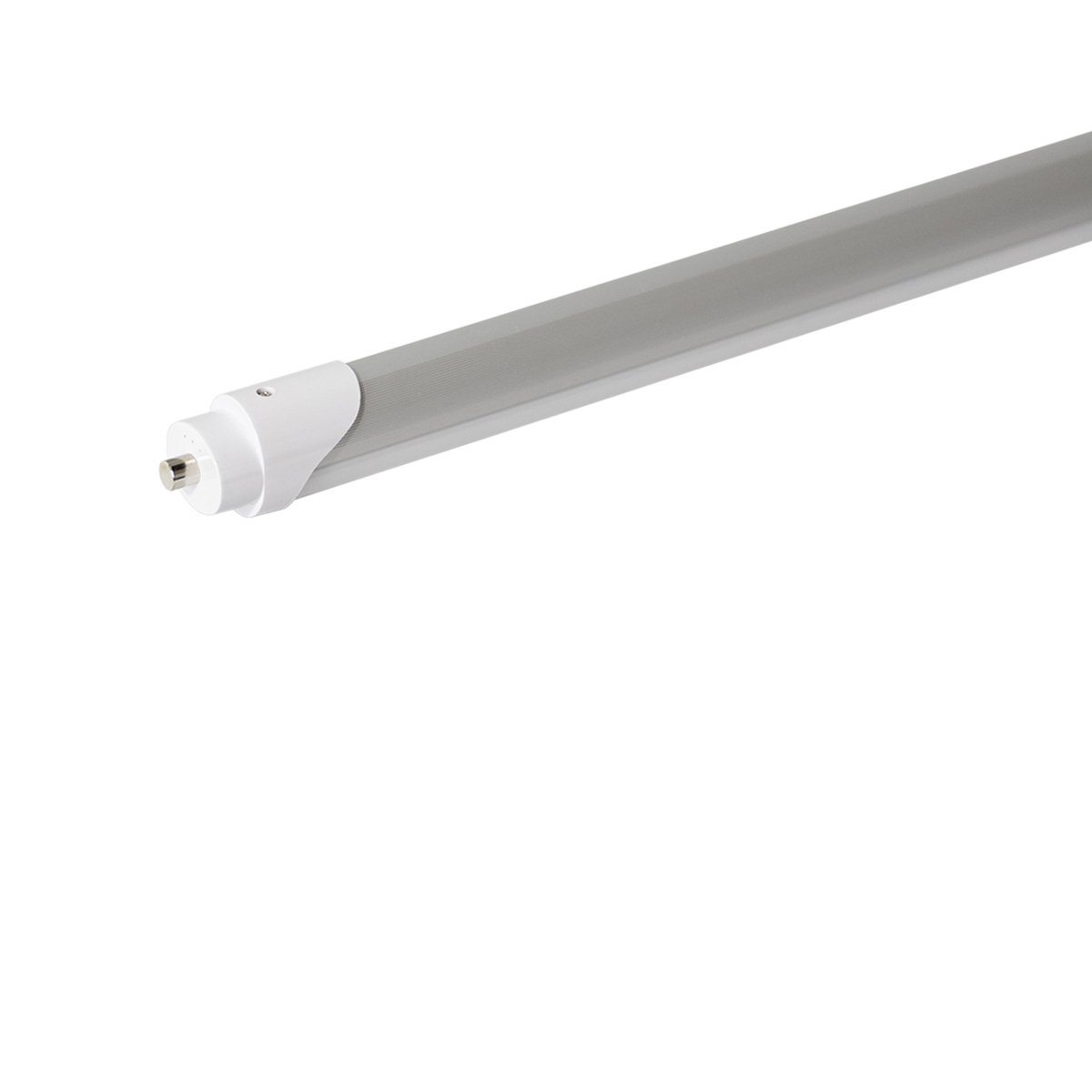

    PC SERIES - LED T8 Tube, 8-FT, 40W, 135 lm/W, IP44 Wet Location, FA8, Type B, Double-Ended Power, Clear PC Lens, Premium Replacement Lamp. (120-277V)

    In stock

    • The FL-T8-40W2400 BIDS_C is an industry-leading 8-FT, 40W LED T8 Type-B replacement lamp producing 135 lumens per watt.
    • Includes an internal LED Driver with FA8 Single-Pin end-caps for Double-Ended Power installations.
    • Anti-UV Clear Polycarbonate Lens for even light transmission and to prevent discoloration.
    • Suitable for replacing 8-FT linear fluorescent lamps in commercial and industrial locations.
    • 5 year /50000 hour warranty, and listed with all applicable bodies for safety and performance to qualify for energy-efficient LED lighting rebates.

    SPEC SHEET | MORE FILES

    Model: FL-T8-40W2400 BIDS_C Categories: , Tag:

    Applications

    Premium indoor replacement lamp intended to replace 8 foot T8 or T12 fluorescent lamps with FA8 Single-Pin base for linear lighting fixtures. Suitable for use in linear wraparounds and shop lights.

    Construction

    Manufactured for durability and heat dissipation using aluminum sheet backing. IP44 Wet Location rated for protection against solid objects 1.0mm diameter and greater, splashing water: IEC 60529.

    Electrical

    Input voltages 120-277V. Type B, to operate without a ballast. Double-Ended Power installations for FA8 end caps. Operating temperatures -4°F to 104°F (-20°C to 40°C).

    Optics

    Anti-UV Clear Polycarbonate Lens.

    Controls

    Compatible with ON/OFF occupancy sensors.

    Listings

    UL certified to meet US and Canadian standards. FCC, CE and RoHS compliant. Listed to qualify for energy-efficient LED lighting rebates.

    Warranty

    5 yr /50K hrs.

    Available Color Temperatures

    4000K

    4000K

    5000K

    5000K

    Specifications

    Additional information

    Energy DataInput Voltage: 120-277V
    Input Frequency: 50/60 Hz
    Wattage: 40W
    Power Factor: >0.9
    THD: ≤20%
    Operating Temperature: -4°F to 113°F (-20°C to 45°C)
    Lighting DataLumens: 5400
    CCT: 4000K, 5000K
    Dimmable: No
    CRI: Ra≥80
    L70: 50000 hrs
    Physical DataSize: 8-FT
    Driver Type: Type-B
    Installation: Double-Ended Power
    Color: White
    Lens Type: Polycarbonate
    Diffuser: Clear
    Rating: IP44 Wet Location
    Warranty: 5yr/50K
