Outdoor Luminaires

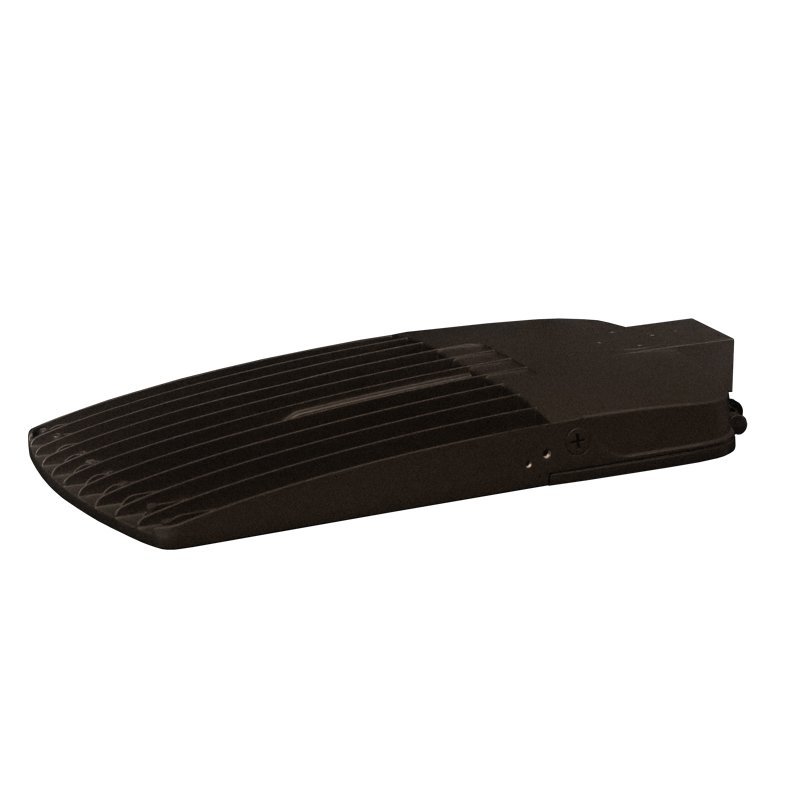

FI G4 SERIES - LED Area Light
Applications
Premium outdoor luminaire suitable for parking areas, auto dealerships, industrial yards, building exteriors, roadways, alleys, and pedestrian walkways.
Construction
Manufactured for weather-proof durability using solid heavy duty die cast aluminum housing with anti-UV polyester coating to resist water, salt, corrosion, discoloration, and scratching. IP65 Wet Location rated for dust-tight, water jets: IEC 60529. Impact Protection IK08, 5 joules: IEC 62262:2002. Includes Pressure Escape Valve.
Electrical
Input voltages 120-277V with 0-10V Continuous Dimming. Operating temperatures -40°F to 113°F (-40°C to 45°C). Surge Protection Rating 4kV-10kV: IEC 61000-4-5.
Mounting
Adjustable options include Slip-Fit, Round /Square Pole, and Trunnion Mounts.
Optics
Anti-UV Clear Polycarbonate IES /NEMA Type III Lens standard. Type IV and Type V available.
Controls
Photocell, Bi-Level Dimming, and Motion Detection programmable twist-lock cap with Remote Control. Shorting Cap for manual switch or timer control.
Listings
UL certified to meet US and Canadian standards. FCC, and RoHS compliant. Listed to qualify for energy-efficient LED lighting rebates.
Warranty
7 yr /75K hrs
Available Color Temperatures

4000K

5000K
Mounting Options

Slip-Fit Mount, Adjustable

Square Pole Mount, Adjustable

Round /Square Pole Mount, Adjustable

Trunnion Mount, Adjustable
Optional Controls & Sensors
PhotocellBK
Twist-Lock Photocell Sensor, Black Cap
Bi-Level + Photocell-B
Twist-Lock PIR Bi-Level Dimming and Photocell Sensor, Black Cap
HD03R Remote
Remote Controller to Program Sensor
HD05R Remote
Remote Controller with On-Screen LCD Display to Program Sensor
Tenon Mounts and Adapters

4SQR-SP-D

5SQR-SP-D

4SQ-SP-D

5SQ-SP-D

SP-TR-D

SQ-SP-D

WM-SP-D

R60-SP2-90-D
2-3/8-inch O.D. Tenon Adapter, Double Horizontal, 90 Degree

R60-SP2-180-D

R60-SP3-90-D

R60-SP3-120

R60-SP4-90-D
