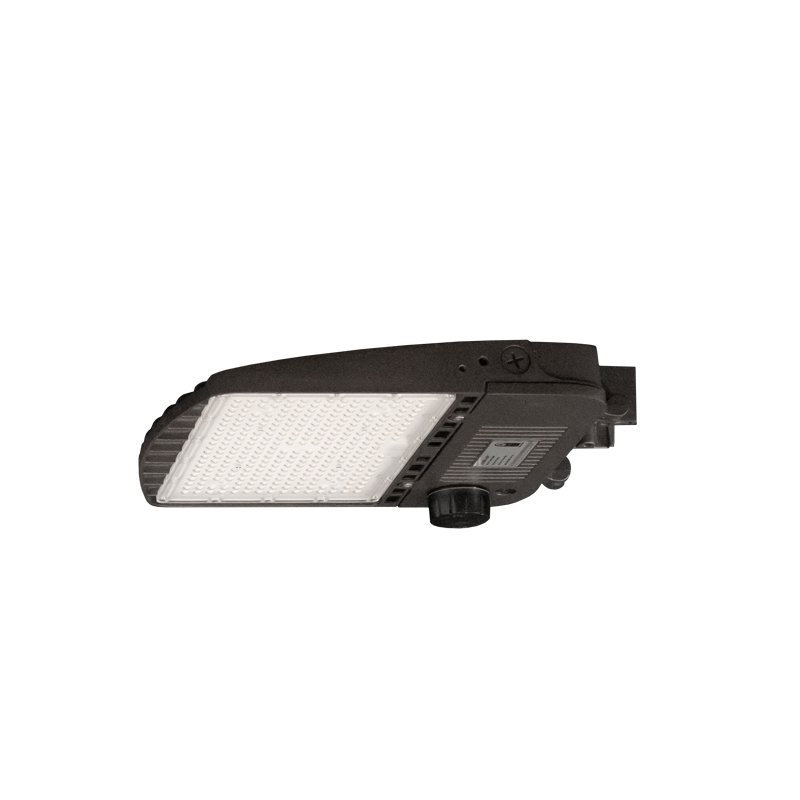

Premium outdoor luminaire suitable for parking areas, auto dealerships, industrial yards, building exteriors, roadways, alleys, and pedestrian walkways.
Manufactured for weather-proof durability using solid heavy duty die cast aluminum housing with anti-UV polyester coating to resist water, salt, corrosion, discoloration, and scratching. IP65 Wet Location rated for dust-tight, water jets: IEC 60529. Impact Protection IK08, 5 joules: IEC 62262:2002. Includes Pressure Escape Valve.
Input voltages 120-277V with 0-10V Continuous Dimming. Operating temperatures -40°F to 113°F (-40°C to 45°C). Surge Protection Rating 4kV-10kV: IEC 61000-4-5.
Adjustable options include Slip-Fit, Round /Square Pole, and Trunnion Mounts.
Anti-UV Clear Polycarbonate IES /NEMA Type III Lens standard. Type IV and Type V available.
Photocell, Bi-Level Dimming, and Motion Detection programmable twist-lock cap with Remote Control. Shorting Cap for manual switch or timer control.
UL certified to meet US and Canadian standards. FCC, and RoHS compliant. Listed to qualify for energy-efficient LED lighting rebates.
7 yr /75K hrs
Available Color Temperatures
Slip-Fit Mount, Adjustable
Square Pole Mount, Adjustable
Round /Square Pole Mount, Adjustable
Trunnion Mount, Adjustable
Tenon Mounts and Adapters
2-3/8-inch O.D. Tenon Adapter, Double Horizontal, 90 Degree
