FI-UFO-200W-G4
Sold Out
Roll over image to zoom in
Click to open expanded view

FI-UFO-200W-G4

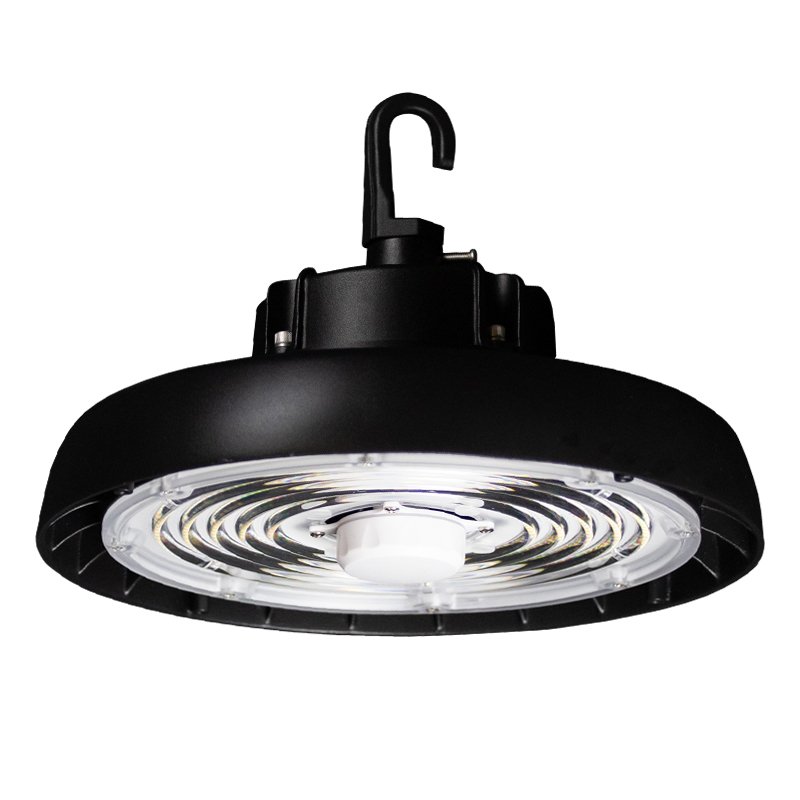

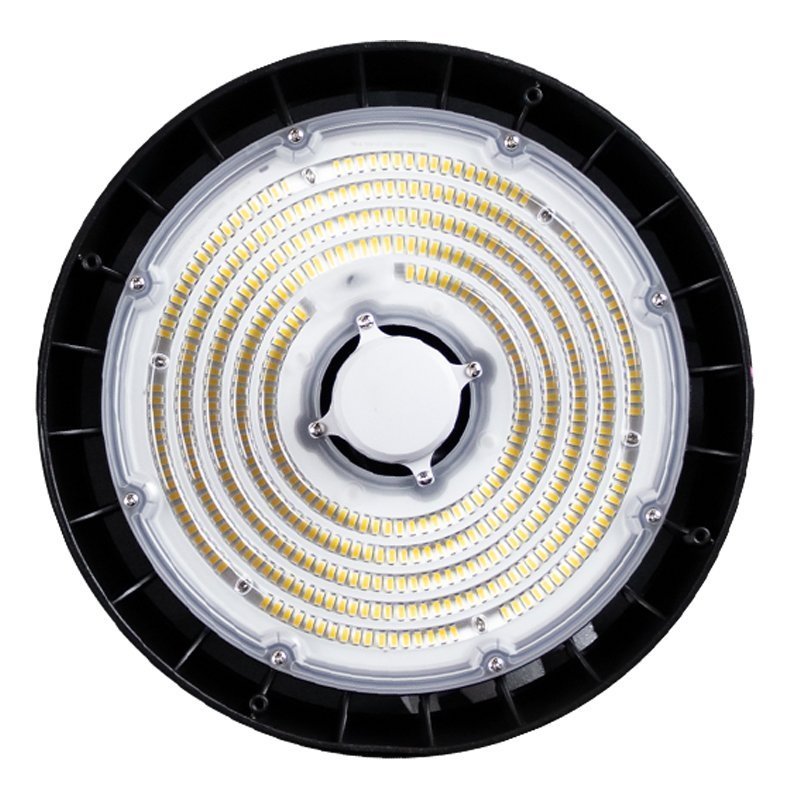

    FI G4 SERIES - LED UFO High Bay, 200W, 150 lm/W, IP65 Wet Location, 0-10V Dimmable, Premium Indoor Luminaire, Smart Sensor Ready. (120-277V)

    Out of stock

    • The FI-UFO-200W-G4 is an industry-leading 200W LED UFO High Bay luminaire producing 150 lumens per watt.
    • Includes a Hook Mount for hanging in high indoor ceiling spaces at or above 25 feet.
    • Optional pendant mounting without use of Hook for conduit mounting.
    • Rated IP65 Wet Location and designed for shock resistance with multiple heat-sinks for maximum heat dissipation.
    • Anti-UV Clear Polycarbonate Ridged Lens for 100% light transmission and to prevent discoloration.
    • Available with integrated Occupancy, Bi-Level Dimming, Daylight Sensor with Remote Controller options.
    • 7 year /75000 hour warranty, and listed with all applicable bodies for safety and performance to qualify for energy-efficient LED lighting rebates.
    Model: FI-UFO-200W-G4 Categories: , , Tag:

    Applications

    Premium indoor luminaire for hanging or pendant mounting in high ceiling spaces above 25 feet. Suitable for gymnasiums, warehouses, manufacturing, packaging, storage, aisles, and covered decks.

    Construction

    Manufactured for durability using solid heavy duty die cast aluminum housing with anti-UV polyester coating to resist water, salt, corrosion, discoloration, and scratching. Resistant to shock and vibration. IP65 Wet Location rated for dust tight, water jets: IEC 60529.

    Electrical

    Input voltage 120-277V with 0-10V Continuous Dimming. Operating temperatures -40°F to 113°F (-40°C to 45°C).

    Mounting

    Includes a Hook Mount and Securing Screw and integrated 6.5-FT Cords. Pendant mounting threads included.

    Optics

    Anti-UV Clear Polycarbonate Ridged Lens standard. Prismatic Acrylic Reflector with 90 Degree Beam Spread available.

    Controls

    Optional integrated Photocell with Microwave Bi-Level Dimming Motion Detection Sensor cap and Remote Control.

    Listings

    UL certified to meet US and Canadian standards. FCC, and RoHS compliant. Listed to qualify for energy-efficient LED lighting rebates.

    Warranty

    7 yr /75K hrs.

    Available Color Temperatures

    4000K

    5000K

    5000K

    Specifications

    Additional information

    Energy DataInput Voltage: 120-277V
    Input Frequency: 50/60 Hz
    Wattage: 200W
    Power Factor: >0.9
    THD: ≤15%
    Operating Temperature: -40°F to 113°F (-40°C to 45°C)
    Lighting DataLumens: 30000
    Efficacy: 150 lm/W
    CCT: 4000K, 5000K
    Dimmable: 0-10V
    CRI: Ra≥80
    L70: 75000 hrs
    Physical DataColor: Black
    Lens Type: Polycarbonate
    Diffuser: Clear Ridged
    Rating: IP65 Wet Location
    Warranty: 7yr/75K
