ETH-TR-14-30W

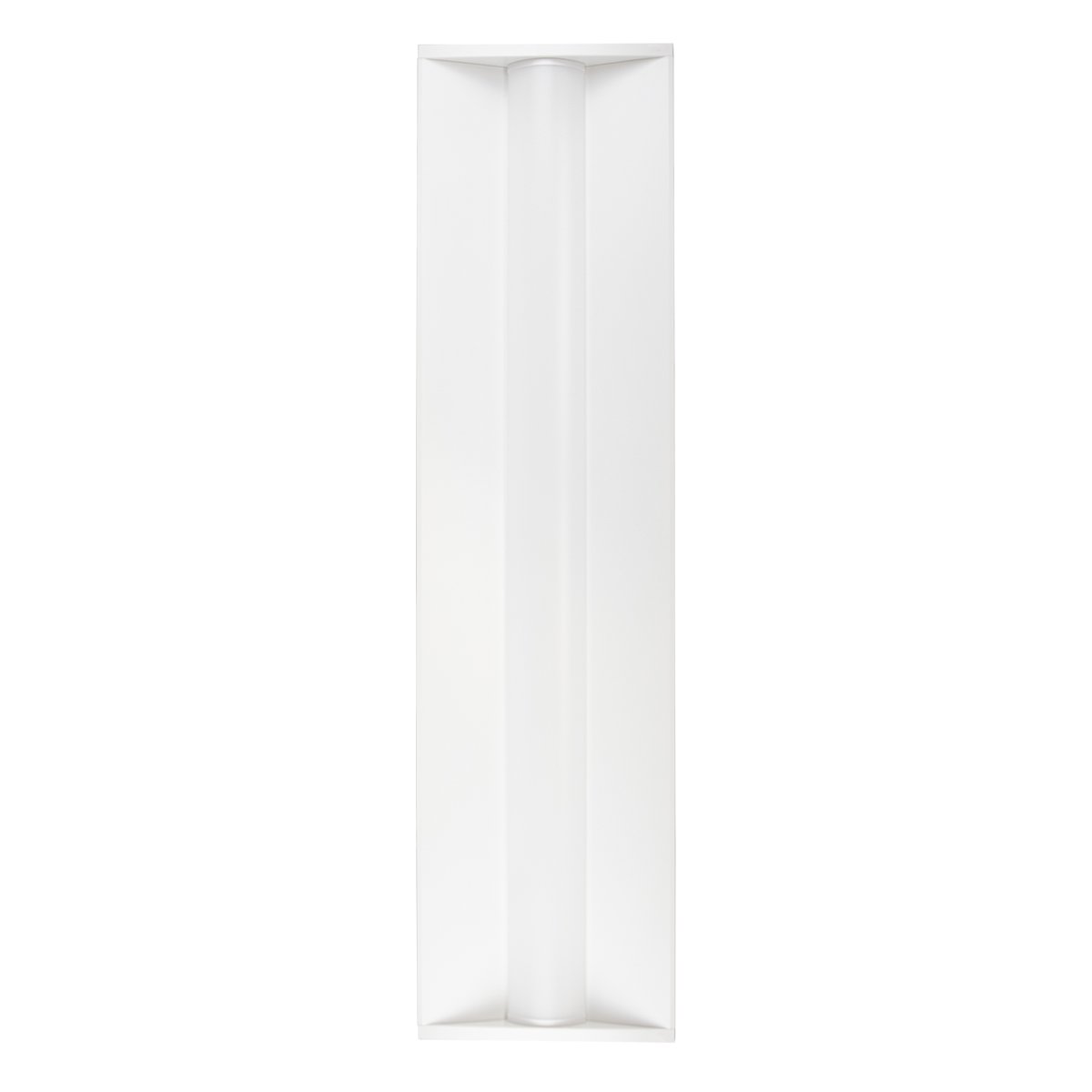

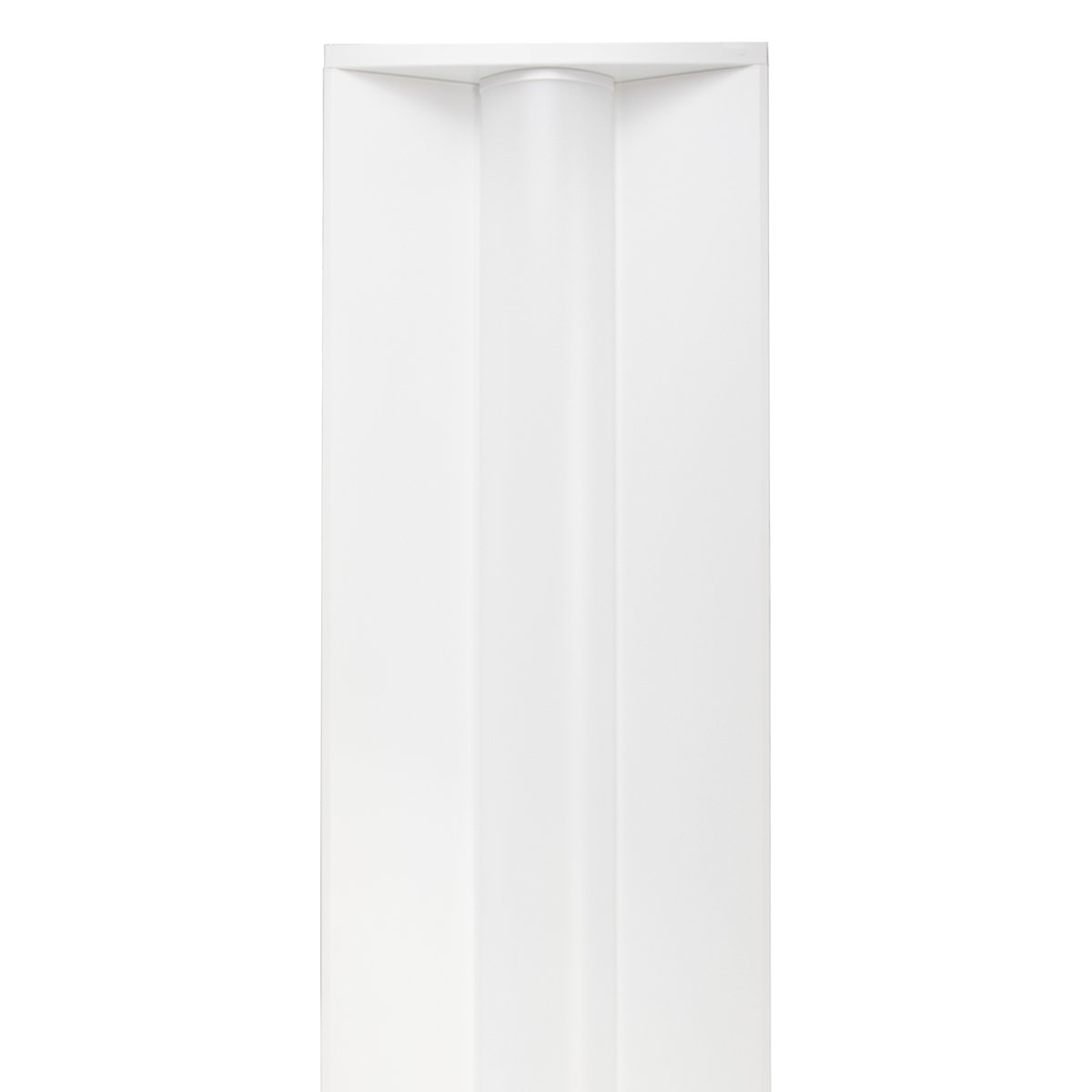

LED Troffer, 1x4, 30W, White, 0-10V Dimmable (120-277V)

In stock

  • The ETH-TR-14-30W is a longer-lasting industry-standard 1×4, 30W LED Single-Basket Troffer luminaire producing 127 lumens per watt.
  • It has anti-UV Frosted Polycarbonate Lens for even light transmission and to prevent discoloration.
  • Designed with wide heat-sinks for maximum heat dissipation.
  • Available with integrated Occupancy Sensor option.
  • Suitable for commercial locations: general indoor, lobbies, offices, meeting rooms, restrooms, hallways, and work-stations.
  • 7 year /75000 hour warranty, and listed with all applicable bodies for safety and performance to qualify for energy-efficient LED lighting rebates.
Model: ETH-TR-14-30W Applications: , Group:

Available Color Temperature

4000K

4000K

Optional Controls & Sensors

    • OSF10-I0W

      LEVITON™ PIR Fixture Mount Integral Occupancy Sensor (120-277V)

    • IP710-LFZ

      LEVITON™ 0-10V Wired Slide Dimmer (120-277V)

    • ESRPU

      EnOcean EasyFit™ Single-Rocker Pad for Self-Powered Wireless Switch

    • EDRPU

      EnOcean EasyFit™ Double-Rocker Pad for Self-Powered Wireless Switch

    • ELLSU

      EnOcean EasyFit™ Ceiling Mounted Wireless Light Level Sensor (Daylight Harvesting Module)

    • EOSCU

      EnOcean EasyFit™ Ceiling Mounted Wireless Occupancy Sensor (CR2032 Battery Optional)

    • EOSWU

      EnOcean EasyFit™ Wall Mounted Wireless Occupancy Sensor (CR2032 Battery Optional)

    • LEDDU

      EnOcean EasyFit™ Wireless LED Zone Controller 0-10V without Relay - 12V Aux Input

    • LEDRU

      EnOcean EasyFit™ Wireless LED Relay Zone Controller with 0-10V Dimming Capability

    • NWC 300U

      EnOcean EasyFit™ Navigan™ Wireless Commissioner

    Technical Information

    Additional information

    Input Voltage

    120-277V
    Size

    1×4
    Wattage

    30W
    Efficacy

    127 lm/W
    CCT

    4000K, 5000K
    Lumens

    3810
    Dimmable

    0-10V
    Color

    White
    Diffuser

    Frosted
    Lens Type

    Polycarbonate
    IP Rating

    Dry Location
    Input Frequency

    50/60 Hz
    CRI

    Ra>83
    THD

    <20%
    Power Factor

    >0.9
    L70

    75000 hrs
    Operating Temperature

    -4°F to 104°F (-20°C to 40°C)
    Dimensions

    47.75"L x 12.00"W x 2.75"H
    Net Weight

    9.90 lbs
    Warranty

    7yr/75K
