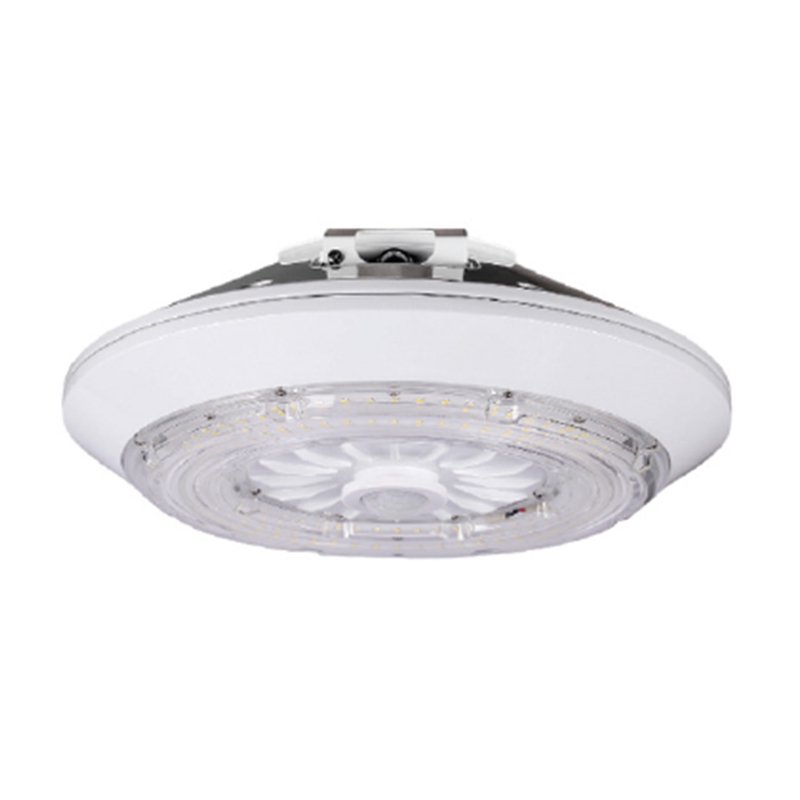

WSD-UPGC07W

WSD SERIES - LED Round Canopy Light plus Ambient Up Light, 70W, 140 lm/W, Wet Location, 1-10V Dimmable, Premium Outdoor Luminaire, Smart Sensor Ready (120-277V)

In stock

  • The WSD-UPGC07W is an industry-leading 70W LED Round Canopy Light luminaire plus Ambient Up Light producing 140 lumens per watt.
  • Wet Location rated and designed with multiple heat-sinks for maximum heat dissipation.
  • Anti-UV Clear Polycarbonate Lens for wide light transmission and to prevent discoloration.
  • Available with integrated Occupancy, Bi-Level Dimming, Daylight Sensor and Remote Controller options.
  • 5 year /50000 hour warranty, and listed with all applicable bodies for safety and performance to qualify for energy-efficient LED lighting rebates.

SPEC SHEET | MORE FILES

Model: WSD-UPGC07W Categories: , Tag:

Applications

Premium outdoor luminaire for surface mounting in ceiling spaces less than 25 feet. Suitable for general storage, cold storage, parking garages, and canopies.

Construction

Manufactured for weather-proof durability using solid heavy duty die cast aluminum housing with anti-UV polyester coating to resist water, salt, corrosion, discoloration, and scratching. Wet Location rated.

Electrical

Input voltages 120-277V with 1-10V Continuous Dimming. Operating temperatures -22°F to 113°F (-30°C to 45°C).

Mounting

Surface mounted installation.

Optics

Anti-UV Clear Prismatic Polycarbonate Lens.

Controls

Fixture integrated Microwave Bi-Level Dimming Sensor with Photocell and Remote Controller available.

Emergency

Externally Attached, 8W, 90 Minute Emergency Battery Backup available

Listings

UL certified to meet US and Canadian standards. FCC, and RoHS compliant. Listed to qualify for energy-efficient LED lighting rebates.

Warranty

5 yr /50K hrs

Available Color Temperature

5000K

5000K

Optional Controls & Sensors

  • BRI810-M-M8

    Installed PIR Photocell and Microwave Dimming Sensor

  • RC-100 Remote

    Remote Controller to Program BRI823 Sensor

Specifications

Additional information

Energy DataInput Voltage: 120-277V
Input Frequency: 50/60 Hz
Wattage: 70W
Power Factor: >0.9
Operating Temperature: -22°F to 113°F (-30°C to 45°C)
Lighting DataLumens: 9800
Efficacy: 140 lm/W
CCT: 5000K
Dimmable: 1-10V
CRI: Ra≥70
L70: 50000 hrs
Physical DataColor: White
Lens Type: Polycarbonate
Diffuser: Clear
Rating: Wet Location
Warranty: 5yr/50K
