ETH-TTRK-22-30W
Sold Out
Roll over image to zoom in
Click to open expanded view

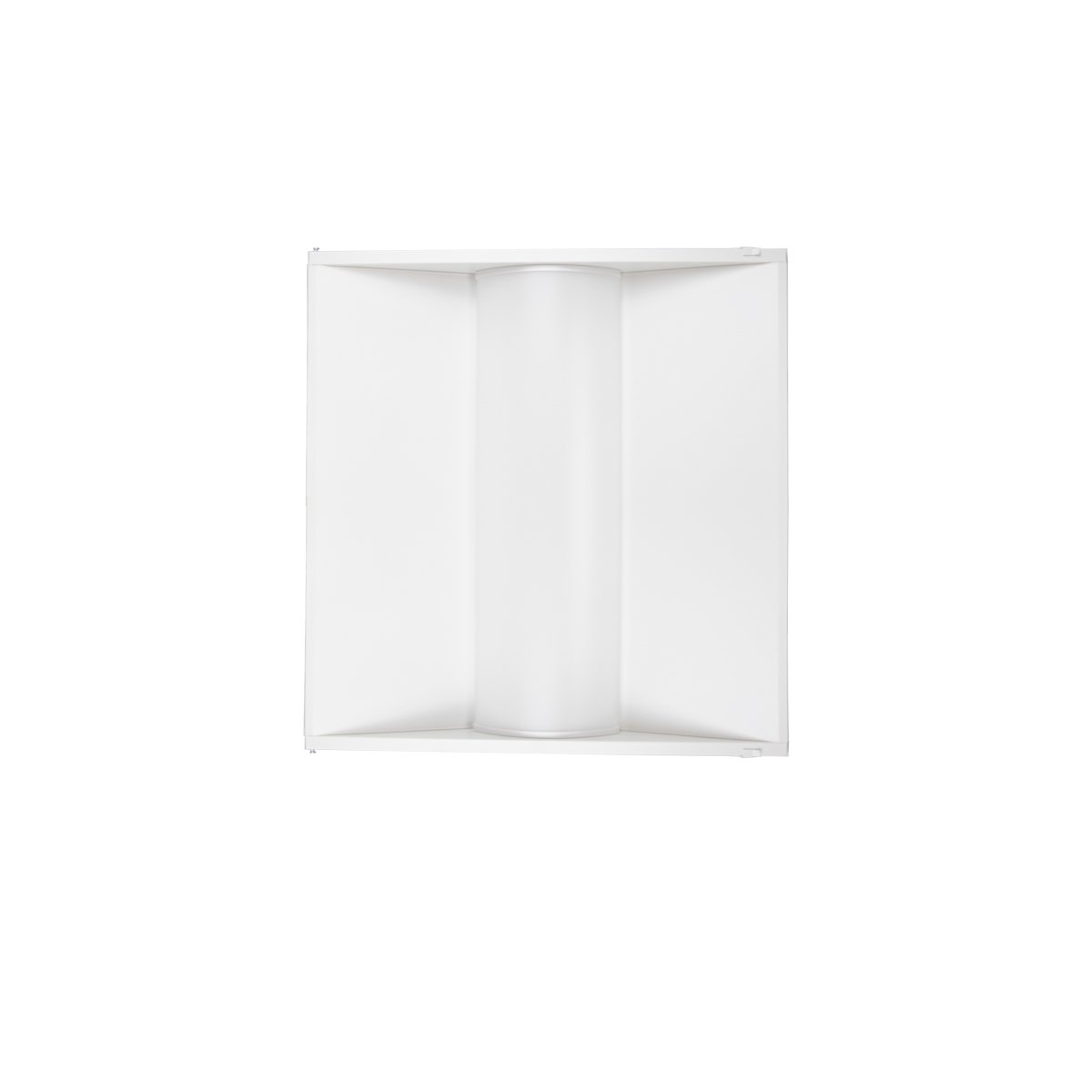

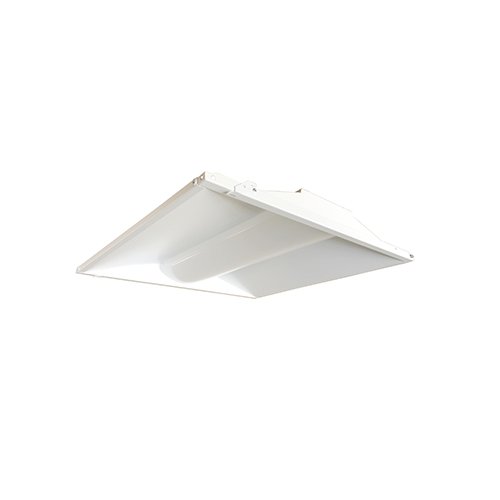

ETH-TTRK-22-30W

    9 SERIES - LED Tunable Troffer Retrofit Kit, 2x2, 30W Max, 130 lm/W, Select 3X-CCT and 3X-Wattages, 0-10V Dimmable, Premium Indoor Retrofit, Smart Sensor Ready. (120-277V)

    Out of stock

    • The ETH-TTRK-22-30W is an industry-leading 2×2, Tunable LED Single-Basket Troffer Retrofit Kit producing 130 lumens per watt.
    • 9X-Total Tunable Setting Combinations: 3X-Wattage Tunable (Select between 20W, 25W, 30W) and 3X-CCT Tunable (Select between 3500K, 4000K, 5000K)
    • Includes a retrofit frame plates and self-tapping screws for easy mounting into existing fluorescent troffers and T-Bars.
    • Anti-UV Frosted Polycarbonate Lens for even light transmission and to prevent discoloration.
    • Designed with wide heat-sinks for maximum heat dissipation.
    • Available with integrated Occupancy Sensor option.
    • 7 year /75000 hour warranty, and listed with all applicable bodies for safety and performance to qualify for energy-efficient LED lighting rebates.
    Model: ETH-TTRK-22-30W Categories: , Tag:

    Applications

    Premium indoor retrofit kit for troffers suitable for general indoor commercial spaces, lobbies, offices, meeting rooms, schools, retail stores, restrooms, hallways, and work-stations.

    Construction

    Manufactured for durability using aluminum sheet housing with satin coating to resist corrosion, discoloration, and scratching. Center-Basket Design. For use in Dry Locations.

    Electrical

    Input voltage 120-277V models with 0-10V Continuous Dimming. Includes 3X-CCT and 3X-Wattage Tuning Switches. Operating temperatures -4°F to 104°F (-20°C to 40°C).

    Mounting

    Integrated retrofit kit for existing 2×2 troffers with Self-Tapping Screws. Includes Side and End T-Bar Frame Plates.

    Optics

    Anti-UV Frosted Prismatic Polycarbonate Lens.

    Listings

    UL certified to meet US and Canadian standards. FCC, CE and RoHS compliant. Listed to qualify for energy-efficient LED lighting rebates.

    Warranty

    7 yr /75K hrs.

    Tunable Color Temperatures

    3500K

    3500K

    4000K

    4000K

    5000K

    5000K

    Specifications

    Additional information

    Energy DataInput Voltage: 120-277V
    Input Frequency: 50/60 Hz
    Wattage: 3-Wattage Select, 20W, 25W, 30W
    Power Factor: >0.9
    THD: ≤10%
    Operating Temperature: -4°F to 104°F (-20°C to 40°C)
    Lighting DataLumens: (2600, 3250, 3900)
    Efficacy: 130 lm/W
    CCT: 3-CCT Select, 3500K, 4000K, 5000K
    Dimmable: 0-10V
    CRI: Ra≥82
    L70: 75000 hrs
    Physical DataSize: 2×2
    Color: White
    Lens Type: Polycarbonate
    Diffuser: Frosted
    Warranty: 7yr/75K
