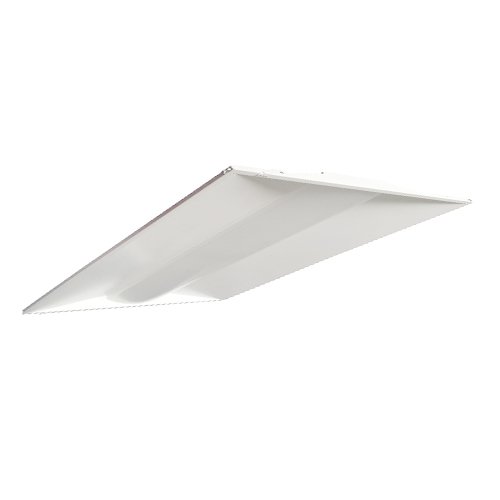

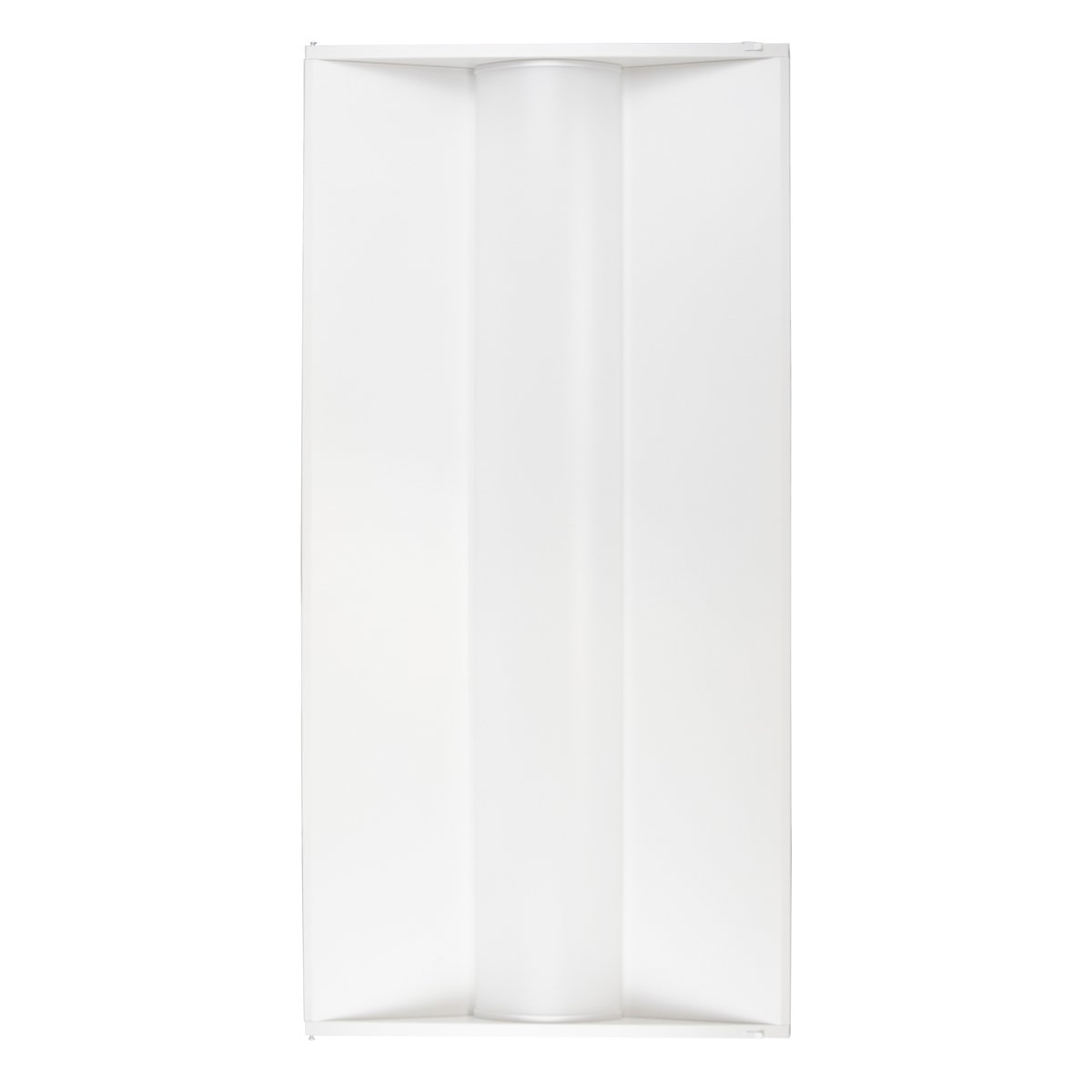

LED 9X Tunable (3-Wattage + 3-CCT) Single-Basket Troffer Retrofit Kit, 2x4, White, 0-10V Dimmable (120-277V)
- The ETH-TTRK-24-34W is an industry-leading 2×4, 9X Tunable LED Single-Basket Troffer Retrofit Kit producing 130 lumens per watt.
- 9X Total Tunable Setting Combinations: 3X Tunable (Select between 25W, 30W, 34W) and 3X Tunable (Select between 3500K, 4000K, 5000K)
- Includes a retrofit door and adjustable brackets for easy mounting into existing fluorescent troffers and T-Bars.
- It has anti-UV Frosted Polycarbonate Lens for even light transmission and to prevent discoloration.
- Designed with wide heat-sinks for maximum heat dissipation.
- Available with integrated Occupancy Sensor option.
- Suitable for commercial locations: general indoor, lobbies, offices, meeting rooms, restrooms, hallways, and work-stations.
- 7 year /75000 hour warranty, and listed with all applicable bodies for safety and performance to qualify for energy-efficient LED lighting rebates.
Tunable Color Temperatures
Optional Controls & Sensors
3X Tunable (25W, 30W, 34W)
3150 (25W), 3780 (30W), 4284 (34W)
-4°F to 122°F (-20°C to 50°C)
45.50"L x 22.12"W x 2.87"H
