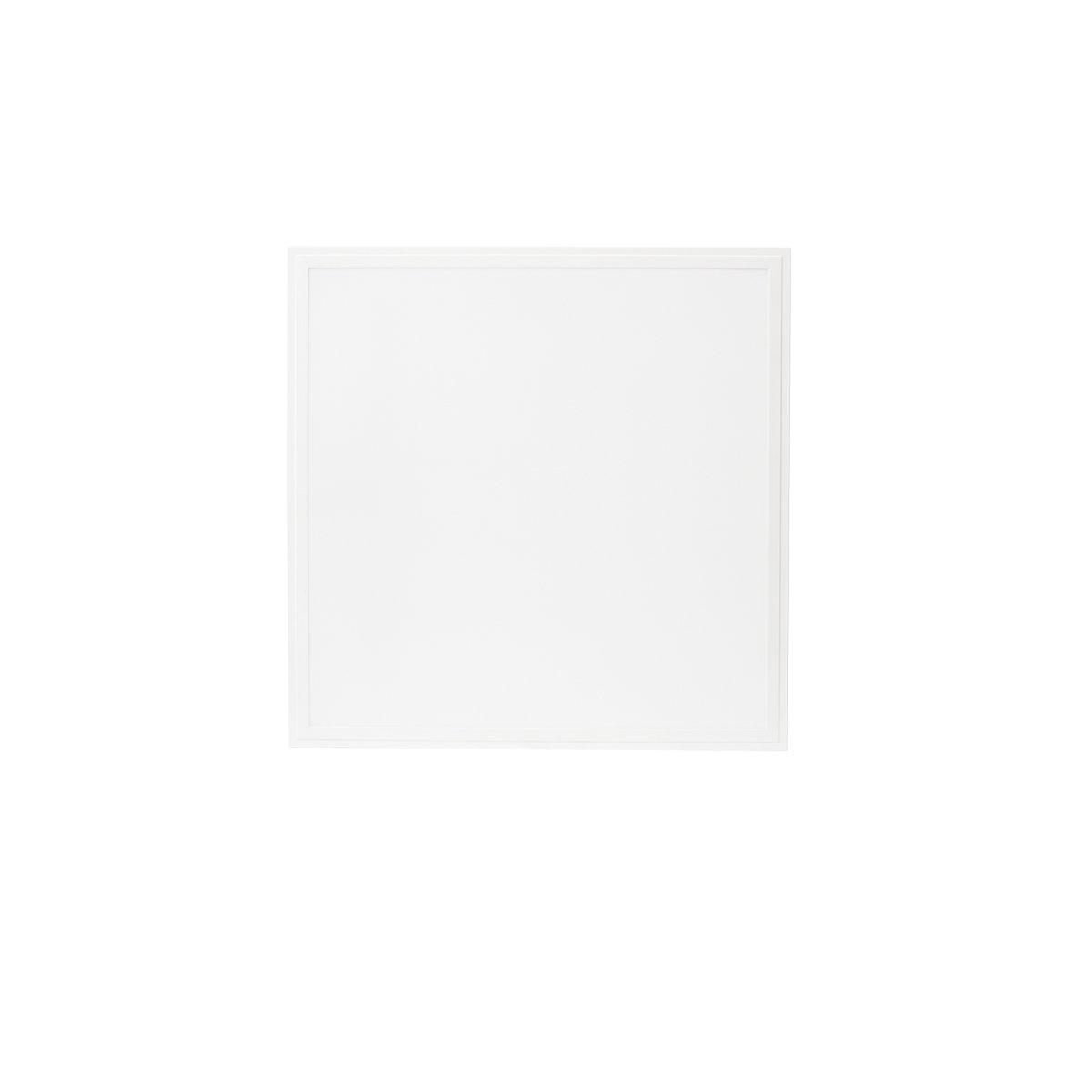

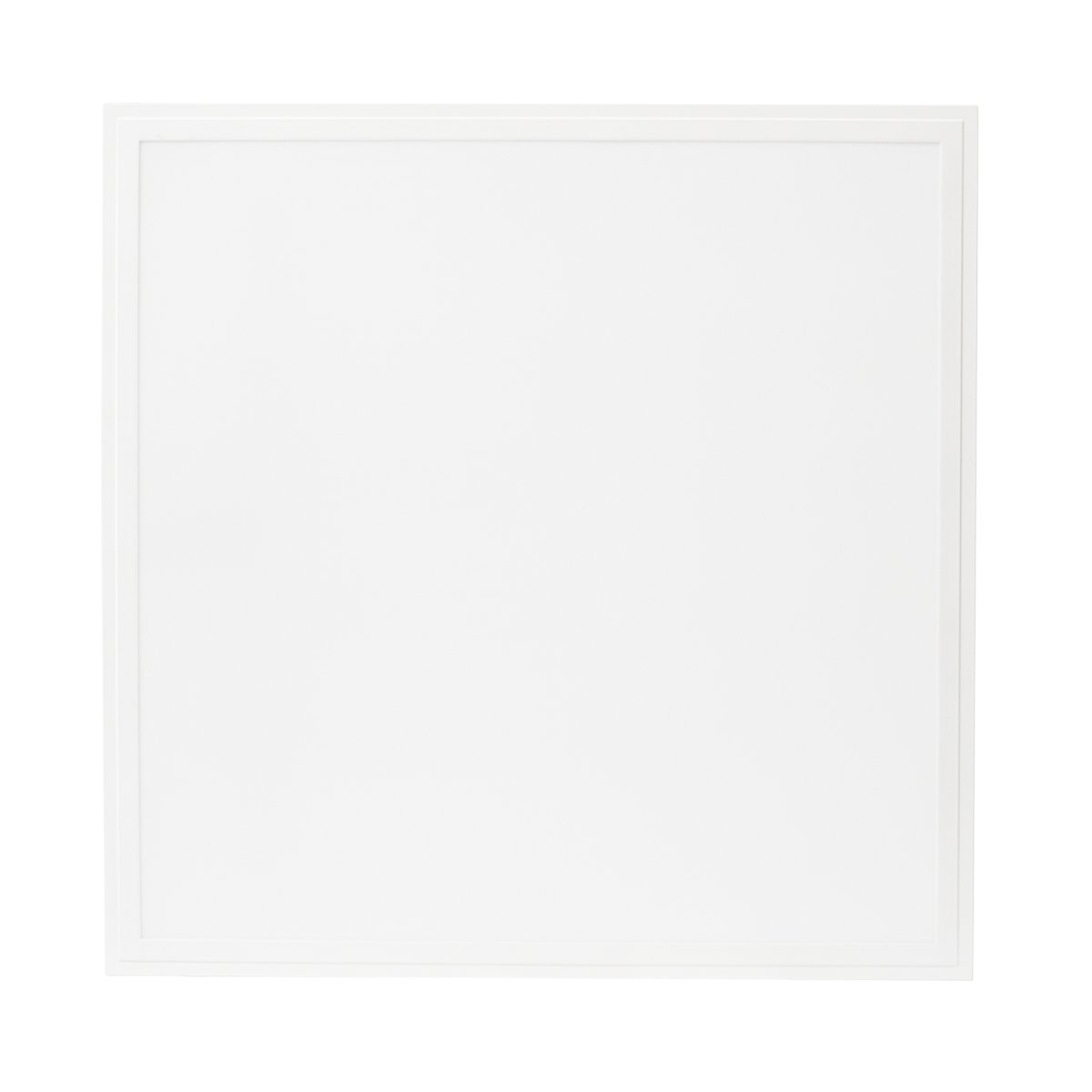

ETH-PLBT-22-XXW

    9 SERIES - LED Tunable Back-Lit Panel, 2x2, 40W Max, 130 lm/W, Select 3X-CCT and 3X-Wattages, 0-10V Dimmable, Premium Indoor Luminaire, Smart Sensor Ready. (120-277V)

    Out of stock

    • The ETH-PLBT-22-XXW is an industry-leading 2×2, Tunable 40W Max, LED Back-Lit Panel luminaire producing 130 lumens per watt.
    • 9X-Total Tunable Setting Combinations: 3X-Wattage Tunable (Select between 30W, 35W, 40W) and 3X-CCT Tunable (Select between 3500K, 4000K, 5000K)
    • Anti-UV Frosted Polycarbonate Lens for even light transmission and to prevent discoloration.

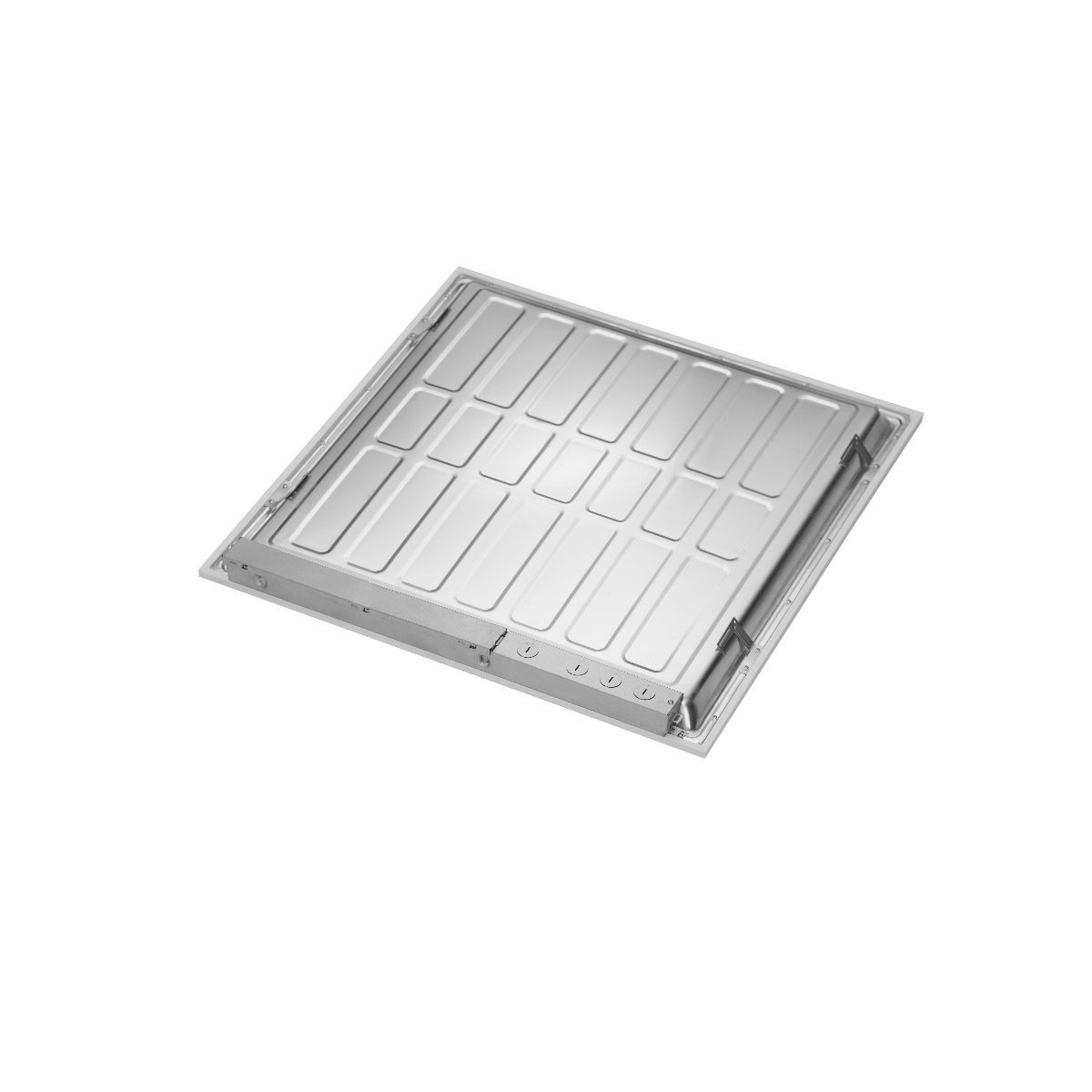

    • Designed with wide heat-sinks for maximum heat dissipation.
    • 7 year /75000 hour warranty, and listed with all applicable bodies for safety and performance to qualify for energy-efficient LED lighting rebates.
    Model: ETH-PLBT-22-XXW Categories: , , Tag:

    Applications

    Premium indoor luminaire suitable for general indoor commercial spaces, lobbies, offices, meeting rooms, schools, retail stores, restrooms, hallways, and workstations.

    Construction

    Manufactured for durability using aluminum sheet housing with satin coating to resist corrosion, discoloration, and scratching. For use in Dry Locations.

    Electrical

    Input voltage 120-277V models with 0-10V Continuous Dimming. Includes 3X-CCT and 3X-Wattage Tuning Switches. Operating temperatures -4°F to 104°F (-20°C to 40°C).

    Mounting

    Recessed T-Bar Ceiling Mount.

    Optics

    Anti-UV Frosted Prismatic Polycarbonate Lens.

    Listings

    UL certified to meet US and Canadian standards. FCC, CE and RoHS compliant. Listed to qualify for energy-efficient LED lighting rebates.

    Warranty

    7 yr /75K hrs.

    Tunable Color Temperatures

    3500K

    3500K

    4000K

    4000K

    5000K

    5000K

    Optional Controls & Sensors

      • LEVITON IP710-LFZ

        LEVITON™ 0-10V Wired Slide Dimmer (120-277V)

      • Sold Out

        LEDRU

        EnOcean EasyFit™ Wireless LED Relay Zone Controller with 0-10V Dimming Capability, 902 MHz Frequency

      • Sold Out

        LEDDU

        EnOcean EasyFit™ Wireless LED Zone Controller 0-10V without Relay - 12V Aux Input, 902 MHz Frequency

      • Sold Out

        EOSCU

        EnOcean EasyFit™ Ceiling Mounted Wireless Occupancy Sensor (CR2032 Battery Optional), 902 MHz Frequency

      • Sold Out

        EOSWU

        EnOcean EasyFit™ Wall Mounted Wireless Occupancy Sensor (CR2032 Battery Optional), 902 MHz Frequency

      • Sold Out

        ELLSU

        EnOcean EasyFit™ Ceiling Mounted Wireless Light Level Sensor (Daylight Harvesting Module), 902 MHz Frequency

      • Sold Out

        ESRPU

        EnOcean EasyFit™ Single-Rocker Pad for Self-Powered Wireless Switch, 902 MHz Frequency

      • Sold Out

        EDRPU

        EnOcean EasyFit™ Double-Rocker Pad for Self-Powered Wireless Switch, 902 MHz Frequency

      • Sold Out

        NWC 300U

        EnOcean EasyFit™ Navigan™ Wireless Commissioner

      Specifications

      Additional information

      Energy DataInput Voltage: 120-277V
      Input Frequency: 50/60 Hz
      Wattage: 3-Wattage Select, 30W, 35W, 40W
      Power Factor: >0.9
      THD: ≤20%
      Operating Temperature: -4°F to 104°F (-20°C to 40°C)
      Lighting DataLumens: (3900, 4550, 5200)
      Efficacy: 130 lm/W
      CCT: 3-CCT Select, 3500K, 4000K, 5000K
      Dimmable: 0-10V
      CRI: Ra≥80
      L70: 75000 hrs
      Physical DataSize: 2×2
      Color: White
      Lens Type: Polycarbonate
      Diffuser: Frosted
      Warranty: 7yr/75K
