HG-HL-150WL5D-50K8023

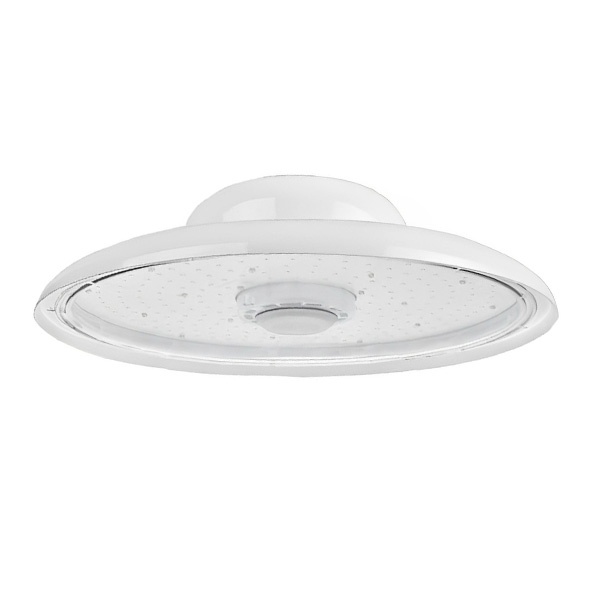

    NSF RATED SERIES - LED Wash Down UFO High Bay, 150W, 147 lm/W, IP66 Wet Location, 0-10V Dimmable, Premium Indoor Luminaire, Smart Sensor Ready. (120-277V)

    In stock

    • The HG-HL-150WL5D-50K8023 is an industry-leading heavy duty 150W LED Wash Down UFO High Bay luminaire producing 147 lumens per watt.
    • Includes a Hook Mount for hanging in high indoor ceiling spaces at or above 25 feet.
    • Optional Pendant Mount feature available for conduit mounting.
    • Rated IP66 Wet Location and designed for shock resistance with multiple heat-sinks for maximum heat dissipation.
    • NSF Rated Clear Polycarbonate Lens for clear light transmission and to prevent discoloration.
    • Available with Occupancy, Bi-Level Dimming and Motion Detection sensor with Remote options.
    • 5 year /50000 hour warranty, and listed with all applicable bodies for safety and performance to qualify for energy-efficient LED lighting rebates.

    SPEC SHEET | MORE FILES

    Model: HG-HL-150WL5D-50K8023 Categories: , , Tag:

    Applications

    Premium indoor luminaire for hanging or pendant mounting in high ceiling spaces above 25 feet. Suitable for gymnasiums, warehouses, manufacturing, packaging, storage, aisles, and covered decks.

    Construction

    Manufactured for durability using solid heavy duty die cast aluminum housing with anti-UV polyester coating to resist water, salt, corrosion, discoloration, and scratching. Resistant to shock and vibration. IP66 Wet Location rated for dust tight, water jets: IEC 60529.

    Electrical

    Input voltage 120-277V with 0-10V Continuous Dimming. Operating temperatures -40°F to 113°F (-40°C to 45°C).

    Mounting

    Includes a Hook Mount standard. Optional Pendant Mount feature for conduit mounting.

    Optics

    NSF Rated Clear Polycarbonate Lens.

    Controls

    Fixture Mounted PIR Photocell, Bi-Level Dimming, and Motion Detection sensor with Remote Control.

    Listings

    UL certified to meet US and Canadian standards. FCC, and RoHS compliant. Listed to qualify for energy-efficient LED lighting rebates.

    Warranty

    5 yr /50K hrs.

    Available Color Temperature

    5000K

    5000K

    Specifications

    Additional information

    Energy DataInput Voltage: 120-277V
    Input Frequency: 50/60 Hz
    Wattage: 150W
    Power Factor: >0.9
    THD: ≤10%
    Operating Temperature: -40°F to 113°F (-40°C to 45°C)
    Lighting DataLumens: 22227
    Efficacy: 147 lm/W
    CCT: 5000K
    Dimmable: 0-10V
    CRI: Ra≥80
    L70: 50000 hrs
    Physical DataColor: White
    Lens Type: Polycarbonate
    Diffuser: NSF Rated, Clear
    Rating: IP66 Wet Location
    Warranty: 5yr/50K
