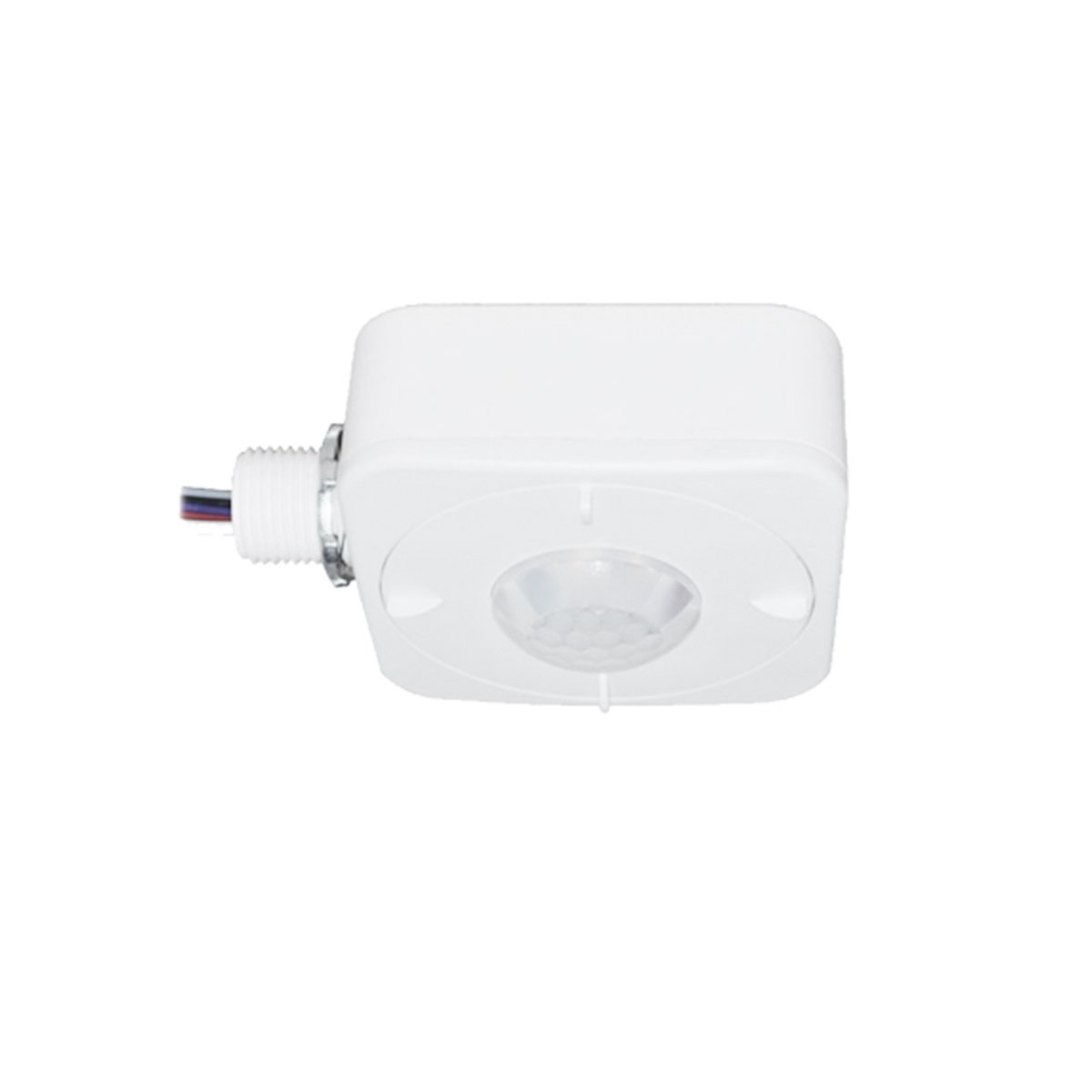

BRI819P-B-D
PIR Bi-Level Dimming and Daylight Harvesting Sensor, Max Load 600W (120-277V), IP20 Dry Location, Available as an installed option.
- Bi-Level Dimming and Daylight Harvesting Sensor for CP, MCP Series LED Canopy Lights and VHO Series LED Vapor Tights.
Technical Information
Additional information
| Input Voltage | 120-277V |
|---|---|
| Color | White |
| IP Rating | Dry Location, IP20 Dry Location |
| Input Frequency | 50/60 Hz |
| Switching Capacity | 1200W@277V (Electronic Ballasts), 800W@120V, Max |
| Mounting Height | Max 24-FT @LW1, Max 40-FT @LS2 |
| Detection Range | Max.ø 30-FT @25-FT Height, Max.ø 30-FT @40-FT Height |
| Hold Time | 1 min, 10 min, 10s, 15 min, 20 min, 30 min, 5 min, 60 min |
| Daylight Treshhold | 10 Lux, 100 Lux, 30 Lux, 300 Lux, 50 Lux, 500 Lux, Disable |
| Sensor Frequency | Passive Infrared |
| Operating Temperature | -40°F ~ 167°F (-40°C ~ 75°C) |
| Dimensions | 4.00"L x 3.20"W x 1.70" H |
| Warranty | 5yr/50K |
