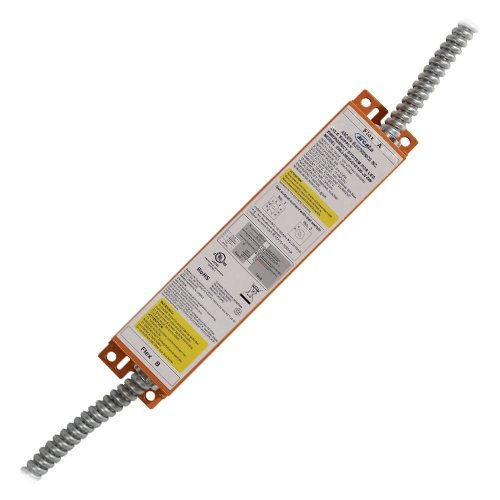

ARCATA™ External Install - Emergency 90-min 16W Battery Backup and 25W Driver Combo, 1500mAH, 9.6V, 24 hr Recharge (90-305V)
- EXTERNALLY INSTALLED – The EMJ-0825-010/105-J2-08W16W is a 90-min backup battery and driver combo for external installation with LED Luminaires.
- Includes Programmable Constant Current.
- Open Circuit and Short Circuit Protection.
- No PCBs
- Sound Rated A
- 5 year /50000 hour warranty, and listed with all applicable bodies for safety and performance.
|Energy Data||Input Voltage: 90-305V|
Input Current: 150mA Max
Input Frequency: 50/60 Hz
Recharge Power: 16W Max
Standby Power: 0.4 ~ 0.8W
Recharge Time: 48 Hours Max
Time to Light: 0.3 Seconds Detection Emergency
Output Current: 100 ~ 1050mA
Wattage: 25W Max
Operating Temperature: 50°F ~ 122°F (10°C ~ 50°C)
Battery Capacity: 6Ah
|Physical Data||Battery Type: LiFePO4 9.6V|
Red Lead: 3A, 90V
White /Black Lead: 100W Max
