HB011-PDX

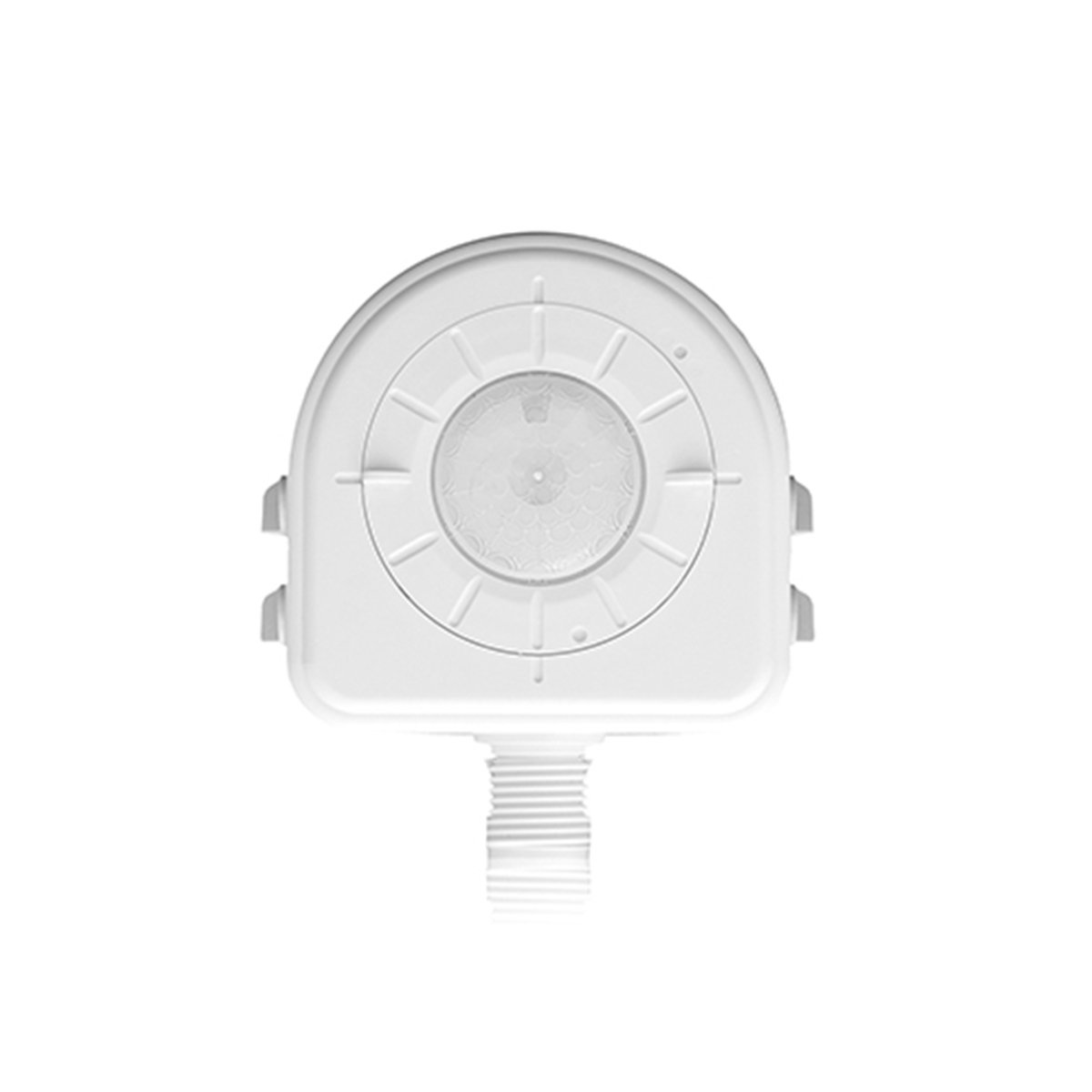

LEVITON™ PIR Fixture Mount, Dimming Sensor with Daylight Harvesting (120-230-277-347V)
- High Bay Fixture Mount Occupancy Sensor lighting control with Daylight Harvesting– PIR technology, Single relay with one (1-10VDC sinking current) control line for use to connect directly to low voltage control ballast.
- Fixture Mount Passive Infrared High/Low Bay Occupancy Sensor, Time Delay: 30s-30m, includes two (2) interchangeable, adjustable 360° lenses, the high bay PIR lens provides 1.5:1 spacing to mounting height coverage for 21-40 ft, the low bay lens provides 2:1 spacing to mounting height coverage for 13-20 ft, 120-230-277 or 347VAC
- 1-100% continuous dimming control specifically designed for LED fixture control
- Suitable for use in standard and cold storage applications
- Visual RGB LED indicators for device status and troubleshooting
- Alternating relay software for increased lamp life
- Meets energy code requirements for ASHRAE 90.1 and Title 24 for electronic ballast loads 120/277V
Technical Information
Additional information
| Input Voltage | 120V, 120-277V, 120-230-277-347V |
|---|---|
| Color | White |
| Input Frequency | 50/60 Hz |
| Switching Capacity | 800VA@120V~1500VA@347V (Fluorescent Ballasts), Max |
| Mounting Height | 25-FT (Low Bay Lens), 40-FT (High Bay Lens), Max |
| Detection Range | Max.ø 30-FT @40-FT Height |
| Hold Time | 30s~30 min |
| Sensor Frequency | Passive Infrared |
| Operating Temperature | 14°F ~ 160°F (-10°C ~ 71°C) |
| Dimensions | 4.44"L x 4.34"W x 1.58"D |
| Warranty | 5yr/50K |
