MHB02 140W [480V]

MHB02 SERIES - LED UFO High Bay, 140W, 136 lm/W, IP65 Wet Location, 0-10V Dimmable, Premium Indoor Luminaire, Smart Sensor Ready. (347-480V)

In stock

  • The MHB02 140W [480V] is a higher-lumen output 140W (480V) LED UFO High Bay luminaire producing 136 lumens per watt.

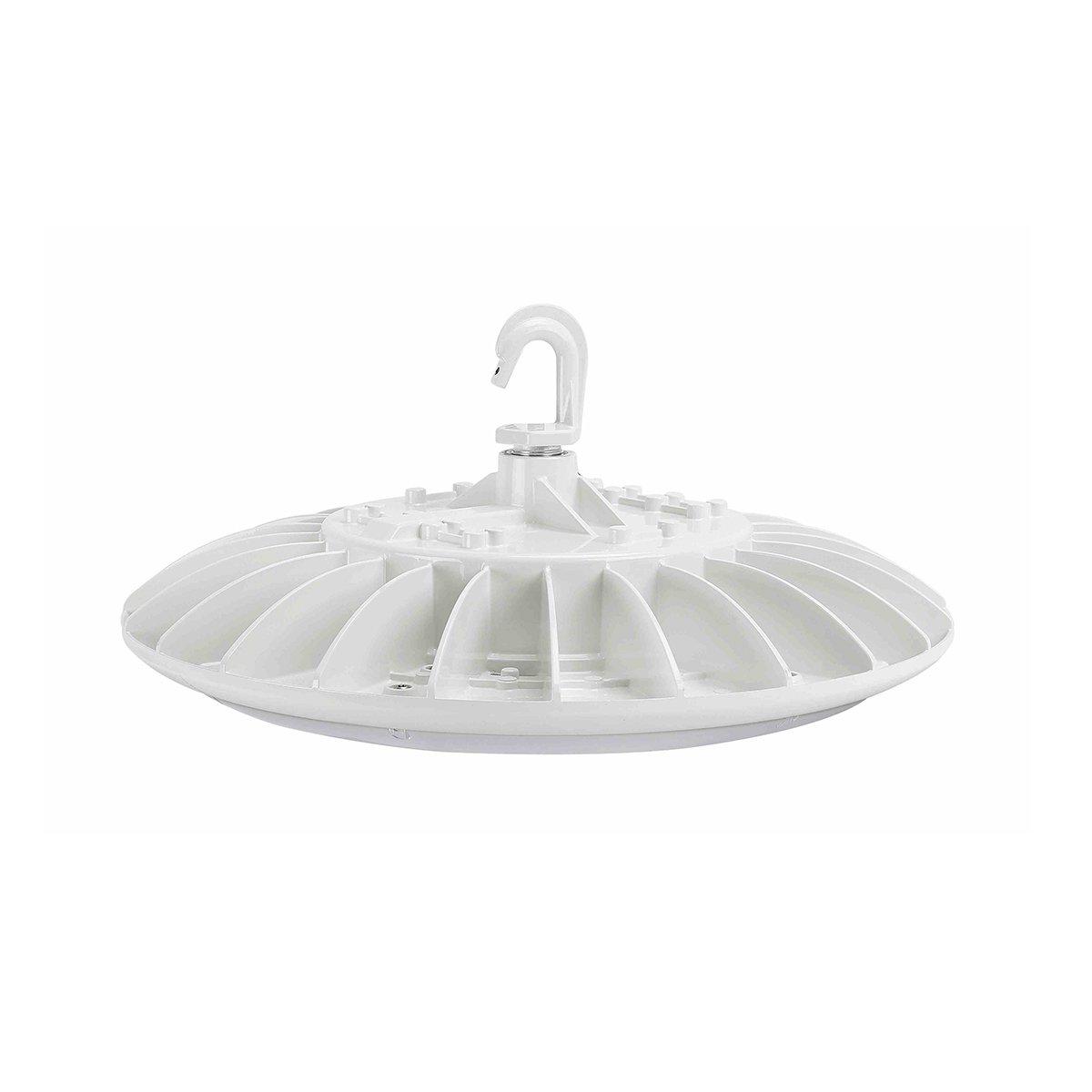

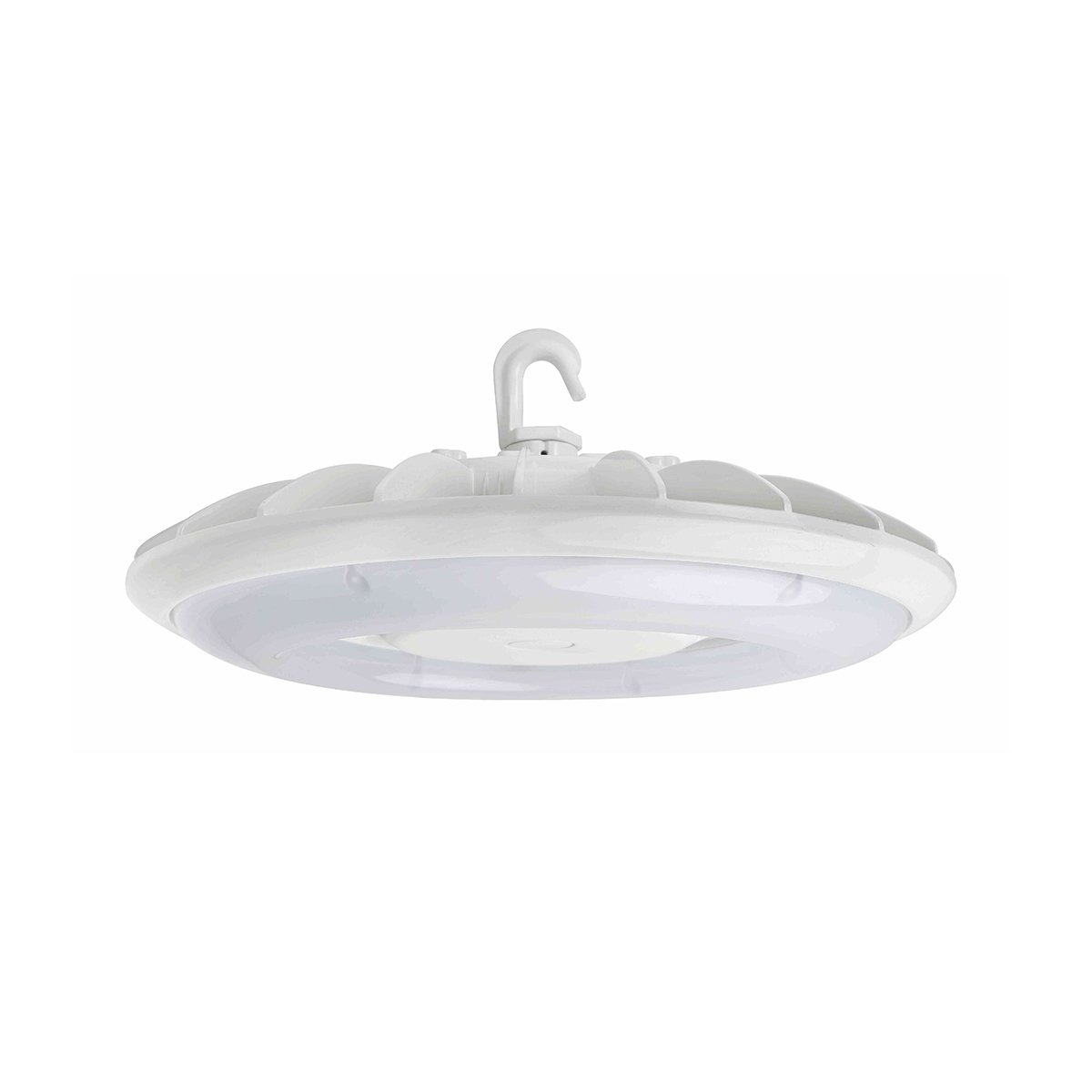

  • Includes a Hook Mount, or Ring Mount for hanging in high indoor ceiling spaces at or above 25 feet.
  • Optional U-Mount available for surface mounting in white.
  • Rated IP65 Wet Location and designed for shock resistance with multiple heat-sinks for maximum heat dissipation.

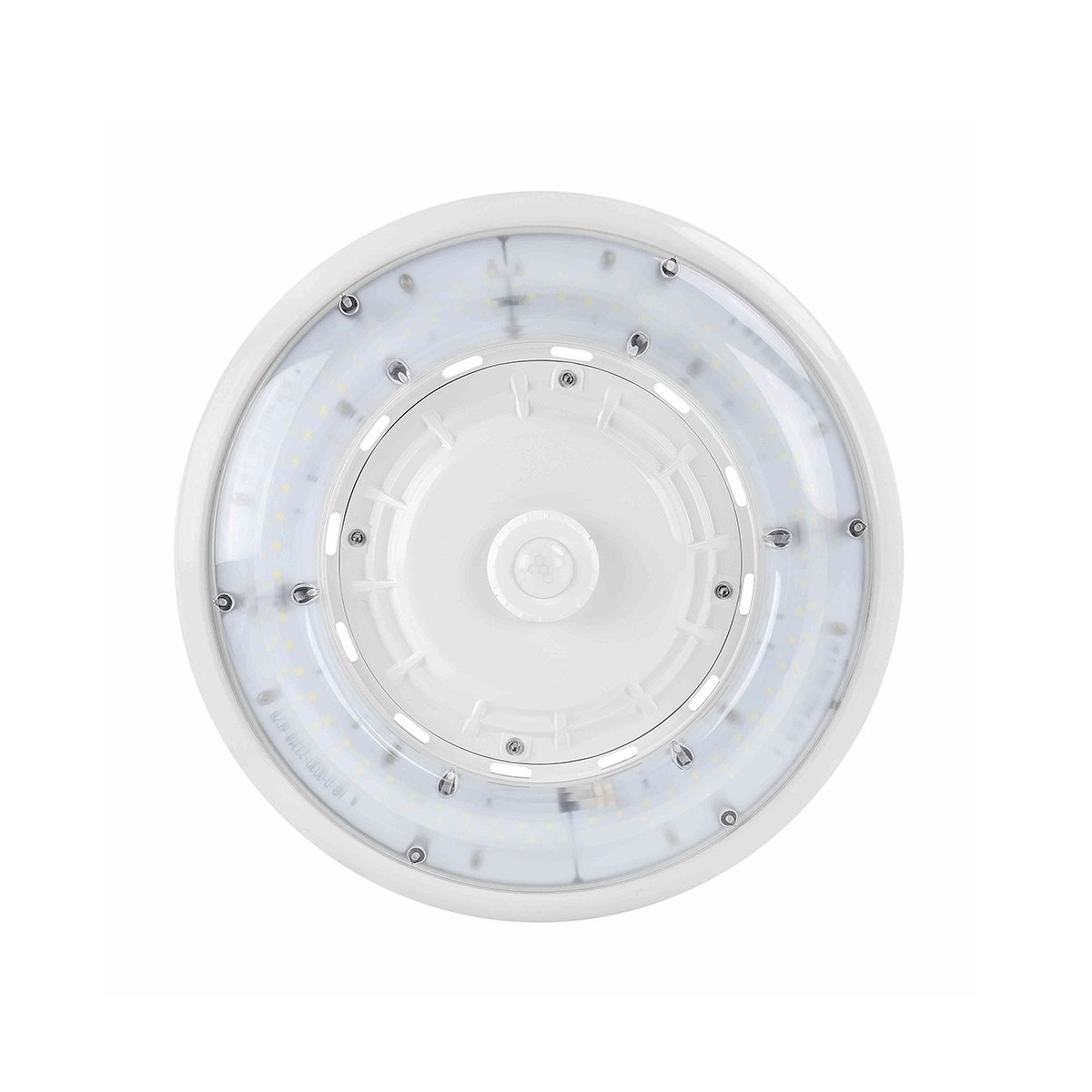

  • Anti-UV Frosted Polycarbonate Lens for even light transmission and to prevent discoloration.
  • Available with Occupancy, Bi-Level Dimming, Daylight and Sensor Program Remote options.
  • 5 year /50000 hour warranty, and listed with all applicable bodies for safety and performance to qualify for energy-efficient LED lighting rebates.

SPEC SHEET | MORE FILES

Model: MHB02 140W [480V] Applications: , , Group:

Applications

Premium indoor luminaire for hanging, surface or pendant mounting in high ceiling spaces above 25 feet. Suitable for gymnasiums, warehouses, manufacturing, packaging, storage,
aisles, and covered decks.

Construction

Manufactured for durability using solid heavy duty die cast aluminum housing with anti-UV polyester coating to resist water, salt, corrosion, discoloration, and scratching. IP65 Wet Location rated for dust tight, water jets: IEC 60529.

Electrical

Input voltage 347-480V models with 0-10V Continuous Dimming. Operating temperatures -40°F to 131°F (-40°C to 55°C).

Mounting

Includes a Hook Mount standard. Optional Pendant Mount feature for conduit mounting.

Optics

Anti-UV Frosted Polycarbonate Lens.

Controls

Fixture Bracket Mounted PIR Photocell, Bi-Level Dimming, and Motion Detection sensor with Remote Control.

Listings

UL certified to meet US and Canadian standards. FCC, CE and RoHS compliant. Listed to qualify for energy-efficient LED lighting rebates.

Warranty

5 yr /50K hrs.

Available Color Temperatures

5000K

5000K

Optional Controls & Sensors

  • LEDRU

    EnOcean EasyFit™ Wireless LED Relay Zone Controller with 0-10V Dimming Capability, 902 MHz Frequency

  • LEDDU

    EnOcean EasyFit™ Wireless LED Zone Controller 0-10V without Relay - 12V Aux Input, 902 MHz Frequency

  • EOSCU

    EnOcean EasyFit™ Ceiling Mounted Wireless Occupancy Sensor (CR2032 Battery Optional), 902 MHz Frequency

  • EOSWU

    EnOcean EasyFit™ Wall Mounted Wireless Occupancy Sensor (CR2032 Battery Optional), 902 MHz Frequency

  • ELLSU

    EnOcean EasyFit™ Ceiling Mounted Wireless Light Level Sensor (Daylight Harvesting Module), 902 MHz Frequency

  • ESRPU

    EnOcean EasyFit™ Single-Rocker Pad for Self-Powered Wireless Switch, 902 MHz Frequency

  • EDRPU

    EnOcean EasyFit™ Double-Rocker Pad for Self-Powered Wireless Switch, 902 MHz Frequency

  • NWC 300U

    EnOcean EasyFit™ Navigan™ Wireless Commissioner

  • BRI823

    Installed PIR Bi-Level Dimming Sensor with Photocell

  • RC-100 Remote

    Remote Controller to Program BRI823 Sensor

Specifications

Additional information

Energy DataInput Voltage: 347-480V
Input Frequency: 50/60 Hz
Wattage: 140W
Power Factor: >0.9
THD: ≤15%
Operating Temperature: -40°F to 131°F (-40°C to 55°C)
Lighting DataLumens: 19100
Efficacy: 136 lm/W
CCT: 5000K
Dimmable: 0-10V
CRI: Ra≥80
L70: 50000 hrs
Physical DataColor: White
Lens Type: Polycarbonate
Diffuser: Frosted
Rating: IP65 Wet Location
Warranty: 5yr/50K
